1/2″ overlay hinges are the most common overlay of cabinet hinge. These are used in face frame cabinets where the door covers a 1/2″ of the face frame all the way around the cabinet door. … These are used in face frame cabinets where the door covers a 1/2″ of the face frame all the way around the cabinet door.

What is a 1/2 inch overlay hinge?

1/2″ overlay hinges are the most common overlay of cabinet hinge. These are used in face frame cabinets where the door covers a 1/2″ of the face frame all the way around the cabinet door. … These are used in face frame cabinets where the door covers a 1/2″ of the face frame all the way around the cabinet door.

What size is full overlay hinge?

Here are the standards sizes for overlay hinges for framed cabinets: 1.27 cm (1/2″), 3.17 cm (1-1/4″). * A standard overlay is 1.27 cm (1/2″), whereas framed full overlay is 3.17 cm (1-1/4″). Frameless cabinets, often called “full overlay” or “European style cabinets”, generally have a thickness of 5/8″ or 3/4″.

What is a 1/4 overlay hinge?

When referring to an overlay door, it means the entire door lays on top of the cabinet frame. Overlays can come in a variety of sizes but in common applications we most often see a 1/2″ overlay or 1/4″ overlay. Although, where European Hinges are used there is a broader range of overlay sizes. … This is an overlay door.

How do you calculate overlay?

Another way to look at door overlay: If your door is 30″ wide and the opening is 28″ wide then then you could calculate your overlay as 30 minus 28 divided by 2 equals 1″. Divided by two because the overlay is measured on one edge, the hinged edge of the door.

How are demountable hinges measured?

Open the cabinet door and measure from the inside edge of the tape near the opening. You can also draw a faint line on the face frame with the edge of the door as the straight edge. Measure from the line to the edge of the opening to determine the overlay.

How do I know what size hinge I need?

In general, you’ll want to use one hinge for every 30 inches of door height. For example: Use two hinges for doors up to 60 inches tall. Use three hinges if the door is between 60 and 90 inches tall.

How do you measure for cabinet overlay doors?

Overlay refers to how much the door overlaps on the hinge side. You can determine this by measuring the width of the door, subtract the width of the opening and divide that in half. For example, if the door is 1” wider than the opening, that means it overlays 1/2″ on each side, so you would select 1/2″ overlay hinges.

How do I know what cabinet Hinges I have?

The construction of your cabinet – most notably, the overlay of the face frame and the cabinet door – determines which cabinet hinge you need. Similarly, where your drawer slides need to be mounted dictates what type of drawer slide you need.

What is standard cabinet overlay?

Standard overlay cabinets (also called traditional overlay) tend to be less expensive and do not require hardware because there is enough finger space on the side of the cabinet door or drawer face. They also have more exposed face frame, with at least 1 ¼ inches on all sides of the doors and drawers.

Article first time published on

What is a partial overlay hinge?

The partial overlay hinge is very similar to the inset hinge but is set back from the edge a little further than inset allowing the edge of the door to overlay the case partially. Use these for partial overlay doors.

How much overlay is a full overlay hinge?

A Full Overlay door will overlay that same 1.5” face frame 1.25”, leaving a ¼” reveal on the sides (stiles) and bottom (rail).

How do you measure for full overlay frameless cabinet doors?

To measure for full overlay cabinet doors on frameless cabinets, the cabinet door needs to be 1/8″ smaller than the cabinet on all sides. So first take a measurement of the cabinet opening, then subtract 1/8″ on all sides.

What is overlay depth hinge?

The overlay is the amount or distance that the cabinet door overlaps the cabinet opening on the hinge side of the door. Normally, this distance is the same on both sides of the cabinet opening and will range from 3/8″ to 1-9/16″.

What is a variable overlay hinge?

Variable overlay hinges work on doors that completely overlay the frame and don’t have a cutout on the back. Partial wraparound hinges have a large surface area that improves stability on flush, inset or overlay doors.

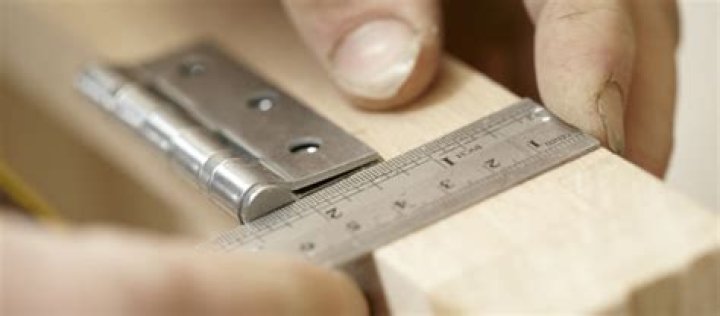

How do you measure hinges UK?

Know Your Way Around A Hinge: Hinges are measured from top to bottom and side to side. This bit is pretty straightforward. You’ll then need to be able to discern radius corners from square corners. A square corner has that sharp angle like a square.

How much gap do you leave for hinges?

As you start to swing a door outward, the opening has to accommodate the diagonal measurement of the door rather than its face. The thicker the door, the more of a problem this may present. Leaving clearance of 1/8 to 3/16 inch on each side of the door is usually adequate to alleviate these problems.

What is the difference between inset and overlay hinges?

Inset Cabinet Doors are set into the cabinet frame and fit flush with the face of the cabinet when closed. … Full Overlay Doors give a similar appearance to that of inset doors without the higher cost. They completely cover the cabinet face, providing the flat cabinet front so desired in inset cabinets.

Are all concealed hinges the same?

The type of concealed hinge you need depends on the application. There are many companies that make European-style hinges. … For entry or interior doors, the choice will be based on the size and thickness of the door and how many hinges you want to have.

What is the difference between single and double demountable hinges?

Single demountable hinges install with screws to the face of the cabinet frame, and the hinge slips into a slot on the edge of the door. Double demountable hinges have two slots – one in the face of the cabinet frame and one in the edge of the door. Self-mortise hinges are used on inset cabinet doors.

Are kitchen cabinet hinges standard size?

Concealed hinges come in many versions but only two sizes, these are 26mm and 35mm. Concealed hinges are the hinges most commonly used on kitchen cabinet doors. … 35mm are the most common size for concealed hinges and come in a wide variety of types to solve different problems.

How do you measure cabinet inset hinges?

1. With the door closed, part of the thickness of the door fits inside the opening of the cabinet and is called the inset.
2. Inset is measured on the edge of the door. Possible inset dimensions include 3/8″, 1/2″, 5/8″ and 3/4″.

What are the 4 styles of hinge called?

• Corner hinges. These are typically used on metal cabinets and machine covers and sit flush to the surface. …
• Lift-off hinges. …
• Offset hinges. …
• Piano hinges. …
• Leaf hinges. …
• Concealed hinges. …
• Side hinges. …
• Weld-on hinges.

What is considered full overlay?

Full Overlay Cabinets Defined Full overlay cabinets have doors and drawers with extra-large fronts. These are designed to fully cover the face frame. Whereas the face frame is entirely visible on an inset cabinet, it is completely hidden on a full overlay cabinet. Hinges are hidden from view as well.

What is standard overlay vs full overlay cabinets?

Full Overlay Cabinets The doors and drawers on a full overlay cabinet cover the face frame almost completely with a ¼ inch of space between the doors and drawers. This differs from a standard overlay which has at least 1 ¼ inches on all sides of the doors and drawers.

How much overhang should a face frame have?

Face frames on sides of kitchen cabinets should overlap 1/4 in. on the outside edge. This makes room for adjustments when installing them next to one another.

How much does a half overlay hinge cover?

Half overlay doors cover a little less than half (typically 5/16″) of the cabinet side, so that two doors hinging on opposite sides of a 3/4” partition will have 1/8” of space between them.

Can you convert partial overlay to full overlay?

A partial overlay covers most of the cabinet frame, but leaves about 2 inches revealed. … To change your kitchen from partial to full overlay cabinet doors, there is no need to replace the cabinetry; just reface the cabinets with new, custom doors.
