The proper way to read a copper tee is Side x Side x Center (Top). For example, a 3/4″ x 1/2″ x 1″ copper tee fitting is the same as 1/2″ x 3/4″ x 1″.

How are plumbing tees labeled?

Tees are generally measured from the “Run” to the “Bull”. The “Run” is the left-to-right or the length of the Tee. The “Bull” is the top part of the Tee. For example if a Tee is 3/4″ X 3/4″ X 1/2″, then the left inside diameter is 3/4″, the right inside diameter is 3/4″ and the top inside diameter part is 1/2″.

How are pipe fittings classified?

Pipe fittings are generally classified as “welded” or “pressure” fittings. Welded fittings are welded on to the piping system where as pressure fitting uses National Pipe Thread (NPT) to connect to the pipe. … Pressure fittings are classified as 3000#, 6000# or 9000# (most common).

How are pipe fittings measured?

How to measure pipe fittings. … Threads are sized just like the CTS fittings. They’re sized by the nominal size of the pipe, or the inner diameter. If you buy a 1/2 inch thread and measure the diameter, it will measure over 1 inch because it’s designed to have a nominal pipe fitting.

What size should plumbing pipes be?

In most cases, the main pipeline from the street to your home is either 3/4 or 1 inch in diameter, supply branches use 3/4-inch-diameter pipe, and pipes for individual components are 1/2 inch. Remember that water pressure decreases by a half-pound per square inch for every foot pipes extend above your water supply.

How do you label a reducing tee?

To describe a reducing tee, you must first locate the largest size on the run of the tee (1″ in the example below). The next size indicated in the description of the reducing tee is the side opposite to that with the largest size on the run of the body (3/4″ in the example below).

What is a tee in plumbing?

Pipe tee fitting is a fitting that has a T shape. It has two outlets at an angle of 90° each and one main connection line. It is a pipe that has adjacent outlets and used to connect pipes at 90° angle. Pipe tee fittings are used for commercial as well as industrial applications.

What is an fitting size?

AN SizeHose i.d. – Tube o.d.SAE Thread Size-281 3/4 in.2 1/4 in.-12-322 in.2 1/2 in.-12

Why equal tees are used?

The primary purpose of a Tee is to make a 90° branch from the main run of pipe. … The equal tee (or straight tee) is used as the branch has the same diameter as the run-pipe. The reducing tee is used as the branch has a smaller diameter as the run-pipe.

How do you measure thread length between pipe fittings?

Mike, the rule of thumb is: measure center to center, then subtract the diameter of the pipe for each fitting. Say 20″ is the distance btween the holes or fittings. If it is 1/2″ pipe, subtract a 1/2″ for each fitting, for a pipe length of 19″.

Article first time published on

Is copper measured by OD or ID?

In the plumbing trade, the size of copper tubing is measured by its outside diameter in millimeters. Common sizes are 15 mm and 22 mm.

What is a threaded fitting?

Threaded Fittings general Threaded joints probably represent the oldest method of joining piping systems. … Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon steel. They are available in three pressure ratings.. Class 2000, 3000 and 6000.

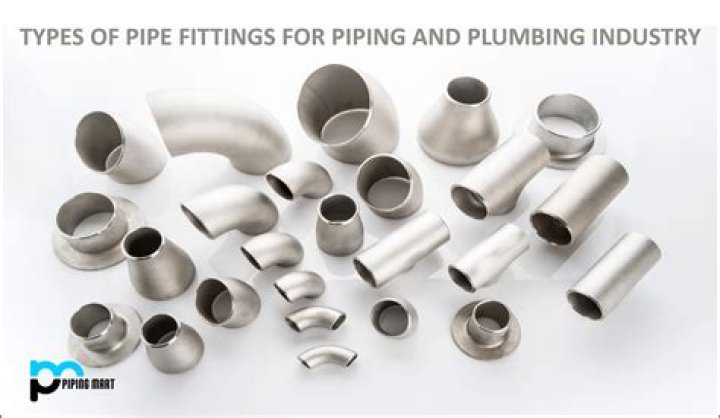

What is the purpose of pipe fittings?

Pipe fittings, also known as pipe connectors, attach one pipe to another in order to lengthen the run or change the flow direction in a plumbing system. These are used to combine, divert or reduce the flow of the water supply, and they come in a variety of sizes to fit the pipe they will connect.

Who invented pipe threads?

Sir Joseph Whitworth, the English mechanical engineer and inventor, devised a uniform threading system in 1841 to address the incompatibility problem. The Whitworth thread form is based on a 55 degree thread angle with rounded roots and crests.

How do I measure a drain pipe?

NOMINAL PIPE SIZE (inches)ANY HORIZONTAL FIXTURE BRANCHANY ONE VERTICAL STACK OR DRAIN2b61021/2b1220320484160240

How do I know what size copper pipe I have?

Here’s how to determine pipe size by simply measuring the OD. Copper. The nominal size of copper pipe, whether supply lines or DWV, is always 1/8 inch less than the OD measurement. For example, copper pipe that measures 5/8 inch OD, is called 1/2- inch pipe.

What size is standard copper water pipe?

Standard Sink Supply Line Size The copper, galvanized steel or PEX pipes that constitute a residential water supply system are of two main diameters. The main pipes, which are the ones that come off the main water supply and the water heater, are 3/4 inches in diameter.

What do the numbers on PVC pipe mean?

If you purchased your PVC pipe from a hardware store, you can use the markings on the side of the pipe to tell you what size you have. It will normally indicate the size in decimal or fraction, close to where the manufacturer’s name is, such as ‘1.25’ (for 1-1/4″) or “3/4” (for 3/4″… obviously).

What angles do PVC fittings come in?

PVC fittings only come in 90 degree and 45 degree angles. Sometimes you need a smaller bend.

How is PVC measured?

PVC Pipe sizes are so named by the measurement of the inside diameter (also called the bore) of the PVC pipe, and not the outside diameter. … The pipe will always be larger on the outside than the size name, as the thickness of the ‘walls’ of the pipe make it larger.

What is the difference between a sanitary tee and a regular tee?

A sanitary tee is a plumbing fixture that allows liquids to drain while also allowing the plumbing system to vent. The fitting resembles a normal tee fitting; the sanitary tee, however, when viewed from the side will have a definite downward sweep to the center inlet.

What are the different types of sanitary fittings?

• Hand wash basins.
• Sinks (glazed or stainless-steel sinks)
• Bath tubs.
• Water closets.
• Urinals.
• Flushing cisterns.

What is socket pipe?

A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.

How do you describe a tee fitting?

Pipe Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line. Pipe Tees are widely used as pipe fittings.

What is straight tee?

An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee. A pipe tee is defined “equal” when the bore size at the run and branch sides have the same diameter.

What are pipe flanges?

A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.

What is reducer tee?

Reducing tee is another type of pipe tee used in pipe and tube fittings. … Reducing tee, like all pipe tees, is in the shape of T with two ends of equal size and the third one slightly smaller. In other words, reducing tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run.

How do you read a pipe tee size?

The proper way to read a copper tee is Side x Side x Center (Top). For example, a 3/4″ x 1/2″ x 1″ copper tee fitting is the same as 1/2″ x 3/4″ x 1″.

What is a bar tee?

A barred tee (pigged tee) is a tee or any fitting with a branch used in pipelines that is pigged and has a restriction bar welded internally preventing the pig from traveling down a branch connection. … Barred tees are pipe fittings with two outlets, one at 90 ° to the connection to the main line that has tiny holes.

What is 6 an fitting?

In bolts the number refers to the diameter of the bolt whereas in a fitting it refers to the OD of the tube and thereby have different threads. For example, AN6 bolt has a 3⁄8-24 thread whereas an -6 AN fitting has a 9⁄16-18 thread.

Can you reuse an fittings?

Great, yes. Realistic, no. The good news is that fitting designs have improved significantly over time, making it easier to assemble and reassemble most connections and conduct routine maintenance without increasing the risk of leak paths. Two common types of fittings, however, generally rank poor for reusability.
