If the attic joists are not adequate, one way to strengthen the floor for live loads is to sister the old joists. Sistering is the process of adding a new joist next to each existing joist. In the case of 2 x 6 joists, you can pair them up with additional 2 x 6 joists by nailing them together, side by side.

How do I strengthen my timber joists?

There are many common problems which can be solved by repairing and strengthening timber beams and joists using a simple technique involving cutting a slot, or slots, along the length to within about 30-40mm of the base and bonding in a High Tensile Reinforcing bar with Structural Epoxy Pouring Grout.

How do you reinforce ceiling joists?

If the attic joists are not adequate, one way to strengthen the floor for live loads is to sister the old joists. Sistering is the process of adding a new joist next to each existing joist. In the case of 2 x 6 joists, you can pair them up with additional 2 x 6 joists by nailing them together, side by side.

Does Sistering joists increase load capacity?

yes, it increase moment capacity if the bond (from adhesive) stays. The screws help to maintain the contact of the joist and the 2x10s, but I wouldn’t count on them to provide strength.

Does Sistering floor joists work?

Sistering joists means beefing them up with additional material. Doing so strengthens weak joists and can help straighten sagging joists. Framing lumber is the typical choice for sistering material, but engineered lumber products actually add more stiffness than dimensional lumber.

What is a roof brace?

Roof bracing is a pre-punched ‘V’ shaped component that fixes in an ‘X’ or ‘V’ pattern to the top of the top chord to firmly brace roof trusses to the building frame. … Roof trusses are braced using Roof Bracing to prevent buckling or rotation of trusses when affected by winds or heavy loads.

How much weight can a ceiling joist hold?

If you have another floor above your garage, the ceiling\floor structure can usually support up to 40 lbs/SqFt (including the weight of the floor above it). If you do not have another floor above, the ceiling trusses may only be able to hang a maximum of 10 lbs/SqFt.

How do you add strength to a floor joist?

The best way to strengthen floor joists from underneath is to make a supporting mid-span beam or wall beneath the wobbling joists. Using jack posts or 6×6 posts and 2×10 or 2×8 beams perpendicular to the joists will solve any wobble and ensure your joists never move again.

How can I make my joists stronger?

As incremental parts of a building’s structure, joists are not easily replaced. You can, however, strengthen the joists by securing another length of wood to the existing joist, called “sistering,” or reduce wobbly floors with block inserts between the joists, called “blocking.”

How can I strengthen my upstairs floor?

Fix bouncy floors by adding bridging, adding a layer of plywood or adding a wall or beam. We’ll show you three ways to stiffen up your bouncy floor—by adding bridging, installing plywood along the joists and adding a wall or beam under the floor.

Article first time published on

How do you reinforce attic trusses?

1. Apply construction adhesive along the edge of the truss to strengthen the connection to the plywood roof deck. …
2. Stiffen trusses by joining them with 2x4s running from one end of the house to the other.
3. Brace gable ends with diagonal 2x4s.
4. Connect trusses to walls with hurricane tiedowns.

Are ceiling joists load bearing?

Walls that run perpendicular (at a 90 degree angle) to the ceiling joists are load-bearing. Walls that run parallel (in the same direction) as the ceiling joints are non load-bearing. Ceiling joists are spliced over the wall.

How much weight can attic trusses support?

According to the IRC, the minimum live load capacity of a roof truss for non-sleeping areas should be around 40 pounds per square foot. Again, if it’s built for sleeping areas, it should be around 30 pounds per square foot.

Can you replace floor joist without removing floor?

In cases where a joist is intact, it’s possible to sister a new joist alongside with construction adhesive and lag bolts. However, when a joist loses structural support, it has to be removed and replaced. Unless the subfloor can be removed, you access the joist through a crawl space.

What is code for Sistering floor joists?

If a crack or sag is isolated to one area, the sister joist should extend at least 3 ft. on both sides of the problem area. But it’s usually best to run the sister joist over the entire span. When the sagging joists are level, apply a generous bead of construction adhesive to the existing joist.

Can you use joist hangers for ceiling joists?

There is one place where a ceiling joist can truly “hang.” This is where it meets a beam on top of an interior or “partition” wall. A code-compliant connection includes the use of metal joist hangers, just like those used on outdoor decks.

How do you hang a heavy weight from the ceiling?

1. Locate a wall stud or ceiling joist positioned in an appropriate location for hanging the object with a stud finder, advises Allstate. …
2. Screw a 1-inch or larger hook into a rafter to hang a heavy plant or other object. …
3. Install blocking between a pair of ceiling joists to hang a heavy object between them.

Can you walk on ceiling joists?

If you don’t have a floor, you’ll have to walk on the joists. When doing so, be careful not to place all your weight on one joist. Not only is this a fall hazard, but it can also cause the joist to bow and crack the drywall below. This also means you don’t want to sit, stand, or kneel on one joist for too long.

How much weight can a ceiling joist hold UK?

Typically the joists in a loft will support about 40kg/m2 of weight so providing you’re storing less than this you won’t need to do any additional work to strengthen the joists.

What do roof straps do?

A hurricane strap is a connector that is used to strengthen wood framed roofs and homes. The most popular hurricane straps are made of galvanised steel or stainless steel and they are designed to protect structures from the ravages of adverse weather events such as tropical storms and winter storms.

What is a speed brace?

Speed Braces are a brand of fixed, self-ligating braces. Like traditional braces, Speed Braces are made from metal. The Speed Braces website says these braces are about 30 percent smaller than traditional braces, but are not designed for invisibility, like Invisalign. Speed Braces are not removable at home.

What are rafter braces called?

The beam running perpendicular to the rafters at approximately the midpoint between the top plate of the wall and the ridge board is called a “purlin,” and the diagonal braces are “kickers.” The bottom of the kicker bears on an interior wall or beam below.

How do you shore sagging floor joists?

Tack a beam under the sagging joists. Nailing two 2x4s together will work to span about three joists, unless the sag is under a weight-bearing wall. Set a hydraulic jack and post under the beam, and jack up the joists about 1/8 in. a day until they’re level.

Why is my upstairs floor sagging?

Sagging can be the result of undersized joists, an undersized support beam, or support posts that have rotted at the bottom or settled into the ground. Other causes can be joists that were notched or drilled in the wrong place (see our Guide to Notching and Boring Joists) or are weakened by decay or insect damage.

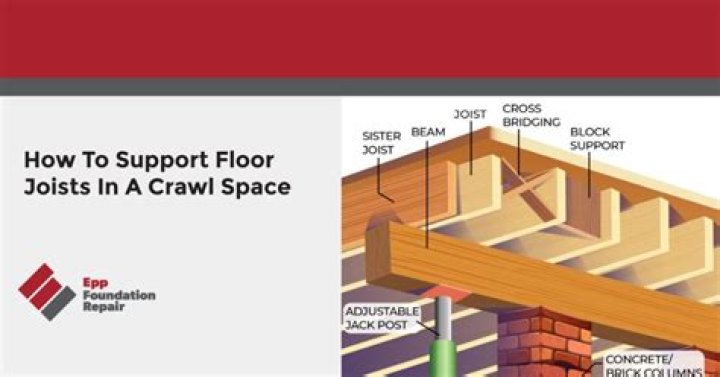

How do you support a floor joist in a crawl space?

Sometimes, a contractor will reinforce joists in a crawl space by adding additional concrete columns. These concrete blocks will be custom-made for the crawl space, and will need several days for the grouted-together block mortar to cure.

What is steel joist bridging?

Bridging provides lateral restraint either permanently or until other means of restraint are provided. • When deck is attached this provides the lateral restraint to the joist top chord. \continuous and anchored at both ends. Limit the magnitude and placement of construction loads.

How much weight will an attic hold?

The weight is supported by the joists A 10 pounds per square foot live load can be handled by an attic that isn’t designed for storage. 20 pounds per square foot live load can be handled by an attic with limited storage.

Can you reinforce trusses?

You reinforce trusses with Bracing, required by National Building Codes. Since Gable type trusses are the weakest by design, more restraint bracing most definitely applies to this design. The types of bracing required are; Top Chord Bracing.

How do you reinforce a garage truss?

1. Jack up the centre of the trusses, then reinforce each bottom chord with a 2×4 that spans the entire width of the garage.
2. Jack up the centre, reinforce (as above), and also replace any wood strapping with steel mending plates, hurricane ties, etc.)
3. Leave it as is, strap up drywall, pray to the gods.
