A spring-loaded hinge should only be removed when the door is closed to avoid it slamming. Using a hex wrench, open the spring so you can see the tension pin. Then, remove the pin using pliers. You can then remove the hex wrench and allow the spring to naturally unwind.

How do you release the tension on a door hinge?

Adjust the bottom hinge to the same tension as the one on top. Remove the locking screw from the bottom hinge and insert the hex wrench in the hole. If you tightened the top hinge, turn the bottom hinge clockwise by the same amount. Otherwise, turn the wrench counterclockwise to relieve tension from the hinge.

How do spring-loaded hinges work?

A spring-loaded hinge works to ensure that a door automatically closes without you having to push or pull. It works by using the tension of the spring to move the door, and how much tension is needed depends on the weight of the door and the desired speed of the closure.

How do you open a self closing hinge?

If it does not fully close, the hinge will need tightening. To loosen, first close the door. Find the hole beside the locking pin on the hinge’s spring, which is usually either at the top of bottom of the hinge’s housing. Rotate the locking pin to remove, and replace the pin one hole further away from the door.

How do you adjust spring tension?

Gently loosen the right end cap from the cassette being careful to keep a firm grip on the end cap (do nOt let go) [1.2]. Increase the spring tension by adding clockwise turns or decrease tension applying counter-clockwise turns [1.3].

How do you adjust the spring tension on a door closer?

Turn the “L” screw clockwise to increase the speed with which the door closes during the last one-third of its swing. Alternatively, turn it counterclockwise to reduce this speed. Increase the pressure it takes to open the door by turning the “BC” screw clockwise. Turn it counterclockwise to reduce this pressure.

How do you remove a spring loaded door hinge pin?

A spring-loaded hinge should only be removed when the door is closed to avoid it slamming. Using a hex wrench, open the spring so you can see the tension pin. Then, remove the pin using pliers. You can then remove the hex wrench and allow the spring to naturally unwind.

How do you adjust spring hinges on glasses?

Most frames will have a screw located at the hinge temple that you can tighten to adjust the fit. You’ll need an optometric screwdriver that either has a flat tip or Phillips tip, depending on the screw type used in your glasses. To tighten, turn the screwdriver clockwise.

How do you adjust the tension on a self-closing hinge?

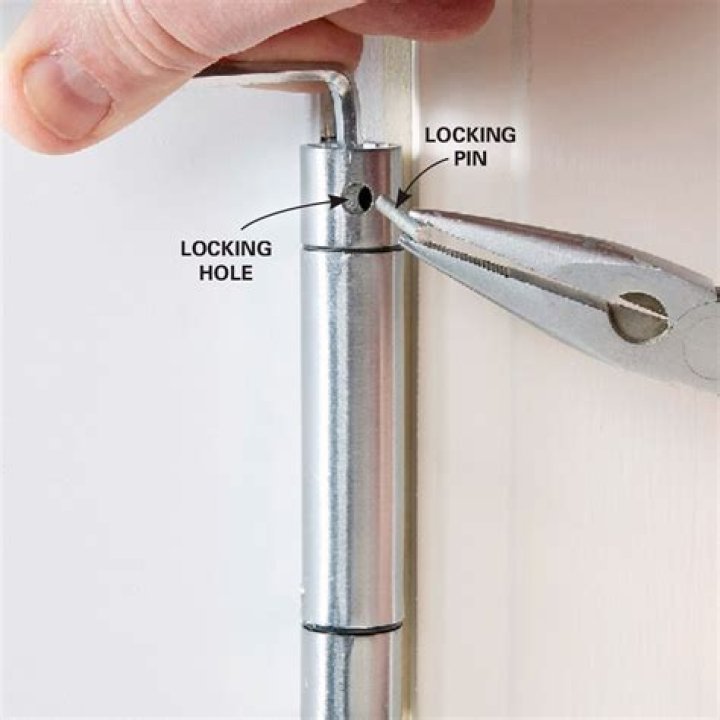

If the self-closing door to your garage isn’t closing hard enough to latch properly or the door slams shut, you can adjust the spring hinge tension with a hex wrench and pliers. Start by removing the locking pin (Photo 1). Then add or release tension until you get the proper close rate (Photo 2).

What is a spring closing hinge?

A spring hinge, also known as spring loaded hinges, self-closing hinges, and door closing hinges, are hinges fitted with a spring, automatically closing the door from an opened position. Spring hinges are adjustable.

Article first time published on

How many times do I wind my garage door spring?

A rule of thumb with springs is that four quarter turns equals a full revolution and the spring needs to be tightened a full revolution for every foot of door height (e.g. 7-1/2 foot door = 7 revolutions +2 (30 quarter turns).

How do you stop a spring loaded hinge from squeaking?

Try loosening each hinge pin on the squeaky door by tapping from underneath with a hammer or mallet. You can use an 8d nail or a similarly sized nail if the hinge pin is stuck or particularly difficult to tap loose. Once the hinge pin is loose, pull it up and out of the hinge.

Is WD-40 bad for door hinges?

WD-40 is a fantastic product that can be used to displace moisture and lubricate moving pieces throughout your home, garage, or workshop. But one place where you should not use WD-40 is a squeaky door hinge, as the lubricant can attract dirt and dust, and may eventually cause the hinge pin to turn black.

How do you grease squeaky hinges?

A few drops of olive oil will easily lubricate your squeaking hinges. We’d recommend using a pipette or oil can to make the process as easy and clean as possible. Simply apply a few drops of olive oil to the hinges and your hinge should soon be squeak-free.

How do you stop self closing doors from slamming?

Try a few felt pads. Just stick a few small felt pads along the edge of the doorframe: Position a pad at the top and bottom of the frame, along with two more pads at the top and bottom of the strike plate. The pads provide just enough soft cushioning to slow down the door as it closes, preventing a slam.

How do you make a storm door easier to open?

1. Open the door panel and locate the screws that attach the hinge rail to the door panel.
2. Secure the storm door in the open position with the closer.
3. Using a screwdriver, back out each screw an equal amount until the hinge rail returns to its normal shape.
4. Allow the door panel to close freely.

How do you fix a spring hinge?

1. Close the door. Insert the Allen wrench into the hex hole at the end of the hinge. …
2. Turn the Allen wrench clockwise to compress the spring. If the hex hole is on top, sweep the handle of the wrench from right to left. …
3. Insert the new hinge pin into the pin hole. …
4. Remove the Allen wrench.

How do you adjust Garage Door Extension Springs?

‘Adjusting Extension Springs’ can be done in two ways. One is by moving the hook that holds the cable to another hole to decrease or increase the tension. The other is by loosening the clamp on the cable and adjusting the length of the cable.
