Baseline wander is a low-frequency noise of around 0.5 to 0.6 Hz. To remove it, a high-pass filter of cut-off frequency 0.5 to 0.6 Hz can be used. Powerline interference (50 or 60 Hz noise from mains supply) can be removed by using a notch filter of 50 or 60 Hz cut-off frequency.

What causes baseline drift in ECG?

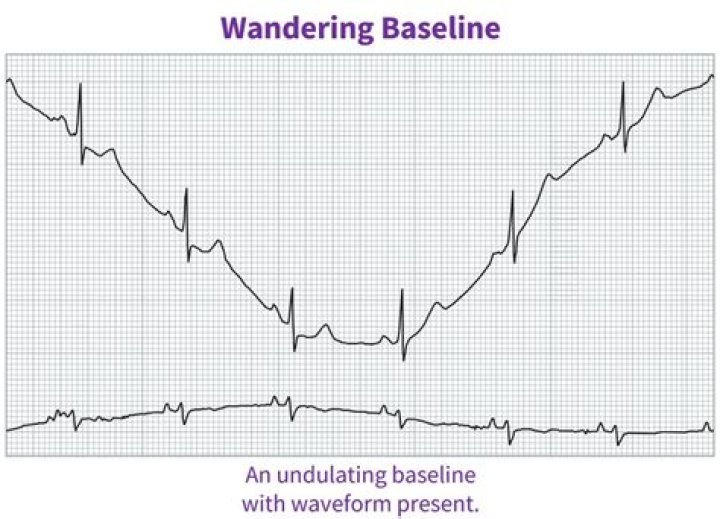

Baseline wander is a commonly seen noise in ECG recordings and can be caused by respiration, changes in electrode impedance, and motion. Baseline wander can mask important information from the ECG, and if it is not properly removed, crucial diagnostic information contained in the ECG will be lost or corrupted.

What are the principle causes of wandering baseline How do you remove the artifact?

The main cause of the BW in the ECG signal is movement and respiration of the patient [2]. One of the approaches to remove BW artefacts is the high-pass filtering of ECG signals [2].

What is baseline wandering in ECG?

Baseline wander is a low frequency artifact in the ECG that arises from breathing, electrically charged electrodes, or subject movement and can hinder the detection of these ST changes because of the varying electrical isoline (Figure 1(a)).

How do you remove motion artifacts from ECG?

An existing method to remove the motion artefact is to employ an accelerometer for measuring the body movement at the same time of ECG detection [5]. However, for non-contact electrode structure of ECG detection, an accelerometer directly attached to the human body is unacceptable.

What causes an interrupted baseline?

It can be caused by patient movement, including breathing. I have also noticed that stopping or accelerating the ambulance can cause wandering baseline. Some references suggest that wandering baseline can be caused by loose or dry electrodes.

What does baseline drift mean?

Baseline drift is the low-frequency signal variation that occurs in the baseline due to column stationary phase bleed, background ionization, and low-frequency variations in the detector and/or instrument-controlled parameters (such as temperature or flow).

How do you find the baseline of an ECG?

If you follow the QRS complex on your ECG, you will see that they are usually sharp-pointed. If you go down with the Q wave, up with the R wave, down the S wave and follow the S wave back to the baseline, it will usually pass the baseline. The moment that line goes horizontal, that is where your J point is.

What is base line wandering how can it be prevented in line coders?

Line coding technique to eliminate baseline wandering In the first half, voltage is at one level and in the second half it is at the other level. Transition at the center of bit period helps in synchronization. Differential Manchester encoding combines RZ and NRZ-I. There is transition at the center of the bit period.

What are baseline ECG abnormalities?

Common baseline abnormalities included sinus bradycardia, R wave transition abnormalities, right axis deviation, non-specific T wave changes and atrial premature complexes.
