Step 1: Find Stud Edge. … Step 2: Remove Damaged Section. … Step 3: Attach Nailers. … Step 4: Drive New Sheet.

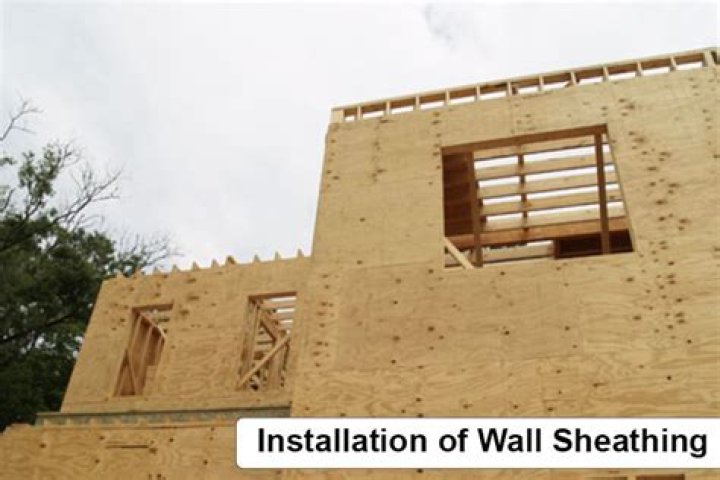

How do you replace exterior wall sheathing?

1. Step 1: Find Stud Edge. …
2. Step 2: Remove Damaged Section. …
3. Step 3: Attach Nailers. …
4. Step 4: Drive New Sheet.

What are 4 types of exterior wall sheathing?

Common structural sheathings include plywood, oriented strand board (OSB), wafer board, and exterior gypsum board. When choosing plywood, OSB, or wafer-board panels, be sure they are rated as wall sheathing and choose an appropriate thickness.

Can you replace sheathing?

You can choose a new material as it is fine to mix plywood and OSB. However, the new decking should be the same thickness as the old, so that the shingles will lay flat. Step Six: Position the replacement. Your roofers will then position the replacement materials on the roof.

How do you remove plywood sheathing?

Pry the edge of the sheathing from the roof rafters while standing on an adjacent sheet. Move the pry bar down the rafter to remove the nails if you can’t pull the sheathing up by hand after prying it away. Once the sheet is free, carry it down the roof and drop it onto a clear space of the yard or other surface below.

What is sheathing plywood used for?

Sheathing: Standard construction plywood used for wall sheathing, roof decking, floor structures (subflooring) and general rough construction where looks and surface imperfections aren’t important.

Do I need to replace sheathing?

Sheathing is an important element in supporting your home’s roof structure and subsequently, the building’s walls as well. With the old shingles removed, a contractor can inspect sheathing for damage, rot, or failing fasteners. If any of these are present, it’s best to replace the sheathing.

Is plywood sheathing better than OSB?

The National Tile Contractors Association and the Resilient Floor Covering Institute both recommend plywood for subflooring and underlayment, because it doesn’t have the risk of swollen edges that OSB does. Plywood also has a slight advantage in stiffness, which means that subflooring panels need not be quite as thick.

Does wall sheathing cover the top plate?

Most installations are Category 1, but the critical criteria in all categories is that the panels MUST fully meet (lap) the sill plate, both top plates and 1/2 of stud at ends. (Please stagger nailing into studs where the panels end, to avoid splitting of stud.)

How thick should exterior plywood sheathing be?

Minimum Plywood Thickness The International Residential Code specifies 3/8-inch plywood for sheathing walls with a standard stud spacing of 16 inches, if the siding is nailed to the studs through the sheathing.

Article first time published on

How thick should wall sheathing be?

The U.S. Department of Energy has determined that 7/16-inch sheathing is the minimum appropriate thickness for structural wall sheathing with an exception for gable end walls, where the minimum thickness is 3/8 inch.

Should fiberboard sheathing replace?

Unless the fiberboard actually absorbed water, can’t be dried, and / or is damaged, replacing it is not likely to be cost effective nor necessary. Unless there is a serious mold problem I’d leave the sheathing in place.

What is structural fiberboard sheathing?

Fiberboard structural sheathing is an engineered product made with ground up wood chips and lumber waste glued together with an asphalt binder or resin. The finish of fiberboard is uniform, with no knots or grains like those found in real wood.

What does sheathing mean in construction?

Sheathing is the protective covering or casing used on flooring, walls and roof assemblies on both residential and commercial buildings. Why is sheathing essential you may ask? Sheathing is the base on which material will be applied onto such as flooring, roofing shingles, and siding.

What is the difference between sheeting and sheathing?

As nouns the difference between sheathing and sheeting is that sheathing is something that wraps around or surrounds something, as a sheath encases its blade while sheeting is fabric used to make sheets (bedding).

Should sheathing be horizontal or vertical?

On roofs and floors, sheathing is installed perpendicular to supports because this is the orientation that results in the strongest roof or floor. Wind loads perpendicular to a wall are similar to floor and roof loads, and installing sheathing horizontally makes walls better at resisting wind pressure.

Can you put new plywood over old plywood?

1 Answer. If the old plywood was clean and not infested with dry rot or mold it should be OK to cover it with the new plywood.

How do you remove OSB?

If removing a piece of the OSB subflooring is the only option, use a circular saw to make a cut down the long edge of the T&G between the sheets of subflooring. Make the cut 1/8 inch less than the thickness of the OSB subflooring to prevent cutting the attic floor joist or truss bottom cord.

What is the difference between decking and sheathing?

In short, roof decking, also know as roof sheathing, is the foundation of any roof. It is the supporting wood, concrete, steel or other material that the shingles or tiles are placed on. Typically made of wood, concrete, or steel, roof decking is the protective layer that acts as a seal for your home.

How often should sheathing be replaced?

As plywood lasts about 30 to 40 years and we run the risk of delamination and required replacement in a few years. The other two have stated that as long as the plywood is good and stays dry, it can last forever.

How do you repair water damaged exterior walls?

You may use either nails or 3-inch wood screws. Insert the new insulation into the wall with the paper facing the interior of the wall. Replace the exterior sheathing, plywood or OSB, and attach with penny nails. Cover the new area with felt paper or house wrap, and replace the exterior siding.

What's the difference between sheathing and plywood?

Plywood sheathing (OSB or plywood) is often mistaken for plywood underlayment. They are not the same. Plywood sheathing is most often used to construct the structural sub-floor. … OSB is constructed using long strips (strands) of wood that are held together with wax and adhesive.

What is the difference between sheathing and sanded plywood?

Sanded plywood features face and back (top and bottom) plies that are sanded in the manufacturing process. It is typically used where it will be seen such as for cabinets, shelves and paneling. … Plywood sheathing or structural plywood is designed for permanent structures.

What is the difference between sheathing and underlayment?

Basic Floor Construction Considerations Rated Sheathing or Sturd-I-Floor may be used with an underlayment for vinyl, ceramic tile or fully adhered carpet. An underlayment is optional for Rated Sheathing or Sturd-I-Floor when used with hardwood.

What kind of nails do you use for sheathing?

The demand/capacity calculations for sheathing-attached systems are based on 6d common or 8d box nails with 6” o.c. edge and 12” o.c. field nailing that fasten 15/32” or thicker plywood or OSB to rafters at 24” on center. Building codes since the late 1990s have required sheathing nails to be at least 8d box (.

Should wall sheathing overlap foundation?

In the same way that siding should overlap the foundation, so should sheathing. The sheathing is the material that goes directly onto the framing. … The logic is that by overlapping the sheathing over the foundation by 1/2-inch, your 2-inch siding overlap is still significantly past the edge of the sheathing.

Which side of OSB faces out on walls?

The smooth side has a better moisture resistance and will ultimately provide better performance against weather. Facing the board smooth side out will maximize its ability to keep moisture out of the structure.

Does sheathing have to end on a stud?

Align the edge of the sheathing sheet with the outer corner of the framed wall. Correct placement of the sheathing is when the edge of the sheet lines up perfectly with the outer wall, and the other end of the sheet is on the center of a stud. … If it’s the stud, bang it into place with a hammer.

Does wall sheathing cover the rim joist?

The wall sheathing should extend below the rim joist, which is inset on this house to allow for a continuous band of insulation. The wall sheathing below dictates the overhang.

How far down does wall sheathing go?

For multi-story buildings the sheathing on the bottom should extend down to the bottom of the lowest framing member & extend to the halfway point on rim-joist (as shown in red). The next piece above it should be allowed a 1/8” expansion joint ending at the top plate or at the midway point of the next rim joist.

Do you nail or screw OSB board?

Tools for Hanging OSB A hammer and 8d nails are standard for installing OSB, but you can speed up the installation by using a nail gun. … If the force of the nail gun is too strong, the head of the nail can penetrate the OSB, which reduces the nail’s holding power.
