The standard slope for proper concrete drainage is a one-quarter inch drop for every foot of length. So, to calculate the difference in height between one end of a patio or walkway and another, simply multiply the length by one-quarter.

Does a shower drain need to be sloped?

A shower drain pipe should have a pitch, or slope, of 1/4 inch per foot. Mark and drill holes in the floor joists according to this slope. For 2-inch pipe, you’ll want to drill holes that are a little over 2 inches to make it easier to install the pipe.

What slope do you need for water to drain?

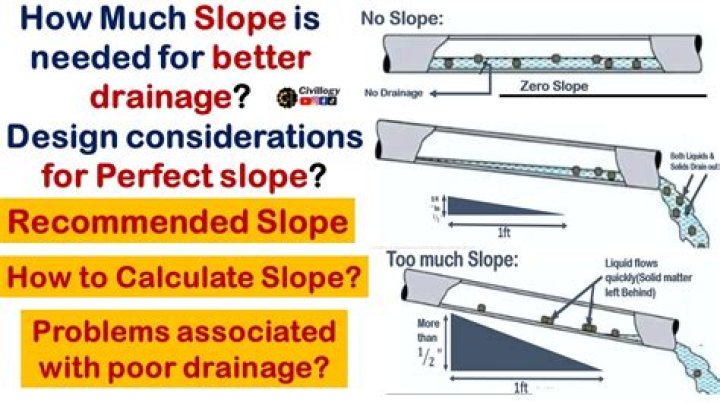

You probably know that drains need to flow downhill into your sewer. But do you know the proper slope? The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically.

What is the minimum slope for concrete?

2. Set forms so that the concrete slab surface slopes a minimum of two percent, or 1/4 inch per foot, to provide adequate drainage.

How thick should a shower pre-slope be?

Your finished floor (after your liner and top mud bed are installed) needs to be 1″ to 1 1/4″ thick at the drain. So, if we make the pre-slope 3/4″ thick at the drain it needs to be a total of 1 1/2 inch thick at all your walls.

How high should a shower drain be from the floor?

2″ Drain Pipe should be centered in a hole (approximately 5″ diameter) in the flooring. The top of the Pipe should be no higher than, and no more than 1/8″ lower than, the top surface of the floor on which the base will be set.

What is the proper slope for a shower floor?

Step 1: Floor Tile Must Slope to the Drain In a stall shower, the plumbing code requires the floor to be sloped one quarter (1/4) of an inch per foot in order to carry the water effectively to the drain. This slope, according to the TCNA Handbook is called “sloped fill” or commonly known as the pre-slope.

Why does a shower require a 2 inch drain?

A 2-inch pipe is the recommended size because showers have a low threshold for flooding, and a 2-inch pipe helps the water drain faster than does a 1 1/2-inch pipe. So, if you are converting from a tub and shower combination to a shower, you’ll likely have to change the drain pipe size.

Does a shower drain need AP Trap?

Do shower drains have traps? … According to regulations, all shower drains are required to have P-traps. This includes all fixtures connected to a building’s main plumbing system. P-traps are curved pipes installed under showers and drains of all kinds.

How do you calculate the slope of concrete?

Convert the rise and run to the same units and then divide the rise by the run. Multiply this number by 100 and you have the percentage slope. For instance, 3″ rise divided by 36″ run = . 083 x 100 = an 8.3% slope.

Article first time published on

How much is a 5% slope?

DegreesGradientPercent1.19°1 : 482.08%2.86°1 : 205%4.76°1 : 128.3%7.13°1 : 812.5%

How much slope do I need for a linear drain?

Both center pitch drains and linear drains require a gentle ¼” slope per foot, but the difference is in the effective angle that the slope creates. The floor surrounding a center pitched drain is sloped in four directions, like an inverted triangle, which creates an uneven, almost circular grade across the floor.

Should linear drain be entire width of shower?

The dry side of the shower should have a slight pitch towards the linear system to ensure proper drainage. The entire wet and dry floor area should be waterproofed. It is recommended the wet area is a minimum of 42″ in width to contain water from splashing off the shower user.

What is a 1% slope for drainage?

All of your drain pipe (with one exception) must slope slightly downhill. Usually 1/8″ per foot is plenty for drainage, this is the same as the commonly recommended 1% slope.

How thick should a concrete shower pan be?

Thickness for Concrete Shower Pan – Base Layer The shower pan base mortar layer thickness should be approximately ½ to 1 inch thick. Since the shower floor already has a pre-slope, just apply a base mortar layer that has an even thickness throughout the shower floor area.

Can I use concrete for a shower floor?

Concrete is perfectly adequate, if not recommended, for use as the shower pan base for materials such as stone, tile or mosaic tile to be used as the finish surface (as long as there is a proper membrane between the concrete and any vulnerable surrounding material).

How do you find the slope on a walk in shower floor?

Measure from the drain opening to the furthest wall, then round up to the nearest foot. Calculate the slope by multiplying the measurement by 1/4 inch. For instance, if the drain opening measures 2-foot 8-inches from the furthest wall, then the shower floor should slope 3/4 inch from that wall to the drain.

What fall is required for shower waste?

Waste pipes need to be installed sloping down to ensure the water runs the right way. This needs to be a minimum of 10mm fall for every 4m of pipe which can lead to insufficient fall within the floor void under baths or showers (especially under low-level or flush shower trays).

Where should the shower drain be located?

The shower drain has to be at the lowest point of the shower floor, and so the floor has to slope down toward the drain from all directions. If the drain is in the center of the floor, you’ll have a relatively level space around the drain to stand on.

How far off the wall should a shower drain be?

You will need to cut a hole in the floor at the drain end of the tub to position the tub drain and install it. The hole should be at least 9 inches wide and 12 inches from the wall.

Should the shower drain be flush with the floor?

Yes, the shower floor’s drain should be flush with the tile around it at the point where the two meet. … A linear drain only requires the shower floor to slope in the direction of the drain.

How do you install a floor drain in a concrete slab?

1. Prepare Your Space. While it’s easiest to install a floor drain prior to pouring your cement, you can do it after the floor has been set. …
2. Plan Drainage. …
3. Dig Trenches. …
4. Pour New Concrete. …
5. Add a Drain Cover.

Can a shower have a 1.5 inch drain?

Current plumbing codes (IPC as well as MA Plumbing Code 248 CMR 10 for instance) need 1.5 inches to drain for a tub with a shower. The tub can drain at leisure and the shower function when in utilize, with flow-limiting showerheads, fall within the flow rate that a 1.5” drain can handle.

How far below drain should P-trap be?

However, the Universal Plumbing Code stipulates that the total developed length of all tailpieces, arms and fittings connecting the drain to the p-trap must be 24 inches or less. Jennifer Roberts has enjoyed writing since 2008.

How far can a shower trap be from the drain?

Under both the IRC & UPC the maximum length of the tailpiece is 24″ vertical from the finished edge of the drain opening to the standing water level in the trap except washer standpipes.

What is code for shower drain size?

Shower drains shall have an outlet size of not less than 11/2 inches (38 mm) in diameter.

What diameter is a shower drain?

The majority of shower drainpipes are two inches in diameter, but if you have two-inch drains and you run into a three-inch drainpipe, you’ll be making another trip to the plumbing supply store.

What does a 4 to 1 slope mean?

For example, “slopes are expressed as ratios such as 4:1. This means that for every 4 units (feet or metres) of horizontal distance there is a 1 unit (foot or metre) vertical change either up or down.“

Can you pour concrete on a slope?

Pouring concrete on the sloped surface needs excellent skills and experience to perform the work as planned. Commonly, low slump concrete used for slopped concrete members, driveways, or wheelchair ramps. Make sure concreting begins from the lowest point of the slope. Then, concreting progresses slowly upward.
