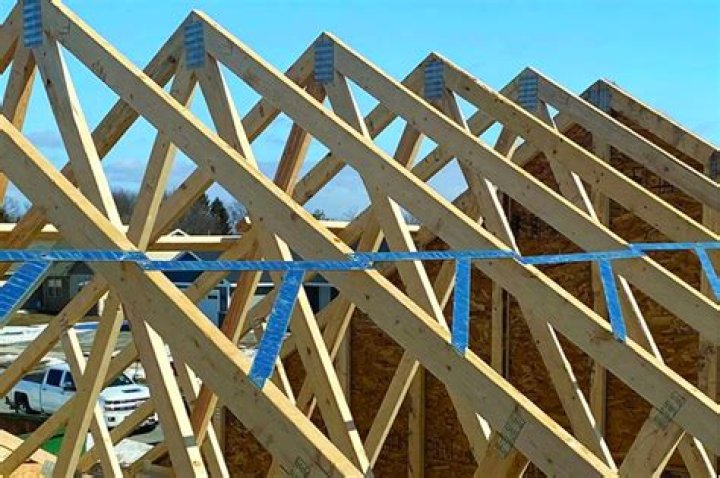

Install a length of 1-by-4-inch framing lumber across the top cords, or rafter sections, of the trusses as a brace. Drive an 8-penny nail through the brace and into each cord. Move the ladder as you go. The trusses are now stabilized and ready for roof sheathing.

What is truss bracing?

Truss braces are installed in a structure to hold the trusses in place. This prevents the structure from buckling under the pressure of high winds and heavy snowfall. The design of truss braces is determined by the size of the structure and the local building codes. Some structures require no truss bracing at all.

How are trusses held in place?

Every step of the truss installation follows explicit instructions from the manufacturer. … Once in place, the workers nail the truss to the wall plate on both sides and attach temporary braces to hold the truss upright.

How do I stop my roof truss uplift?

The key to preventing truss uplift cracks and screw pops in the first place is to avoid nailing or screwing the ceiling drywall to the bottom of the trusses at or near the intersection. When building a new house, the framing contractor should secure the interior partitions to the trusses with truss clips.

What is the difference between bracing and truss?

A roof truss is made of several pieces of wood that are joined together. Each piece of the truss is referred to as a “member”. A brace is a member that prevents a structural element from buckling or racking. Members are generally subjected to tensile or compressive forces.

How do you handle a truss lift?

How to fix truss lift. One solution is to reduce the humidity in your attic by (1) closing up air leaks through the ceiling, and (2) making sure you have good, unobstructed attic ventilation (soffit and roof vents). Another solution: Don’t nail the ceiling drywall to the trusses within about 16 in. of any wall.

What keeps a roof from falling over?

A truss frame uses prefabricated lumber made into triangular webs. Each truss is designed to provide support for the roof and hold the walls together. The space between each truss is known as a bay, and they are spaced out evenly at precise intervals to bear the load of your roofing material.

What causes roof truss uplift?

Truss uplift is caused by wood’s natural response to moisture exposure. This response occurs when humidity changes differentially in two areas (an attic floor and attic ceiling, for example). A truss’s top chords expand as their moisture content increases.

Do I need truss clips?

In such situation, framing anchors or truss clips should be used. It is strongly recommended that for trussed after roofs the truss clip is used, whether or not it is specified on the drawing. … All metalwork used in roof construction should be galvanised, including nails to prevent corrosion.

How would you set out for roof truss installation?

Plumb – trusses shall be installed so that no part of the truss is out of plumb by more than the smaller or height/50 or 50 mm. All trussed roofs require diagonal bracing to the top chords, which is typically at an angle of 30-45 degrees to the ridge line, measured on plan.

Article first time published on

Should I brace myself meaning?

Definition of brace yourself —said to warn someone to be prepared for something Brace yourself.

Is a truss a braced frame?

A braced frame is a structural system designed to resist wind and earthquake forces. … Members in a braced frame are not allowed to sway laterally (which can be done using shear wall or a diagonal steel sections, similar to a truss).

How can we support trusses?

Extra support for the trusses can be made by placing a 2-by-4-inch piece of lumber from each truss on one side to the truss on the other side, high enough to provide head room but low enough to provide support for the trusses. In this situation, the walls of a finished attic space or room would go with the roof line.

Why do trusses break?

When a truss collapses, it is usually because of the failure of either the top chord (in compression, unless a cantilever) or the bottom chord (in tension, unless a cantilever). … Most truss failures are the result of broken connections.

What are truss clips?

The TCP truss clip attaches girders, trusses and rafters to wall plates to provide wind restraint. TCP Truss Clips may be used for general purposes, strongback attachments as allpurpose ties wherever one member crosses another.

Why is my wall separating from the ceiling?

It’s likely to be a phenomenon known as truss lift. The classic definition is just what you describe: cracks between walls and ceilings on the top floor that open and close as seasons shift. Usually, the cracks open in winter and close in summer. This happens in houses with truss framing to support the roof.

What is the difference between a joist and a truss?

The joist supports the load which the floor is built to bear. A truss is used to support the roof.

What prevents rafters from spreading?

Rafter ties resist the outward thrust that rafters exert on the exterior walls. They help keep walls from spreading due to the weight of the roof.

Is Birdsmouth cut necessary?

A lot of force is transferred down the length of the rafter, and the seat cut on the birdsmouth transfers that force directly to the top plate. … In general, while the ripped-strip installation does eliminate the need to make two cuts for the birdsmouth, it’s debatable whether there are any real labor savings.

Do roof trusses need load bearing walls?

Most exterior walls are load bearing, but not all. It all comes down to where the roof trusses/rafters and floor joists/trusses are bearing. Long skinny homes may only have two exterior load bearing walls.
