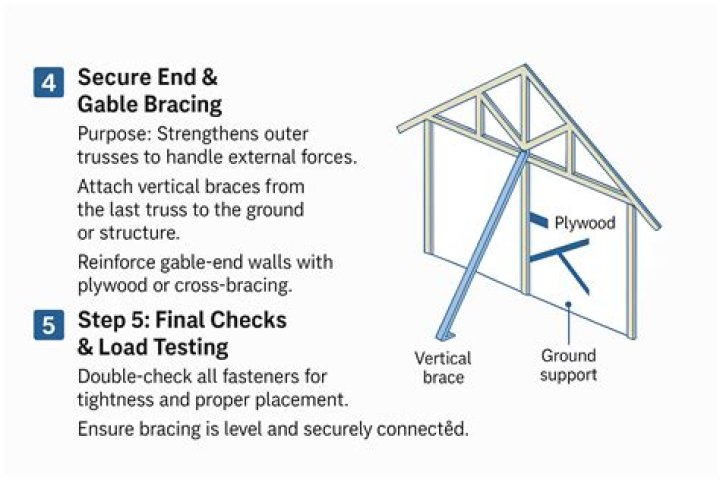

Conventionally framed gable end walls can be strengthened by using straps or right-angle brackets to anchor each stud longer than 3 feet to the upper and lower framing members (frequently existing studs are only toe-nailed).

What is the spacing of roof trusses?

Roof trusses should be 24” apart, on center. Trusses are allowed to be closer together, at either 12” or 16” on center, but building codes allow for 24” on center spacing without using heavier duty fasteners for truss to wall connections.

How do you attach truss plates?

1. Arrange the truss members on the ground. …
2. Lay the plywood truss plates at the connection of each truss. …
3. Hammer the truss plates into place with five 6 d nails on each connecting member.
4. Repeat the procedure for all connections on one side of the truss.

How long does it take to install trusses?

In most cases, manufactured roof trusses can be installed within just one day. However, if you’re new to the process, it may be a bit of a learning curve.

What is a gable truss?

The gable truss serves as the ‘end cap’ for the roof. They have two top chords, one bottom chord, and multiple vertical posts. Gable trusses are built on each end of the roof framework to support roof sheathing. Gable trusses will cost anywhere from 25% to 50% more than standard-style trusses.

What are the different types of roof trusses?

• Gable Trusses. A variety of the trusses shown above fit into the common or gable truss category, including the King Post, Queen Post, Howe, and Double Howe trusses. …
• Hip Truss. …
• Scissor Roof Truss. …
• Attic Truss. …
• Mono Truss. …
• North Light Roof Truss. …
• Flat Truss. …
• Gambrel Truss.

How do you calculate gable roof rafters?

Common Rafter Elevation If you are calculating rafter length from the center of the ridge beam (as shown below), you will need to subtract half of the thickness of the ridge beam from the top end of the rafter. For example, if the ridge beam is 1.5 inches thick, subtract 3/4 of an inch from the overall rafter length.

What is a gable roof shape?

Gable Roof Shapes. Gabled roofs are the kind young children typically draw. They have two sloping sides that come together at a ridge, creating end walls with a triangular extension, called a gable, at the top.

What are end trusses called?

Residential dropped end trusses (also referred to as gable end frames) are commonly used to achieve up to a 2′ gable overhang. The end trusses are built with lower top chords that allow 2×4 lookouts or ladder sets to be placed on top of the end truss and nailed to the first common truss.

How do you frame a gable roof without ceiling joists?

1. Structural Ridge. A structural ridge is the standard alternative to ceiling joists. …
2. Structural Ridge Calculations. …
3. Center Wall. …
4. End Walls.

Article first time published on

Is it cheaper to build your own trusses?

In raw material alone, trusses are 40% to 60% cheaper than making a roof using rafter or “stick” construction.

What size lumber is used for trusses?

Trusses only use 2×4 lumber and are constructed using a “web” of 2x4s for strength. Rafters simply rely on a center ridge beam and the outside walls for support.

How much does a 20 ft truss cost?

Span (in feet)Common Types*10$30 – $5012$30 – $5520$60 – $8024$75 – $95

How do I know how many trusses I need?

Divide the length of the roof by two to determine how many trusses are needed. Trusses are generally secured 24 inches on center along the top plate. For a 30-foot long roof, a total of 15 trusses are needed.

How far apart should steel trusses be?

With traditional stick-frame construction, the trusses are usually spaced 2 feet apart. For many traditional stick-frame builders, trusses spaced 8 feet apart seems unnatural, but thanks to the ingenuity of modern engineering it is a very common building design.

How thick should rafters be?

Nominal SizeSpaced (o.c.)Species / Grade ( 40# Live Load – No Finished Ceiling)2″ x 8″2410-82″ x 10″1219-31616-82413-7

What is a truss stabilizer?

The Stabilizer™ Truss Brace and Spacer provides temporary construction bracing in the roof and ceiling planes, as well as permanent lateral bracing for webs as specified by your truss engineering. … The side tabs are then secured by driving the teeth into the face of the truss member being braced.

What size nails does Rafter to ridge board nailing use?

For nailing typical 2x studs to a bottom plate or top plate the UBC requires 4 8d common nails, two per side of the stud. A 3-inch nail or 10d nail would be big enough for most common framing situations.

How many nails should be in a roof rafter?

METAL CONNECTIONS and FASTENERS The opposing rafters will be toe-nailed. The proper nailing scedule for toe-nailing rafters is three nails in one side and two in the other.

What size and how many nails do you use to fasten the rafters to the Ridgeboard?

Continue to hand up rafters and fasten into place with 16-penny nails, until you reach the other end of the roof. Check your work frequently, with the carpenter’s square, to make sure everything is still vertical.
