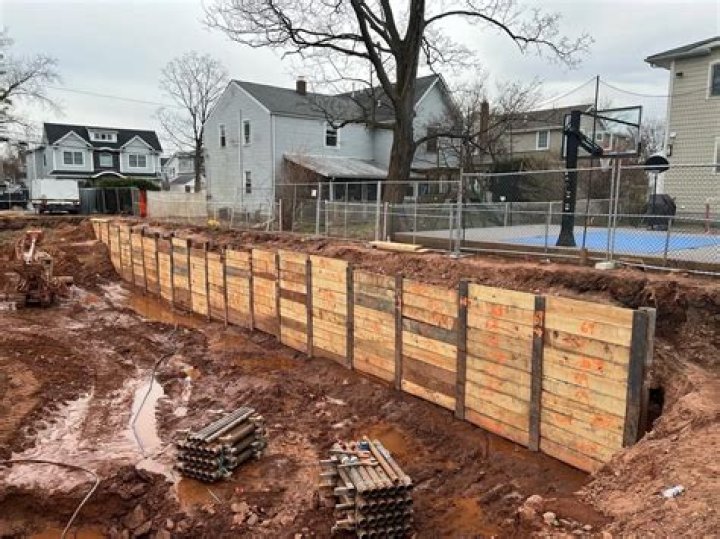

Soldier pile and lagging.Soil nailing.

What are the 4 main types of support used at the sides of excavations?

Such excavation support systems comprise tiebacks, cross-lot steel struts, rakers, helical anchors, and top-down concrete slabs. The role of a support system in an excavation is to provide lateral bracing for the retaining walls.

Is a structure that supports the sides of an excavation and protects against cave in?

Shoring: a structure that supports the sides of an excavation and protects against cave-ins.

What is an excavation support system?

Excavation support systems are temporary earth retaining structures that allow the sides of excavation to be cut vertical or near vertical.

What are the methods of excavation?

• Topsoil Excavation. As the name suggests, this type of excavation involves the removal of the exposed or the topmost area of the earth’s surface. …
• Rock Excavation. …
• Muck Excavation. …
• Earth Excavation. …
• Cut and Fill Excavation. …
• Trench Excavation. …
• Basement Excavation. …
• Dredging.

What are excavation supports?

Excavation support systems are used to minimize the excavation area, to keep the sides of deep excavations stable, and to ensure that movements will not cause damage to neighboring structures or to utilities in the surrounding ground. … Here the sheet pile wall around a building excavation is supported by pipe struts.

What is earth support system in construction?

Lateral earth support structures provide side support to a shoring wall by holding the planned lateral loads during an excavation. These support structures stabilize soil and rock from erosion and downslope movement while providing support for both vertical and near-vertical grade changes.

What are the precautionary measures taken for deep excavation?

• Prepare firm and broad approach road. …
• The nail should not be lying around, after the completion of layout work.
• Barricade the site to restrict the entry of animal and the unauthorised person on site.
• Ensure that workers are wearing personal protective equipment.

When should an excavation be supported?

The basis of the rule is that, if a trench is under 1.2m deep, then people can enter the trench without the sides of the excavation being supported or battered back. This rule is no longer something that should be considered. 1.2m is no longer the threshold for the need to support an excavation.

What is a slurry wall used for?

Slurry cutoff walls are nonstructural underground walls that serve as a barrier to the horizontal flow of water and other fluids. This technique is typically used to build walls surrounding tunnels and open cuts, and to lay foundations. It is constructed with the aid of a viscous stabilizing fluid known as slurry.

Article first time published on

What factors determine what is appropriate support system to use for the excavation walls?

• Soil type.
• Depth of cut.
• Water content of soil.
• Changes due to weather or climate.
• Surcharge loads (e.g., spoil, other materials to be used in the trench) and.
• Other operations in the area.

What is excavation in construction?

Excavation is the process of moving things like earth, rock, or other materials with tools, equipment, or explosives. It includes earthwork, trenching, wall shafts, tunneling, and underground. … Construction is one of the most common applications for excavation.

What are the three main protection methods against cave-ins quizlet?

There is usually some form of warning before a cave-in. OSHA requires that all excavations in which employees could potentially be exposed to cave-ins be protected by one or more of the following three methods: Sloping, benching, shoring, and shielding.

What are used to prevent soil movement and cave-ins during the excavation of earth?

Shoring requires installing aluminum hydraulic or other types of supports to prevent soil movement and cave-ins.

What are the three main protection methods against cave-ins?

• SLOPE or bench trench walls.
• SHORE trench walls with supports, or.
• SHIELD trench walls with trench boxes.

What are the 3 types of excavation?

• Earth excavation is removal of the layer of soil immediately under the topsoil and on top of rock. …
• Muck excavation is removal of material that contains an excessive amount of water and undesirable soil. …
• Unclassified excavation is removal of any combination of topsoil, earth, rock, and muck.

What are two methods of excavation?

• Shielding.
• Shoring.
• Benching.
• Battering.

Which ground requires immediate support of excavation?

This system is used in extremely loose and soft ground, which needs immediate support as excavation progresses. The system is similar to vertical sheeting of box system, except that in the place of vertical sheeting, runners, made of long thick wooden sheets or planks with iron shoe at the ends, are provided.

What is lateral support system?

Lateral support, a type of support (structure) to help prevent sideways movement.

What is cut and fill excavation?

In excavation, cut and fill is the process of constructing a railway, road or canal whereby the amount of material from cuts roughly matches the amount of fill needed to make nearby embankments, so minimizing the amount of construction labor.

What is trench excavation?

Trench excavation A trench is an excavation in which the length greatly exceeds the depth. Shallow trenches are usually considered to be less than 6 m deep, and deep trenches greater than 6 m. Trench, or footing, excavation is typically used to form strip foundations, buried services, and so on.

What is surface excavation?

surface excavation is simply the excavation of surface soil up to a depth of 150 to 200 CM. Surface excavation is mainly used for civil construction and geotechnical purposes. The soil exposed to climatic conditions is analyzed with RS2 for stress deformation, surface design, and stability of the soil.

What is sheet pile foundation?

Sheet pile walls are thin retaining walls constructed to retain earth, water, or any other fill material. They are typically thinner than masonry or reinforced concrete retaining walls such as cantilever retaining walls and can be constructed using materials such as steel, concrete, or timber.

When should an excavation be supported HSE?

The law says you must prevent danger to workers in or near excavations. To maintain the required precautions, a competent person must inspect excavation supports or battering at the start of the working shift and at other specified times. No work should take place until the excavation is safe.

What are the control measures of excavation?

Falls of material into the workings can also be prevented by not storing spoil material near the top of the excavation. The workers should wear hard hats. If the excavation is more than 2 m deep, a substantial barrier consisting of guardrails and toe boards should be provided around the surface of the workings.

What is best suited for accessing an excavation?

HSE recommend numerous ways to comply with ‘safe access’; obvious methods are the use of a ladder, stepping back an excavation and benching a slope to provide a walkway into the trench. … We now consider this method as the best way to access excavations.

What is guide wall?

Guide walls are cast-in-place or pre-cast lightly reinforced concrete elements. Guide walls maintain the horizontal alignment and wall continuity of a diaphragm wall while are adopted to avoid superficial soil collapse, to mark the panels position and to support the steel cages during the concrete aging.

What is a cutoff wall used for?

Encapsulation also termed liner, barrier, or cutoff wall technique is similar to surface capping and sometimes used as an alternative to surface capping. This technique involves the isolation of the contaminated field and the enclosure of the pollutants.

What is a bentonite wall?

Bentonite is a naturally-occurring material created by the alteration of volcanic ash in marine environments. … Bentonite’s thixotropic properties mean it forms a highly water-resistant gel which, when mixed with additives, can create a permanent barrier to water flow.

What are the rules for careful excavation?

• Inspect trenches daily before work begins. …
• Check weather conditions before work, be mindful of rain and storms.
• Keep heavy equipment away from trench edges.
• Be mindful of the location of utilities underground.
• Always wear proper protective equipment.
• Don’t work beneath raised loads.

What are the primary types of protective systems?

OSHA identifies three basic types of protective systems: shielding (devices designed to protect workers in the event of a collapse, such as trench boxes); shoring (bracing designed to prevent collapse, such as hydraulic shoring or slide-rail systems); and sloping or benching trench walls away from the trench bottom at …
