Remove the alligator clip from the spark plug and clamp it onto a bolt on the leaf blower’s cylinder head. Pull the starter rope; if you see a bright blue spark jump across the tester window, the spark plug is defective and must be replaced.

How do you test a leaf blower coil?

Remove the alligator clip from the spark plug and clamp it onto a bolt on the leaf blower’s cylinder head. Pull the starter rope; if you see a bright blue spark jump across the tester window, the spark plug is defective and must be replaced.

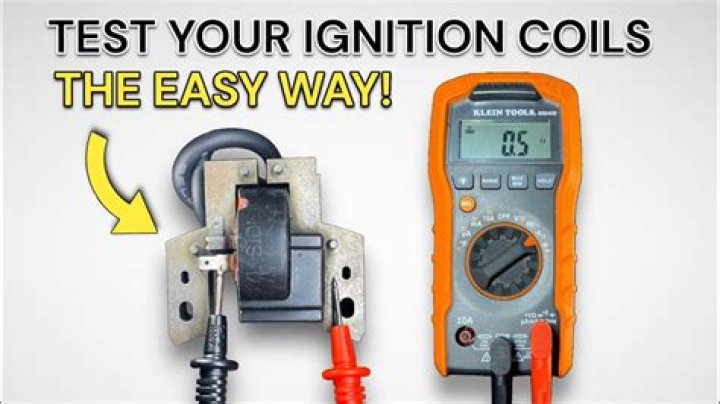

How do you check a coil with a multimeter?

Insert one of the multimeter’s probes into the center opening of the coil, contacting the metal terminal inside the coil. Touch the second probe of the meter to the ignition coil’s grounding terminal. The meter should read 6,000 to 15,000 ohms. If it does not, the coil’s secondary winding is faulty.

How do you check a coil to see if it's bad?

1. Plug the tester into the coil.
2. Attach the ground wire.
3. Plug in the coil connector.
4. Adjust the spark gap to the correct measurement.
5. Start the engine.
6. If there’s spark, great, it works! If there’s no spark, it’s a bad coil.

What should the ohms be on a coil?

The ohms level is a way of measuring a level of electrical resistance. The standard or regular level of ohm when it comes to vaping and your clearomizer is between 2.4 and 2.8. This is by far the most common ohm range chosen by those looking for replacement coils, with the most commonly chosen being 2.5.

How do you test a coil on a small engine?

To test the operation of both the ignition coil and the spark plug, connect the tester between the spark plug boot and the spark plug. Then start the engine and watch the tester window. A spark plug misfire will immediately be evident in the tester window.

How much voltage should be on the negative side of the coil?

If the points are closed, then the voltage at the negative side of the coil will be zero volts. If they are open, the voltage will be 12. With electronic ignition and the engine not rotating, there will be 12 volts on the negative terminal of the coil.

Can you test a magneto with a multimeter?

Set the multimeter into the ohms function, or just use an ohmmeter. Manually set the dial or button on the meter to the 40 k range. Do not use auto ranging, as it is unreliable with a magneto. … Replace the magneto if the meter reads “OL.” This indicates an internal short in the magneto.

How many ohms should a 12 volt coil have?

You should have a resistance reading of at least 3-4.5 ohms. A bad coil will show a higher reading then 3-4.5. Next, place the red or black lead from the meter to the centre of the coil , and to either one of the terminals positive or negative. You want 9500-10000 Ohms, a little less is ok but no more.

Why is my ignition coil not firing?

If the ignition coil does not have spark, it’s time to check its wires. Use a test light to check the continuity on the signal wire and power wire on the ignition coil. If both wires are functional but the coil fails to produce spark, the ignition coil or the ignition control module is bad.

Article first time published on

What sends power to the coil?

A gasoline-powered vehicle’s ignition coil gets power initially from the starter battery and, once the engine is up to speed, from the generator (usually an alternator with rectified DC output). Of course, the alternator charges the battery so you could argue that the ignition coil always gets power from the battery.

Does a ignition coil need to be grounded?

Let me disagree with other answers: An Ignition Coil does not need to connect to ground. It needs to be capable of receiving electrical pulses on its input. It is , after all, a transformer and the primary winding is pulsed to make a HV spark on the Secondary winding.

How do you test a flywheel magnet?

Mark the magnets on the flywheel by labeling them in the position they sit with a small piece of masking tape on the flywheel. You can test the magnets for position by using another small ceramic magnet. If the magnet is repelled, label the flywheel magnet R, and if it is attracted, label the flywheel magnet A.

How do you test if a magneto is working?

Basically, a spark tester looks like a spark plug with a large alligator clip. Hook the device to a plug wire, and connect the clip to ground. When the tractor is cranked, the tester will flash if you have sufficient spark.

What are the symptoms of a bad magneto?

Most “bad mag checks” are spark plug related. The spark plug is fouled and shorted to ground or is open and the magneto, which is functioning normally, is unable to fire it. A typical bad plug will cause an immediate drop of 250 or more RPM, at the mag check. The key indicator is the suddenness of the drop.

What tells the coil fire?

The low voltage primary circuit operates at battery voltage (12 to 14.5 volts) and is responsible for generating the signal to fire the spark plug at the exact right time and sending that signal to the ignition coil.

How do you know if your spark plug is bad on a leaf blower?

1. The engine requires repeated attempts to start or the engine won’t start at all.
2. The engine misfires or runs rough.
3. The engine starts, but stalls shortly after.
4. There is a noticeable increase in fuel consumption during normal equipment use.

Why is my 2 stroke backfiring and not starting?

If your two-stroke is not starting or else backfiring a lot when it does, this could mean that your fuel pump is clogged or damaged. … When your fuel pump is malfunctioning, there is typically too little fuel being pumped to the cylinders. The lack of fuel makes it difficult for the cylinders to fire properly.

Can you test a coil pack?

Coils are sensitive to heat and may produce an intermittent problem if their internal components become weak. Once the winding inside weakens or breaks, the problem is irreversible. However, you can test the coil pack on your car using a voltmeter.
