Testing, testing Technicians need to test and inspect fire dampers one year after installation and every four years after that, except in hospitals, in which the frequency is every six years, according to NFPA 80. … Successful operation during the test will verify there is no interference due to rust or damaged blades.

Can you test fire dampers?

Testing, testing Technicians need to test and inspect fire dampers one year after installation and every four years after that, except in hospitals, in which the frequency is every six years, according to NFPA 80. … Successful operation during the test will verify there is no interference due to rust or damaged blades.

How often do fire dampers need to be tested?

NFPA 105(10), Sec. 6.5. 2 requires that each damper be tested and inspected 1 year after installation and that the test and inspection frequency then be every 4 years, except for hospitals, where the frequency is allowed to be every 6 years.

How do you test a damper?

Put the damper into an open position and check the registers once again to see if the airflow starts. If the damper is closed and you are feeling low airflow, or none at all, it is most likely a bad damper. For the automatic control damper, turn your HVAC system on. Check for airflow in the registers.

How do you test a smoke damper?

The essential test is that the damper will open and close and no obstructions are present. NFPA 729 is referenced when any smoke detection is present. The operation must be under the airflow conditions that the system will encounter.

How do you reset a fire damper?

To reset a damper, each stainless-steel blade is repositioned by pushing back the latch under spring tension. Once all the blades have been pushed back, the latch springs out to secure them.

Is fire damper testing statutory?

Under the Regulatory Reform (Fire Safety) Order it is a legal requirement to test fire dampers at regular intervals in accordance with fire safety in the design, management and use of buildings code of practice (BS:9999 2017), using a method known as ‘drop testing’.

Do fire dampers need servicing?

How often do fire dampers need to be inspected? It is recommended that each fire damper must be tested and inspected one year after the installation.

How can you tell if the flue is open?

• Feel for a Draft Before lighting a fire, you can tell if the damper is open by placing your hand into the fireplace. If you feel a draft coming down the chimney, it is a good indicator that the damper is open. If you don’t feel any cold air coming down the chimney, it means that the damper is closed.

Which test generally performed after installation of fire damper?

An operational test must be completed once the fire damper is installed.

Article first time published on

Can fire dampers be painted?

Damaged or fused links can cause a damper to close, shutting off airflow unnecessarily, or hold the damper open and prevent it from fully closing when needed. During construction or remodeling of a facility, fusible links can be painted over, which will affect their ability to melt at the proper temperature.

Do you need a fire damper in a one hour rated wall?

Q: Are fire dampers required in one-hour fire-rated walls if the facility is fully sprinkled? A: According to NFPA 90A (1999 edition), one-hour fire-rated barriers do not require fire dampers in fully ducted HVAC systems, unless the one-hour fire-rated barrier is a vertical shaft.

How does a fusible link fire damper work?

In general a fire damper works when heat from a fire causes the normal temperature of a room to rise to approximately 165 degrees Fahrenheit i.e. it is designed to close automatically on the detection of heat. The fusible link which is attached to the damper melts causing the dampers’ door to close.

How often should fire dampers be replaced?

BS 9999:2017 also states that: Arrangement’s should be made for all fire dampers to be tested by a competent person on completion of the installation and at least annually, and to be repaired or replaced immediately if found to be faulty.

What does BS EN 1366 cover in terms of fire resistance testing?

Penetration Seals – BS EN 1366-3 specifies a method of test and criteria for the evaluation (including field of application rules) of the ability of a penetration seal to maintain the fire resistance of a separating element at the position at which it has been penetrated by a service.

How often do fire dampers need to be inspected UK?

How Often Should You Conduct Fire Damper Testing? According to British Standard 9999:2017, all fire dampers need to be tested after installation by a competent person and then annually moving forward.

Where fire dampers are required?

Generally, fire dampers are required where air ducts penetrate walls that are rated for 2-hours or more. They are needed in all air transfer openings (non-ducted) in rated walls, regardless of the rating. And they are required at some, but not all penetrations of rated floor assemblies and shaft enclosures.

What is a fire damper panel?

The panel receives interfaces from the fire alarm system to operate dampers to meet the building cause and effect. … All dampers are monitored and the status indicated on the front of the panel. A key-operated switch is included on the panel for test and override functions.

How do you test a Frigidaire damper?

You can hear the damper when it opens and closes as long as the fresh food compartment door is open. If it does not open or close properly you need to check for voltage to the damper when the unit is in the “on” position. If voltage is present, replace the damper. If no voltage is present, replace the control.

How does a damper actuator work?

Actuators in HVAC systems control the dampers. By utilizing a low voltage signal, the actuator places the damper at any point between fully open and fully closed. A critical element of an HVAC system, proper actuators ensure that zone dampers function properly – without them, the dampers won’t function at all.

What's the difference between a damper and a flue?

The flue is simply the open middle of the chimney that the smoke goes up. … A damper is intended to shut off– either fully or partially- the chimney flue. The reason you’d want to do that is to keep heat ($$$) from escaping up the chimney.

Is my damper open or closed?

A visual check is one of the surest ways of checking whether the damper is open or not. Simply stick your head in the fireplace and look up. If you have a throat damper, the closed damper immediately above your head will block your vision. You should be able to reach up and touch the closed damper.

Should damper be open or closed in summer?

Even if you have a chimney cap, it is a good idea to keep the damper closed in the summer. Chimney caps can become damaged creating a pathway for rainwater or pests to get into your chimney. Closing the damper will ensure that they can’t get into your home through the fireplace.

How does HVAC damper work?

HVAC dampers work by being situated closer to the mouth of the distribution pipe and will push or hold air from that point as needed. The pressure in the pipe will then redistribute the airflow to whatever zone requires regulating at that time.

How much does a damper motor cost?

The cost for a new motorized damper can range anywhere from $100 to $200. The installation process will take a contractor around two hours and will bring between $150 and $250 in labor costs.

Who inspects fire dampers?

Fire Damper Inspection & Smoke Damper Inspections Authorities Having Jurisdiction (AHJ’s) such as the Joint Commission, fire marshals and insurance risk auditors enforce these requirements.

What is fire damper maintenance?

Fire dampers should be inspected annually as a minimum for correct function and condition in line with the Regulatory Reform Fire Safety Order 2005 and physically cleaned when required. Inspection and functional testing of smoke/fire dampers should be separately specified.

What is DW145?

BESA Product Code: DW145 It identifies, clearly and concisely, the matters that must be addressed when fire and/or smoke dampers are to be installed within a building’s ventilation ductwork system.

What NFPA 105?

NFPA 105, Standard for Smoke Door Assemblies and Other Opening Protectives, offers designers, engineers, installers, and contractors the most comprehensive requirements for the performance of required smoke door assemblies, smoke dampers, and other opening protectives that are intended to limit the spread of smoke.

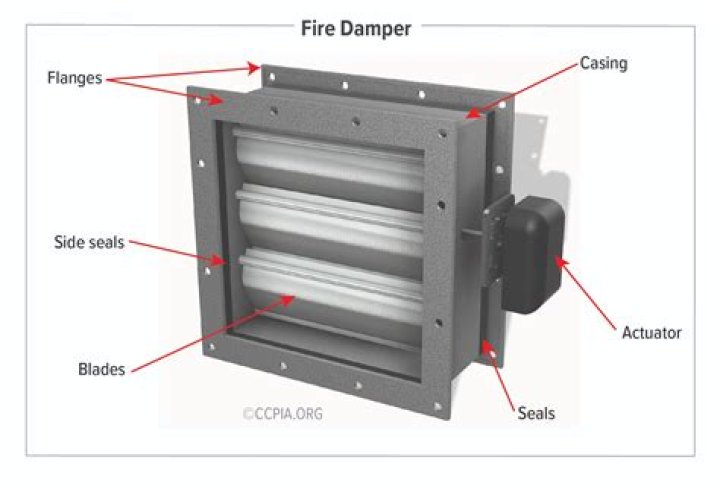

What is fire damper in HVAC?

Fire dampers are passive fire protection products used in heating, ventilation, and air conditioning (HVAC) ducts to prevent the spread of fire inside the ductwork through fire-resistance rated walls and floors.

How much does a fire damper cost?

The average cost of fire damper testing and inspections is between $40-$150 per fire damper.
