Touch the bare metal on top of each fuse with the test light’s probe. If the 12-volt test light illuminates, there is current at that connection. Touch the bare metal inside each fuse holder if you are looking for a spare fuse location that has a current.

How can you tell if a fuse box is bad?

Touch the bare metal on top of each fuse with the test light’s probe. If the 12-volt test light illuminates, there is current at that connection. Touch the bare metal inside each fuse holder if you are looking for a spare fuse location that has a current.

How do you tell if a fuse is blown with a multimeter?

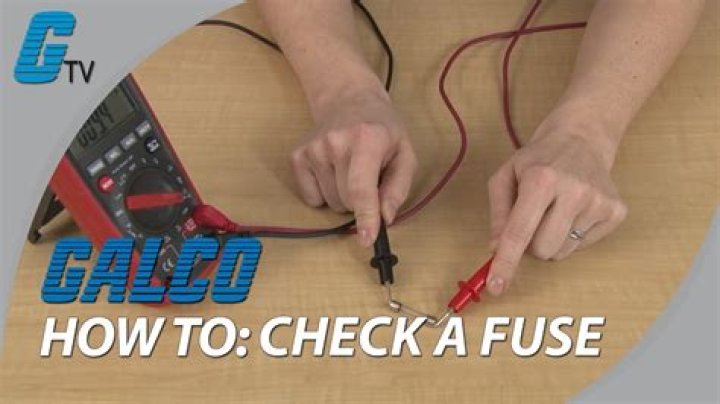

Place the multimeter on the ohmmeter setting and place the probe leads across the 2 ends of the fuse. If the reading you get is very low, a few ohms, then the fuse is continuous and, thus, good. If the reading is get is very high, such as severeal Megohms, the fuse is broken and, thus, bad, and should be replaced.

How do you tell if a fuse is blown without a multimeter?

To test a fuse without multimeter, take a flashlight equipped with a flat battery. Unscrew the bulb and get the battery. Place the fuse of one of the battery “blades” and the base of the bulb on the other side of the fuse. Put the bulb pad in contact with the second “blade” of the battery.

How do you know if a fuse has power?

Locate the small holes on each end of the blade-type fuses; those holes give you access to the blades inside the fuse. Insert the pointed tip of the red test lead first in one hole and then in the other. If you read 12-volts to ground on one end but not the other, the fuse is blown and needs to be replaced.

How do you test a circuit breaker with a multimeter?

1. Turn the car off then access the fuse box. …
2. Remove the shortstop circuit then test it with a multimeter.

Can a fuse test good but be bad?

The only way to tell if a fuse is good or bad is to remove it from the circuit and test it with VOM meter on the resistance scale. A good fuse will have no resistance whereas a bad fuse will read infinite resistance.

Can you check fuses with a test light?

Always use the proper test light or voltage meter to check the vehicle’s fuses. … Clamp the end of the test light or the negative cable of the voltage meter to a good ground close to the fuse box. Check one end of the first fuse. It should light the test light or show 12.6 volts or so on the voltage meter.

Can a fuse go bad without blowing?

Due to the way fuses are engineered, the likelihood that a fuse would become faulty without blowing is pretty slim, but there are rare instances in which a fuse might appear completely fine, even though no current runs through it.

How do you test a relay fuse with a test light?

Use a high impedance test light to test that the relay is receiving power. Connect the alligator clip from the light to a suitable ground. Probe the wire from the relay to the component it controls. If the bulb lights, then there is power leaving the relay, and it is working properly.

Article first time published on

How do I know if my white fuse is blown?

A homeowner can determine if a glass fuse in blown by performing a visual inspection and looking for a break in the thin wire and a brown discoloration in the center of the fuse. A ceramic fuse, however, shows no damage upon visual inspection. Testing a ceramic fuse is the only way to tell if the fuse has blown.

How do you test a house fuse?

Lay the rubber mat on the floor in front of the fuse box and stand on it. Open the box door and turn on the flashlight to inspect the fuses. Look closely at each fuse. The window on a good fuse will be clear.

How do you know if a circuit breaker needs to be replaced?

You will need to replace a circuit breaker if it is hot to touch, has a burning smell or you can see visual damage such as black or burned material or frayed wires. Quality circuit breakers should last a long time. The circuit breaker device doesn’t necessarily cause every electrical problem or short circuit.

What kind of test is performed to check if the fuse in the safety switch is blown?

To check if the fuse is blown, use a multimeter. Set the multimeter on continuity mode. It may vary depending on the meter used but look for a rectifier diode symbol. To test the fuse use a multimeter AXIOMET AX-MS8221B.

Can you replace a fuse yourself?

Luckily, fixing a blown fuse is a relatively easy DIY home repair. All you need is some basic knowledge about your fuse box and a quick trip to the hardware store and you’ll be back in business. As always, abide by the proper safety measures when working with electricity.

Do Fuses have a lifespan?

Typically fuse use shelf life / life expectancy is 10 years.

Can a bad fuse drain a car battery?

However, if there’s an electrical problem – such as faulty wiring, poor installation, and defective fuses – parasitic drain can exceed what’s normal and deplete the battery.

What would cause a fuse to keep blowing?

First, and most commonly, when too many lights or plug-in appliances draw power from the circuit, it can overload the capacity of the fuse and cause the metal ribbon inside the fuse to melt through. … A mis-wired lamp, for example, can cause a short circuit and blown fuse if it is plugged into an outlet.
