A few signs that your ATV’s stator is bad include loose, faulty, or dirty connectors and a battery that will charge with a separate charger but not while the ATV is in use.

How do I know if my ATV stator is bad?

A few signs that your ATV’s stator is bad include loose, faulty, or dirty connectors and a battery that will charge with a separate charger but not while the ATV is in use.

Can you repair an ATV stator?

Fixing an ATV Stator Fixing a stator usually involves unwinding and cleaning the original stator core, then rewinding it with a machine or carefully by hand. It starts with looking at the coil heads for damaged or burned wires, then cutting out the protective rubber coating from damaged coils.

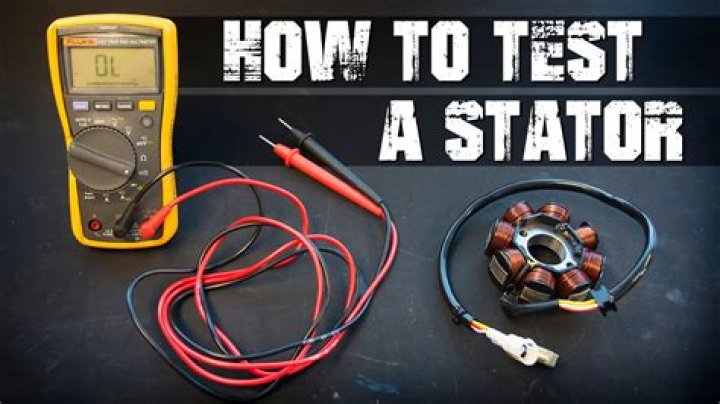

How do you test a stator on a four wheeler?

1. Place one meter lead in the connector and the second on the body of the stator.
2. Your meter should read “OL” or open line. If the multimeter is picking up a reading, it means your stator needs to be replaced.
3. Repeat this test for each of the windings.

Can you fix a stator?

In many cases a new stator is the safest, most cost-effective solution for an electrical system breakdown. Because repairing stators can be an intricate and detail-intensive process, replacing failed stators with an entirely new part can be a much easier route, depending on the specific motorcycle.

How many volts should a stator put out?

For each 1000-rpm, a 32-amp stator should have 18 volts AC (VAC) per it. It should be 36 VAC by 2000. 54 VAC is what it should be at 3000 RPM.

What tests can be performed on a stator?

1 lists the recommended tests for stator and wound rotor windings. They are insulation resistance (IR), winding resistance, growler, phase balance, surge comparison, polarity and ball rotation tests.

What does a rectifier do on a quad?

What Does a Rectifier Do? The rectifier has an important job for your ATV. It helps turn AC voltage into DC voltage, which will help your battery keep a charge. This will allow your ATV to run better for longer.

Will ATV work without battery?

ATVs can run on a dead battery when their engine and starting system are mechanical rather than electrical. When an ATV has a pull start, the engine can function without the electricity supplied by a battery. This will allow a “bump” start to restart the engine.

How do you know if you have a bad rectifier?

You’ll note signs right away like poor starts, fluctuating meter readings, and dimmed headlights. around 13 volts, the bike will start to drain the battery. When this happens, it’s only a matter of time before the engine stops completely.

Article first time published on

How do stators work?

The stator is the coil of wire housed inside the engine case. A magnet on a shaft spins within the stator, creating alternating current (AC). That current travels along fairly heavy gauge wire through the case and into the rectifier/regulator which converts it to DC power, and at a consistent output.

Does a stator charge the battery?

In simple terms, the battery provides this power. The battery would quickly be depleted, though, if not for the star of the charging system show, the stator. Think of your stator as the piece that makes electricity to keep your battery charged up to make all that electrical stuff on your bike work.

Is a stator and magneto the same thing?

The stator and the magneto really can be thought of as the same thing. Simply put the stator is the stationary, wire wound portion of the power generation system. Magneto is the common name used when describing a permanent magnet to produce alternating current.

What is the output of a stator?

When working properly, the three windings produce three currents that make up the three phases. Adding all three together produces the total AC output of the stator. The two basic stator winding designs are delta wound and wye style. Delta wound are easily identifiable by their shape, as they’re triangular.

What causes a stator to fail?

When a stator fails, it is largely due to the degradation or aging of its insulation through external occurrences and materials being introduced into its system.

Should stator have ground continuity?

Yes, time for a new stator. The windings should not have any continuity to ground.
