Tighten the sway bar link nut using a combination wrench to hold the bolt head and a torque wrench and socket to tighten the nut. Use caution when tightening the link: it only requires light torque, typically 10 to 20 foot-pounds.

Is a sway bar supposed to be loose?

The stabilizer bar links are supposed to fit incredibly snugly, without any play or movement except between rubber bushings. When the links are worn out, the sway bar will begin to make these sounds especially when you’re driving around corners or over a speed bump.

Should sway bar bushings be tight?

The hole in the bushing should be the same size as the diameter of the sway bar. It should be a tight fit.

How tight should sway bar be?

You would make it about as tight as you think it needs to be and then tow the trailer to see if it needs to be tighter or looser. If you made it as tight as you can then you would not be able to move the bar by hand but the force of the trailer pushing it around can move it.

Can you drive with loose sway bars?

If you suspect that a sway bar is broken, you can still drive the car, but you must use caution. … It will feel “looser”, particularly when driving at high speeds. It’s very possible that this will cause you to lose control of the car, resulting in a serious accident if you’re not prepared for it.

What do shorter sway bar links do?

Your shorter/lower mounted endlinks should make the bar stiffer, less torque at the attachment point than a longer endlink.

Should sway bars be tightened under load?

The shop manual says that the sway bar needs to be loaded before tightening. There might be a very slight tension difference in the sway bar.

When should I replace my sway bar links?

Now, when it comes to the overall lifespan of the sway bar link, it will be from four to five years. However, if the roads have treated the car exceptionally well and the turns were not that sharp, you can expect them to last over five years.

How do you tighten sway bar bushings?

Tighten the sway bar link nut using a combination wrench to hold the bolt head and a torque wrench and socket to tighten the nut. Use caution when tightening the link: it only requires light torque, typically 10 to 20 foot-pounds.

What is stabilizer bushing?

The stabilizer bar on your car is designed to absorb bumps and reduce noise when you’re driving. They feature rubber bushings that prevent your vehicle from rolling as it corners. Sway bar bushings wear out over time and can cause issues with steering and handling. … These bushings fit 1984-1997 American vehicles.

Article first time published on

Does sway bar affect alignment?

Sway bar end links, or anything to do with a sway bar, won’t affect wheel alignment settings. Most places don’t have an option anymore about 2 or 4 wheel alignments.

Does sway bar make noise?

Sway bar links connect the two sides of the suspension together with the sway bar. … If the sway bar link breaks and loosens, it can make a rattling or clunking sound as it taps other parts of the suspension.

How do I know if my sway bar is bad?

1. Clunking noise.
2. Rattling noise.
3. Knocking sound on uneven road.
4. Lack of stability when driving.
5. Noise going over speed bumps.
6. Poor handling when turning.

How do I know if my sway bar end links are bad?

popping or knocking noise: a popping or knocking noise from the area when you go over bumps is the most common sign of a faulty sway bar link. these sounds will typically come from the area near the front tires. reduced handling: a broken sway bar link means the sway bar is no longer attached to the vehicle.

How many sway bar links are on a car?

A sway or stabilizer bar prevents the car body from leaning too much and keeps the vehicle stable when driving in turns. Most of the cars have one sway bar in the front and another separate sway bar in the rear suspension. Sway (stabilizer) bar link. Some cars have only one sway bar in the front suspension.

Do sway bar links need adjustable?

You will need to make those adjustments according to your vehicle’s set up and ride height. Your primary purpose with the shortened, adjustable end link is to ensure that your sway bar or end link does not contact any other suspension or driveline components when you have installed the lowering Raceland coilover.

Do sway bars have to be parallel?

They both should be parallel with the ground. X2 if they are not parallel the sway bar will not work at it’s optimum, a few degrees either way won’t make much difference. The rear is less important as it does not do as much work, you can remove it, get longer/adjustable links, or live with it as it is.

How do adjustable drop links work?

So there you have it, adjustable drop links that are uprated are not just for show. They enable you to set the length of the link to ensure the load is carried correctly, and set the length of the link to ensure there is no preload.

Do I need shorter end links?

In order for this to happen after you just lowered your car, you need a shorter sway bar end link because now the suspension geometry including suspension lengths have changed. … Whether it adds preload to the sway bar (and therefore the suspension) depends on the chassis, application and how much you lowered the car.

Can a bad sway bar cause shaking?

No, sway bar cannot cause vibrations. It can transmit them, but not cause them.

Do front sway bars wear out?

Many cars have anti-sway bars in both the front and rear. The bars themselves rarely wear out while the “end links” with bushing do wear out eventually. As these wear, the car will sway more in corners, reducing the handling characteristics.

What is the difference between a stabilizer bar and a sway bar?

sway bars keep the two front/rear tires close to the same extension. Thus keeping the center of gravity lower, so it won’t role over on it’s side as easy. Stabilizer bars keep the caster/camber from wobling all over the place, and I don’t think are used on buggies.

What do anti roll bar bushes do?

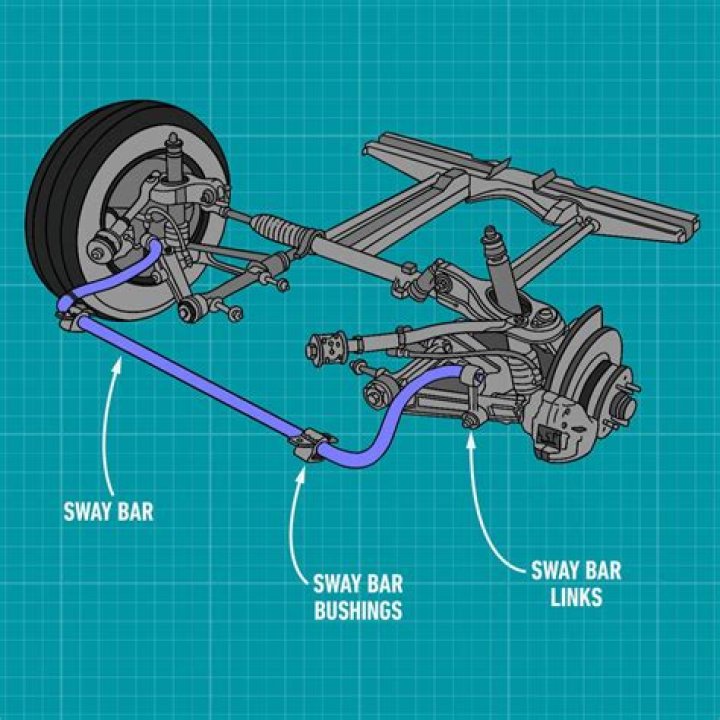

An anti-roll bar (roll bar, anti-sway bar, sway bar, stabilizer bar) is a part of many automobile suspensions that helps reduce the body roll of a vehicle during fast cornering or over road irregularities. It connects opposite (left/right) wheels together through short lever arms linked by a torsion spring.

Will sway bars affect tire wear?

A sway bar will affect tire wear and can even make your car handle worse. IF, there are other suspension bushing that are worn or compromised. Upgrades to the suspension and chassis are only a benefit if the rest of the car is healthy.

Can sway bars bend?

Registered. Sway bars are spring steel. You aren’t going to bend one – especially a front one – if you haven’t been in a major impact.

Can a broken sway bar affect tire wear?

Broken anti-sway bar end links do not cause tire wear.
