Slide a metal crimp sleeve over one end of a piece of PEX tubing. … Slide the properly-sized crimp gauge over the crimped sleeve. … Close the jaws of the crimp tool until you feel resistance.Set the crimp tool on top of a steel rule.

How do you adjust a PEX Clamp Tool?

1. Slide a metal crimp sleeve over one end of a piece of PEX tubing. …
2. Slide the properly-sized crimp gauge over the crimped sleeve. …
3. Close the jaws of the crimp tool until you feel resistance.
4. Set the crimp tool on top of a steel rule.

How do you calibrate a crimp tool?

The most common way to calibrate the crimp tool is to use a ‘Go/No-Go’ gauge to check the size of the crimp opening. The ‘Go/No-Go’ gauge will have two different pin gauge sizes installed based on the manufacturer’s specifications.

Can you adjust PEX crimpers?

The tool can be adjusted 5 times. All crimp tools wear, which increases the crimp diameter after many crimps . When your crimp start to approach the maximum ring diameter, then adjust to hex pin in the moving jaw.

Is it better to crimp or clamp PEX?

If you are looking for a fast and more secure connection that will stand the test of time, crimp tools are your better option. But if you want more flexibility without working more, go for PEX clamps.

Why are my PEX fittings leaking?

When water flows through your PEX pipes, the zinc in the fittings can seep out of the fittings, causing a white residue to build up inside the pipe, constricting water flow. … It also causes fittings to crack or break, leaking water within your walls or underneath your house.

Can I install PEX without a crimp tool?

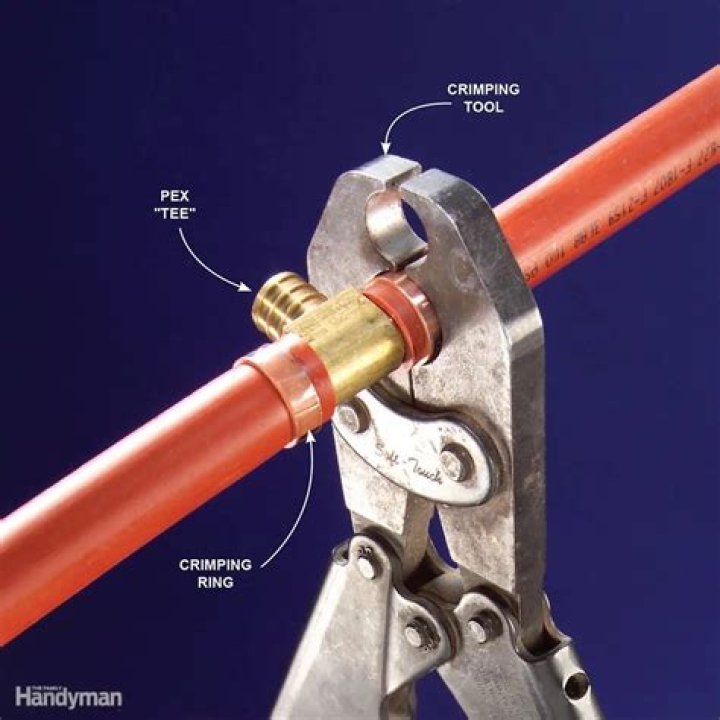

Connections for most PEX supply jobs require a special tool. There are several PEX supply connection methods, but only two affordable enough to be practical for DIYers: crimp rings and cinch clamps. Crimp rings are a band of metal, usually copper, that you slip over the fitting and compress with a crimp ring tool.

What causes PEX pipe to leak?

PEX failures Piping fails when the pipes are exposed to chlorine that is within the water, exposure to direct sunlight before its installation. … It can leach toxic chemicals from pipe material also. On the other hand, fitting failure is caused by dezincification that results to corrosion and finally creating leaks.

How do you tighten plastic plumbing fittings?

Once the sealant is applied to your threads, insert the male end into the female fitting. Once the pieces are together, tighten the connection by hand slowly until the fitting will not turn any more. At this point, you can use a wrench to complete one or two more turns. Do not tighten your fitting past this point.

Do crimp tools need to be calibrated?

Although a crimp tool is not a measuring device, the tool and dies should be calibrated and maintained in accordance with the required standards and manufacturer’s recommendations to assure crimp security and quality. Crimp tools should be calibrated annually or at approximately 10,000 crimps, whichever happens first.

Article first time published on

How do you calibrate a ferrule crimper?

Calibration Proceedure: Wire is inserted in corresponding terminal and crimped. Crimped terminal is loaded on testing device. Crimped terminal is pulled until it reaches its target value, then kept at that value for 60 seconds. Testing Device pulls crimped terminal until wire snaps off the terminal.

Which is better PEX cinch or crimp?

The stainless steel Cinch Clamps are stronger than the copper Crimp Rings. I know this from personal experience after working with frozen water lines. When the fitted connection freezes with water in the line it will cause the copper Crimp Ring to expand just enough to cause a leak when it thaws.

Can you use pinch clamps on PEX A?

Using stainless steel pinch clamps, also referred to as ear clamps, are a great way to connect PEX pipe to PEX fittings. Connections made using SS Pinch Clamps with an interlocking design provide the same high integrity connection as a copper crimp ring connection.

Can I use crimp rings on PEX A?

Crimp fittings require copper or stainless steel crimp rings and a PEX crimp or clamp tool. … Crimp fittings are compatible with all types of PEX tubing, except for PEX-AL-PEX. Crimp fittings are preferred for many applications since they are widely available and are the most affordable.

Can I use expansion fittings on PEX B?

PEX B is not expandable and you should never expand the end of a PEX-B pipe. Kink-Resistance – PEX-A has the greatest resistance, PEX-B the lowest. You should never install kinked pipe.

Can you over tighten hose clamps?

Over tightening will cause damage to the layers of the hose and, while not being an immediate problem, it will result in hose failure sooner than normal. If using gear type clamps, it is best to tighten with a flat screwdriver, rather than a socket head, which will control, to some degree, how tight you can make them.

How tight should I tighten hose clamps?

About 50 in/lbs, which is about in the “snug” area with a screwdriver handle used for doing the tightening. It shouldn’t really dig into the rubber any more than it takes to make a modest depression.

Why is PEX plumbing bad?

Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.

How tight do you tighten PVC fittings?

The right way to assemble a threaded PVC joint-Schedule 40 or 80 is finger tight plus one to two turns-no more. Two turns past finger tight plus the stress of the system pressure is within the tensile strength of one-inch PVC.
