Step 1 – Select radius gauge set. … Step 2 – Decide radius type. … Step 3 – Select blade. … Step 4 – Light object. … Step 5 – Light object (contd) … Step 6 – Check blade radius. … Step 7 – Match blade to object surface. … Step 8 – If necessary, adjust surface.

How do you use a radius gauge step by step?

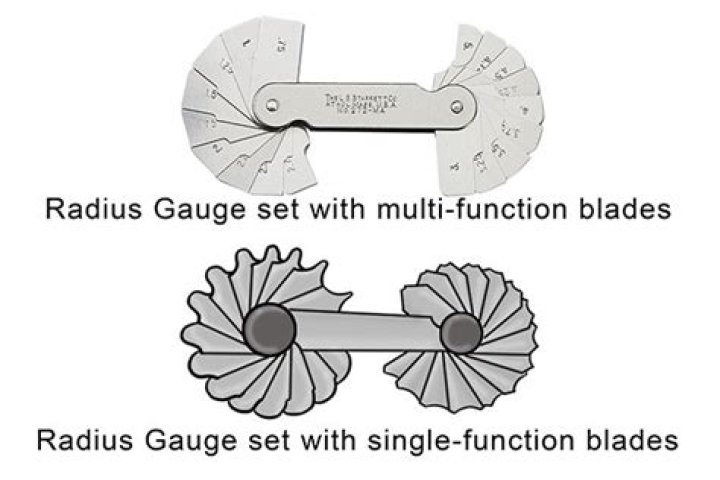

1. Step 1 – Select radius gauge set. …
2. Step 2 – Decide radius type. …
3. Step 3 – Select blade. …
4. Step 4 – Light object. …
5. Step 5 – Light object (contd) …
6. Step 6 – Check blade radius. …
7. Step 7 – Match blade to object surface. …
8. Step 8 – If necessary, adjust surface.

What is a fillet or radius gauge used for?

Fillet or Radius Gage is an external and internal radius on each leaf permits both concave and convex surfaces to be measured. The leaves are specially shaped for use in any position at any angle to measure fillets and radii in corners or against shoulders.

How do you measure a radius gauge?

Radius gauges require a bright light behind the object to be measured. The gauge is placed against the edge to be checked and any light leakage between the blade and edge indicates a mismatch that requires correction.

How do you calibrate a radius gauge?

1. Select appropriate radius chart and mount on optical comparator.
2. Mount the IUT on the worktable of comparator and align with the best-fit radius.
3. Repeat step 2 for each concave and convex radius on IUT. If IUT is one in a set of similar instruments, each IUT must be checked.

How accurate is a radius gauge?

MaterialSteelAccuracy0.1R ~ 3.0R （± 0.03mm） 3.25R ~ 23.0R （± 0.04mm） 24.0R ~ 30.0R （± 0.05mm） 31.0R ~ 50.0R （± 0.08mm）

What are the different types of gauges?

• Plain Type Gauge.
• Snap Gauges or Gap Gauges.
• Ring Type Gauge.
• Limit Type Gauge.
• Pin Type Gauge.
• Caliper Type Gauge.
• Feeler Type Gauge.
• Screw Pitch Gauges.

What is corner radius?

The corner radius is a measurement describing the curve on the corners of your labels. This is measured in millimetres and refers to the radius of the circle created if the curve was extended to create a full circle.

How do you measure the radius of a fillet?

In both cases, the radius of the circle is equal to its x coordinate. The range of t is between some minimum angle and PI/2. At PI/2, the circle is vanishingly small. At the minimum angle, the y value is equal to the opposite radius.

What is the least count of radius gauge?

S.NoProduct DescriptionLeast Count1Digital Radius Guage0.005mm

Article first time published on

What is a radius in machining?

For CNC machining, corner radius refers to the internal radius of the corners of your part. All CNC milling tools have a cylindrical shape and will create a radius when cutting an internal pocket. The radius of the tooling employed during the CNC machining process will determine what corner radii are possible.

Do you need a radius gauge?

To measure the fretboard radius of your guitar, you’ll need a tool called a radius gauge. … Find the guitar radius gauge that matches the arc (or radius) of your neck. Radius gauges usually come in a set, so if you’re unsure which one to use, try a few and pick the one that best matches the arc of your fretboard.

How do I know what gauge my guitar strings are?

There is no easy way to identify the gauge of strings on your guitar unless you purchase a caliper or micrometer to accurately read your strings’ thickness. As a general rule, If you are playing electric guitar, you are most likely playing with extra light or light string set gauges (either 10’s or 11’s).

What is fretboard radius?

Fingerboard radius is the curvature of the fingerboard across the neck, from the lowest string to the highest string, and just like the radius of a circle, it can be described by a number. The exact shape of that arc, from rounder to flatter, is expressed numerically in inches or millimeters.

How do you measure the radius of a Fender neck?

How Do You Measure It? As for the radius itself, in mathematics, the ‘radius’ is the distance from the center to the circumference (or edge) of a circle. In this case, the fretboard is placed at the top of the circle and the arc from one edge to the other is the size of the radius.

Where are gauges used?

a precision ground and lapped length measuring standard. It is used as a reference for the setting of measuring equipment used in machine shops, such as micrometers, sine bars, calipers, and dial indicators (when used in an inspection role). gauge pin is similar to a gauge block.

Why are gauges used?

gauge, also spelled gage, in manufacturing and engineering, a device used to determine, either directly or indirectly, whether a dimension is larger or smaller than another dimension that is used as a reference standard.

Which gauge is to be selected for checking the corner radius of the job?

Fillet gauges are used to check the radius of an object. Radius gauges can also be used for inspection work. 2.

What is difference between radius and feeler gauge?

A radius gage, as you would expect, measures the radius of an object, either by measuring its exterior or interior space. A feeler gage measures the width of a gap. These two gages must be treated uniquely to their purpose and to their calibration needs.

Is used for checking both internal and external radius?

Radius Gauges are also known for Fillet gauges. In metrology, Fillet gauges designed to check/measure both internal and external radii on curved surfaces.
