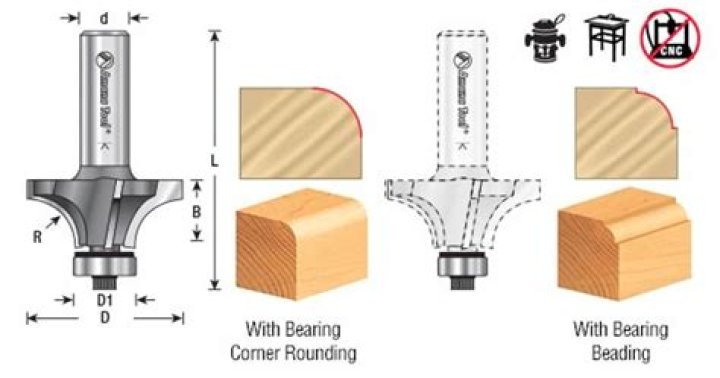

Roundover bits create flush decorative edges perfect for table, drawer or cabinet edges and for small finish moldings. Roundovers are also called quarter rounds and they apply a convex radius edge. By substituting a smaller 3/8″ bearing (83019) an inset at the base of the cut produces a more decorative step.

What are round over bits used for?

Roundover bits create flush decorative edges perfect for table, drawer or cabinet edges and for small finish moldings. Roundovers are also called quarter rounds and they apply a convex radius edge. By substituting a smaller 3/8″ bearing (83019) an inset at the base of the cut produces a more decorative step.

What size round over bit should I use?

In the WOOD® magazine shop we make the greatest use of round-over bits with these radii: 1⁄16″ (for “breaking” edges that need to look crisp and sharp, but feel smooth to the touch), 1⁄8″, 1⁄4″, 3⁄8″, and 1⁄2″. We recommend that you purchase round-over bits with 1⁄2″ shanks if the bit has a 3⁄8″ or larger radius.

Which router bit for round edges?

A chamfer bit is also used to create V-shaped grooves between boards (when two chamfers meet edge to edge they form a V-groove). Chamfer bits come in various sizes and a few different angles. We’d recommend one with a 1-1/4-inch diameter. This is a nonpiloted router bit that cuts round-bottomed grooves.

How do I choose a round over bit?

Roundover bit size is determined by the radius of the curve, these two are 3/4″ bit (above) and 1/16″ bit. The perfect choice for easing sharply squared edges, roundover bits are sized by radius. (Imagine that curved edge as part of a circle — the bit size corresponds with the radius of that full circle.)

What size router bit do I need for 3/4 Wood?

You would use a 1/2″ Radius bit the norm for 3/4″ thick stock.

Can you router plywood edges?

A router will work fine on the edges of either ApplyPly or baltic birch. The glue in the plywood may dull the router bit slightly more quickly than solid wood but if you are only doing one desktop this is not really a factor. From an aesthetic standpoint, you will be able to see the veneer layers on the edges.

What does a bullnose router bit do?

BULLNOSE ROUTER BITS – Woodline USA. Bullnose Bits are the perfect choice for the edges of stair treads, window sills, shelves and more. You can create an oval edge (thumbnail) by using a bit with a bead opening greater than the thickness of the stock.

Can you round over plywood?

You can rout an edge treatment, such as a chamfer, bullnose, or round-over, on the solid-wood banding. The dimensions of the plywood panel equal the “short” (heel-to-heel) dimensions of the banding for making mitered corners when banding all four edges.

How do you use router stair treads?

1. Clamp the tread face-up to a worktable to rout the edge with a handheld router. …
2. Insert a 1/2-inch round-over bit into the router and tighten the collar nut with a wrench. …
3. Put the router base flat against thread and move it to far left.

Article first time published on

Why are the edges of lumber rounded?

During stacking, transport, unstacking, and handling, the rounded edges of construction lumber are less likely to be damaged. … In a production mill, lumber is run at high speed through a planer that smooths the board faces and adds the slight round-over on the edges all in one pass.

How do you bullnose wood without a router?

You need to move or rub the sanding block along the length of the edges and end at a 45-degree angle. Once you reach close to your desired facet, use the sandpaper on the palm of your hand, and round it over slightly. Your hands will bend the sandpaper and contour to give you a rounded shape.

What tool cuts circles in wood?

Using a hole saw is the absolute easiest way to cut circles in wood for your project. All you have to do is lock your hole saw in the chuck of your drill or drill press and start cutting. You can use hole saws to cut circles from ¾ inches up to 7 inches in diameter.

How do you drill a hole in wood without going all the way through?

I usually just wrap a piece of masking tape around the drill bit leaving the correct length exposed. You can either wrap enough layers of tape around so that it is fairly thick, or leave a “flag” of tape sticking out. Either way will let you drill to the proper depth without the risk of marking the surface.

What is the difference between a bevel and a chamfer?

Unlike a beveled edge that joins one part with another, chamfers transition between two right-angle surfaces of the same part. Chamfers always sit at a 45-degree angle, unlike a bevel. Chamfers remove the sharp edges of a part’s 90-degree corner to prevent injury while handling.

What is the difference between a fillet and a chamfer?

A chamfer is the sloped or angled edges or corners of a part design. It is an antonym of the fillet. Instead of having a curved shape, a chamfer is straight and has a sharp angle. … If your design requires sharp corners to be efficient for its purpose, you should choose chamfer over the different fillet mechanics.

What does a chamfer bit look like?

A chamfer is an angled cut made across the corner of a material, to remove the 90-degree edge. It is similar to a bevel cut, but does not extend across the entire profile of the material, instead, it creates a flattened corner. … A chamfer cut can be made using a V-groove or chamfer router bit.
