How do you use a spark gap tester

Disconnect the spark plug lead from the spark plug. Connect your spark plug tester to the spark plug lead. Connect the spark plug tester to the spark plug creating a link from the lead to the spark plug. Start the engine and watch the gap in the spark plug tester to see if there is inconsistent timing.

How do you use a spark plug tester?

How do you check a spark plug for spark?

Test the spark plug ignition by disconnecting the spark plug wire from the spark plug. Hold the end of the spark plug wire close to a metal surface. If the spark plug is good, you will see a spark or you’ll hear a crackling noise. This means that voltage is getting through the wire to the spark plug.

How do I test my spark strength?

The proper method to check for spark is with a spark tester. It resembles a spark plug but has a sunken center electrode that simulates a load on the coil. Holding the plug wire and seeing if a spark jumps to ground is inconclusive. The spark is arcing in atmospheric pressure.

What would cause a spark plug gap to close?

If you are using the correct length spark plugs then a possible cause is that the connecting rod bearings are failing. This allows the piston to rise up farther than normal due to excessive slop in the connecting rod. The piston hits the spark plug and closes the gap.

What are signs of a bad spark plug?

Engine has a rough idle. If your Spark Plugs are failing your engine will sound rough and jittery when running at idle. …
Trouble starting. Car won’t start and you’re late for work… Flat battery? …
Engine misfiring. …
Engine surging. …
High fuel consumption. …
Lack of acceleration.

Do all spark plugs come pre gapped?

Not always. In the past, it was necessary to gap spark plugs, but today spark plugs are usually pre-gapped. It is advisable to double check that the gap is correctly set to the vehicle’s recommended setting when installing spark plugs.

What should a good spark look like?

An engine’s condition can be judged by the appearance of the spark plug’s firing end. If the firing end of a spark plug is brown or light gray, the condition can be judged to be good and the spark plug is functioning optimally.

How do you tell if a spark plug is bad?

Rattling, pinging or “knock”-like noises. When spark plugs begin to misfire, you may notice unusual noises from the force of the pistons and combustion not working properly. …
Hard vehicle start. …
Reduced performance. …
Poor fuel economy.

What happens if ignition points are too close?

As they close, current from the ignition switch flows through the contacts into the coil’s primary windings and then off to ground. … All that current flowing across the points doesn’t like to stop suddenly, and can initiate a small arc, which eventually erodes the tungsten contacts.

Article first time published on

What does orange spark mean?

A bright blue spark is best. A yellow/orange spark signifies weak ignition.

How can you tell if an ignition coil is bad?

Illuminated Check Engine Light. With most modern vehicles, a faulty ignition coil is enough to turn on the Check Engine Light. …
Misfiring Engine. If an ignition coil is not working properly, your engine will likely misfire. …
Hard Starts. …
Worsening Gas Mileage. …
Diminished Power. …
Sudden Backfires.

How many ohms should a ignition coil have?

The meter should read between approximately 0.4 and 2 ohms. If it does not, the coil’s primary winding is faulty.

Can I test a spark plug with a multimeter?

An Ohm meter, which is part of a multimeter, can only check a spark plug for a short circuit or a breakdown of insulation resistance. A good spark plug should show an open circuit between the center electrode and the tip. Any resistance at all would mean the plug is bad.

How many ohms should a spark plug have?

When spark plugs are new, the resistance value is between 500 and 3000 ohms. As the plug ages, values below 5000 ohms are acceptable. But once the plug’s resistance value exceeds 5000 ohms, the plug should be replaced. If a spark plug falls off a workbench or is dropped, it’s possible for the carbon resistor to break.

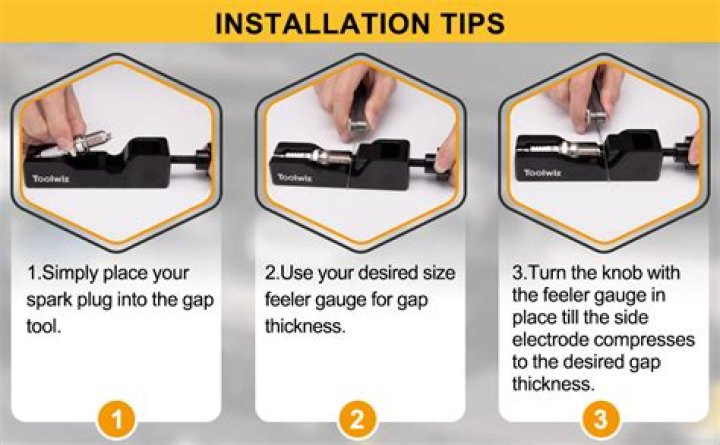

How do you gap a spark plug without a tool?

Using a Spark Plug Gap Tool All you need to do is slide the spark plug electrode opening into the gap opener and gently move it over to the smallest side of the gapper. Once it hits the 0.02” area, press the electrode down until it’s flush on each end of the gapper.

What happens if spark plug gap is too large?

Excessive spark plug gap results when the voltage has too far to travel. … Excessive plug gap also results in cylinder misfiring, a possible no-start condition, wet, black or fouled plugs, engine hesitation and rough idle. Excessive spark plug gap also happens as result of normal electrode wear and age.

Does spark plug gap affect timing?

Changing the spark plug gap won’t affect the ignition timing, but it will have some affects on the ability of the spark plug to ignite the fuel.

What causes flat spark plug?

Dirt or moisture on the outside of the spark plug that provides a conductive path to ground, or an internal crack in the spark plug’s ceramic insulator that shorts the plug to ground also can be the culprit. … This could not only shatter your spark plug into the piston, but shatter the piston itself or damage the head.

How often should spark plugs be changed?

And as a general rule, we recommend replacing spark plugs every 30,000 miles, which falls in line with most manufacturers’ recommendations. You can check your owner’s manual or the manufacturer’s website for information specific to your make and model vehicle.

Can you clean a fouled spark plug?

How To Clean Fouled Spark Plugs. To safely clean a spark plug, you should use a wire brush or spray-on plug cleaner specifically designed for this ignition part. You can also use a sturdy knife to scrape off tough deposits. Note: NEVER clean a spark plug with a shot blaster or abrasives.

Can bad spark plugs cause ticking sound?

Bad Spark Plugs Spark plugs that do not work properly, much like misaligned valves, will cause the engine to misfire. … Whatever the cause, spark plugs seal each respective cylinder. If a spark plug is loosely fitted or cracked, the combustion and exhaust gases can bypass the seal, causing a ticking noise.

How do you test a coil with a screwdriver?

Place screwdriver near the engine block Place the screwdriver about 1/8″ from the engine block. While someone else cranks the engine, you should closely examine the gap between the engine and the screwdriver. If your ignition system is working properly, you should see a spark here.

Why do spark plugs get wet with oil?

Worn Piston Rings Each piston inside of your car’s engine has two compression rings and an oil control ring. If the rings are worn or stuck, oil will be able to enter the combustion chamber, resulting in wet oil and/or ash deposits on the tip of the spark plug.

What do black spark plugs mean?

Black, dry soot on the electrodes and insulator tip indicates a carbon-fouled plug. This can be caused by a dirty air filter, excessive driving at low speeds, too rich of a fuel/air mixture or idling your vehicle for too long.

What does a weak spark plug spark look like?

Crank the engine and check for a good spark at the spark tester gap. A good spark will be blue-white and will be plainly visible in daylight. … Weak sparks are orange or red and may be hard to see in daylight. If you did not see a spark, remove the coil wire from the distributor cap.
