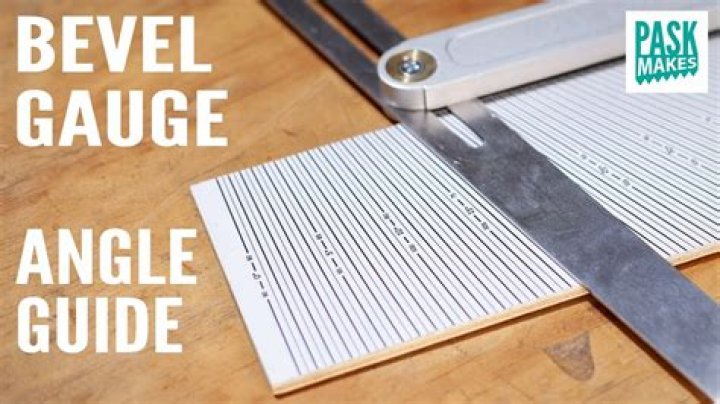

Loosen the wing nut on the blade. Using a protractor, swing the blade until the desired angle between the handle of the bevel and the blade matches the angle you want. Use a protractor to check the angle. Tighten the wing nut to lock the angle in place.

How do you find the bevel angle?

Loosen the wing nut on the blade. Using a protractor, swing the blade until the desired angle between the handle of the bevel and the blade matches the angle you want. Use a protractor to check the angle. Tighten the wing nut to lock the angle in place.

How do you find an angle?

For the exact angle, measure the horizontal run of the roof and its vertical rise. Divide the horizontal measurement by the vertical measurement, which gives you the tangent of the angle you want. Use a trigonometry table to find the angle.

Is at bevel the same as an angle finder?

Meet the sliding t bevel. Some folks may call it an angle finder, bevel gauge, bevel square or a host of other names, but whatever you call it, it’s a great little multitasker that can help you get out of trouble.

How does a sliding bevel work?

The sliding T-bevel is composed of a handle with a metal blade attached to it. … When the wing nut is loosened, the blade is free to rotate a full 360°. This allows the blade to make an angle of any degree in reference to the handle.

How do you find the angle between walls?

Divide half the length of the measurement between the two walls, the opposite side, by the length of the wall between the intersection and either measuring point, the length of the hypotenuse. This calculation determines the Sine of the angle.

What is an angle finder?

An angle finder is a great tool for measuring angles and for replicating the angle of an existing area. … An angle finder tool can also be used to measure the slope of a sidewalk or driveway, as well as to determine the angle of a sloped surface (such as for kitchen and bathroom countertop installations).

How do you find the angle of a building?

In carpentry, you usually do away with trigonometric functions to find angles. Instead, you simply use two legs of a triangle to measure and mark the angle. Call one leg the rise, designating the height of the triangle, and the other leg the run, or the length of the triangle.

How do you find the angle of a sloped ceiling?

Calculate the angle formed between the bottom line and the sloped line on the right, using the protractor. Place the center point of the protractor on the endpoint on the right side of the bottom line and see where the sloped line lines up on the protractor. This is the angle of your ceiling’s pitch.

How do you measure for a 45 degree bevel?

How to Mark Miter Cuts. Miter cuts are angled crosscuts, which most often measure 45 degrees. For a 45-degree cut, measure to the long end of the miter, and set your combination square or layout square on the mark. Draw the cut line.

Article first time published on

How do you know what angle to cut?

To use this angle measurement to cut the piece of wood, you must divide the actual measurement by two. For example, if you have an inside angle of 90 degrees then you divide this number by two and you get 45 degrees.

How do you find an angle given two sides and an angle?

“SAS” is when we know two sides and the angle between them. use The Law of Cosines to calculate the unknown side, then use The Law of Sines to find the smaller of the other two angles, and then use the three angles add to 180° to find the last angle.

How do you find the angle of a skirting board?

To do this, you simply subtract the internal angle of the V from 90 degrees. In this example, 90 – 67.5 = 22.5 degrees. (see photo). You can now cut the two pieces of skirting board that are to be joined together to form the required internal angle.

How do you work out the pitch of a ceiling?

1. First, you need to measure the run of your roof. …
2. Next, you need to figure out the rise. …
3. Now, divide the rise by the run. …
4. Then, divide 1 by your tangent.
5. Finally, multiply this result by 180/π and you’ve calculated your roof pitch!

How do you find the slope of a vaulted ceiling?

The downrod length is based the slope of your ceiling and the size of your chosen ceiling fan, plus a clearance of 18 inches from the wall. Take numbers you calculated above for the rise and divide that number by 10 to determine the percentage of your slope.

How do you cut a 45 degree angle without a miter saw?

1. Carefully mark the angle to cut on the trim and cut it by hand using a back saw . …
2. Mark the angle to cut and use a miter gauge on a table saw to make your cut .
3. Mark the angle and cut with a hacksaw.

How do you miter an inside corner that is not a square?

1. Position the Tool against the Work and Read the Setting.
2. Adjust the Miter Saw to the Left and Right Settings.
3. Position Pieces over the Work Angle in a Perfect Joint.
4. Place the Tool to Measure an Inside Angle.
5. Adjust the Miter Saw and Cut the Molding.
