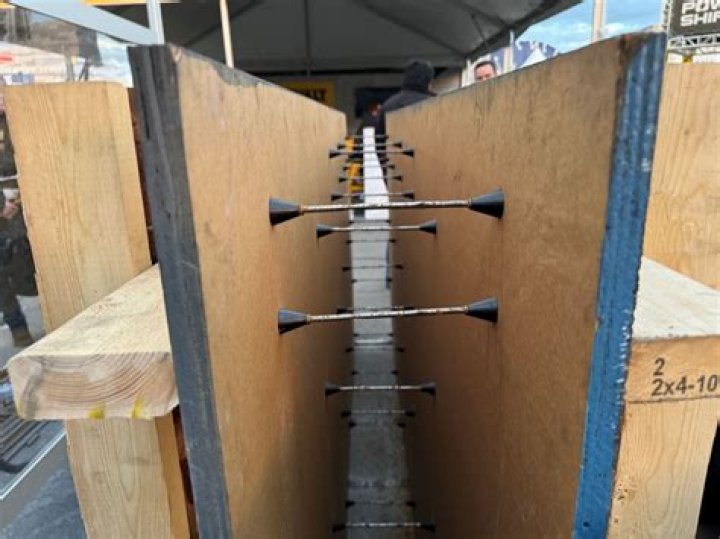

Snap Ties are used to vertically form concrete walls that can have a wide variety of widths and heights. There are various systems you can use to create the form system you require depending on your needs. Snap ties make the installation of concrete formwork and the subsequent removal extremely easy and efficient.

What is concrete snap tie?

Snap Ties are used to vertically form concrete walls that can have a wide variety of widths and heights. There are various systems you can use to create the form system you require depending on your needs. Snap ties make the installation of concrete formwork and the subsequent removal extremely easy and efficient.

What are form ties used for in concrete?

The Importance of Concrete Formwork Ties Form ties and accessories are used in concrete formwork that holds the forms of the concrete walls in place against lateral pressure. In order to achieve a uniform thickness of concrete walls, form ties are utilized to maintain equal spacing between concrete forms.

What is the spacing for snap ties?

Snap Tie Spacing and Rate of Placement 12″ vertical x 24″ horizontal 16″ vertical x 24″ horizontal 12″ vertical x 12″ horizontal Snap Tie Spacing. Snap Tie spacing. Snap Tie spacing. Recommended rate of Recommended rate of Recommended rate of placement 4.5 ft./hr.

What is a JAHN bracket?

OCM ACLMP Jahn-A Bracket is fabricated from high strength steel with a cad plated eccentric and painted body. … This Jahn-A Bracket can be utilized to hold a single horizontal wale or a single vertical stud with any type of wall form; round, curved, battered, beam and/or columns.

What is a snap tie wedge?

The snap tie wedge is a holding device that is fabricated from high strength galvanized steel that is used in a double waler or double strong back snap tie forming application to ensure proper load distribution when installed correctly.

What type of plywood do you use for concrete forms?

Virtually any Exterior type APA panel can be used for concrete formwork because all such panels are manufactured with moisture resistant adhesive. For concrete forming the plywood industry produces a special product called Plyform®, which is recommended for most general forming uses.

How do you remove concrete form pins?

1. Remove the stakes and braces holding the forms in place. …
2. Pull nails connecting the form pieces at the corners using a hammer or wrecking bar. …
3. Pull the forms away from the slab.

What are the 2 types of formwork ties?

• Continuous Single Member type.
• Internal Disconnecting type.

How do you fix a snap tie leak?

1. Remove the snap tie from the wall, wire brush the surface of the concrete.
2. For holes bigger than an 1/8″ , fill with Waterprlug Hydraulic cement. Allow the Waterplug to set for 30 minutes.
3. Brush on a heavy coat of Epoxy Waterproofer over the Waterplug and overlap 1″ all the way around the patch.

Article first time published on

How do concrete forms work?

In simple terms, concrete forms are nothing more than a solid barrier that holds concrete in place or forces concrete to assume a certain shape. However, many newer forming systems serve other purposes as well, such as providing insulation or imparting special decorative effects.

How do you use concrete forms?

1. Spread and tamp three-inch layers of granular fill to within five inches of the top of the forms. …
2. Stretch a string across the top of the forms and measure down to the ground. …
3. Subtract the thickness of your slab. …
4. Slope the fill down along the edges to create a thickened edge of concrete.

How do you fill holes in concrete columns?

1. Encasement or enlargement of the column cross section (jacketing).
2. Cathodic protection to stop reinforcing steel corrosion.
3. Re-alkalization of the reinforcing steel to stop corrosion.
4. Chloride extraction to retard the reinforcing steel corrosion.

What is sacking concrete?

“Sacking” – the practice of filling bugholes and other voids in concrete walls by rubbing a mixture of cement, sand, and water through a sack – can be very risky business. … As is common, the painting contractor power washed the walls prior to paint application to remove any residual dust, and allowed the surface to dry.

How do you keep concrete from sticking to wood forms?

Any type of oil will prevent concrete from sticking to wood. Spray the surfaces that will face the wet concrete with a heavy saturation of oil. Allow the oil to penetrate the wood for 15 to 20 minutes. Apply a second heavy spraying of oil just before pouring concrete.

How thick should concrete forms be?

As far as thickness goes, 2-inches will be sufficient for most concrete projects.

Can I use OSB for concrete forms?

Typically, both OSB and plywood can be used in concrete forms, but plywood is the best option for concrete forming applications. Plywood is the better choice; its structure doesn’t unravel following constant exposure to water. The panels are quick to absorb moisture and dry just as quickly.

Are snap ties adjustable?

Snaps off like normal button-head snap-tie. Low cost solution for one-sided forming and adjustable-length ties. Welded to rigorous standards using computer-controlled equipment: each SC is as strong as a standard button-head snap-tie.

How are snap ties measured?

Short-end (SE) Snap Ties measure 4-3/4” at each end, plus the wall thickness. Long-end (LE) Snap Ties measure 8-1/4” at each end, plus the wall thickness. Odd-end (OE) Snap Ties measure 4-3/4” at one end and 8-1/4” at the other end, plus the wall thickness.

What is an internal disconnecting tie?

INTERNALLY DISCONNECTING TIES. Two common types of internally disconnecting form ties are the coil tie and the she-bolt tie. Both have reusable end bolts that unscrew from the inner tie rod member, which stays in the concrete.

Why is rebar sticking out of foundation?

Homeowners are complaining about the rusty things sticking out of their foundation walls. People can get hurt by them and they can let water in. These “rusty things” are called tie rods or snap-ties. They are used during the construction phase.

Can you leave concrete forms on too long?

The forms or “molding” that holds the concrete in place until it dries should be left alone for at least two days to ensure that the concrete is completely dry. If the forms are removed too soon, the concrete can begin to sag, crack and collapse, especially if conditions like temperature affected its strength.

How long should concrete cure before removing forms?

Walls and columns can be removed after about 24-48 hours. Slabs, with their props left under them, can typically be removed after 3-4 days. Soffits, with their props left under them, can be removed after one week. Props supporting slabs under 15 feet can be removed after one week.

How long after pouring concrete can you walk on it?

After 24 hours, you can walk on your newly poured concrete, but avoid dragging your feet, ‘doing the twist’, or allowing your pets to walk on it as their claws can scuff the concrete.
