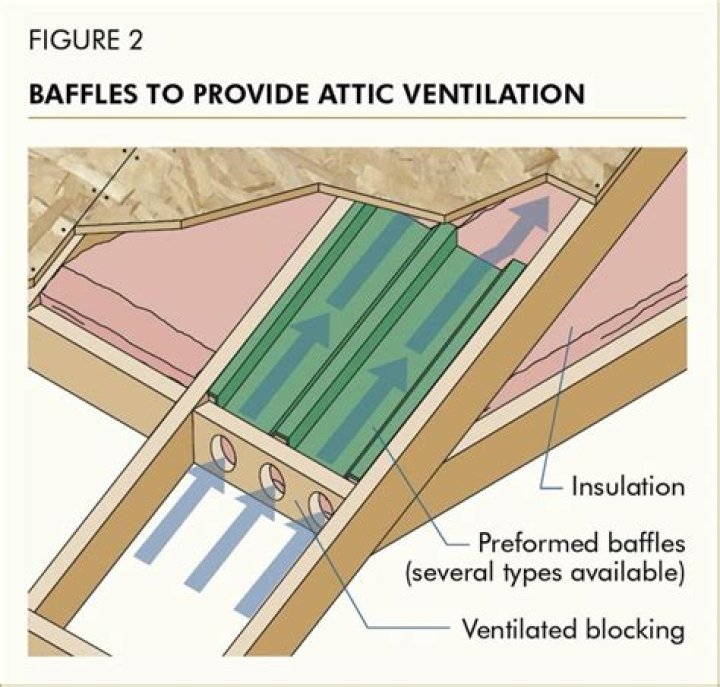

Baffles are chutes that, when installed properly, can provide a channel for air to flow from your exterior soffit vents up into your attic space. That airflow is intended to churn the stale air in your attic which helps to remove moisture and control the temperature of your attic.

What is the purpose of insulation baffles?

Baffles are chutes that, when installed properly, can provide a channel for air to flow from your exterior soffit vents up into your attic space. That airflow is intended to churn the stale air in your attic which helps to remove moisture and control the temperature of your attic.

Do you need rafter Vents?

To get the best performance out of your insulation year in, year out, you would do well to install rafter vents in your attic. … That air flow helps keep the attic cooler during the summer, and during the winter, it helps keep ice from forming on the edge of the roof. It also guards against mold, mildew, and rot.

Do you insulate over baffles?

If you want to insulate the rafter bays rather than the attic floor in order to make the attic a heated space, baffles are even more important for proper air circulation. … Run baffles the entire length of the rafter bay from the soffit vent to the ridge vent, then add batting insulation over the baffles.

How many baffles go in an attic?

The first step in determining how many rafter vents your home needs is to determine your home’s vent space in square feet. The general rule is that you must have one square foot of vent space for every 150 square feet of attic area.

Do you need attic baffles with batt insulation?

Baffles are required anywhere the insulation can block vents or get too close non-insulation rated recessed fixtures (can lights). Mostly we use insulation baffles prevent blockage of soffit vents from blown in insulation. Batt insulation can simply be held back and physical baffling isn’t really needed.

What do rafter vents do?

Rafter vents, often called baffles protect intake vents in your attic from becoming clogged or covered by insulation or debris. Rafter vents ensure the soffit vents are clear and there is a channel for outside air to move into the attic at the soffits and out through roof vents.

Can insulation touch the roof?

Attic insulation should not touch the roof. Although it can be tempting to over insulate, resist the urge. Too much insulation hinders airflow and can keep excess moisture from escaping, especially in attics.

How do I add baffles to my attic?

1. Determine the size baffles you need by measuring the space between your attic’s rafters. …
2. Position the first baffle. …
3. Continue installing baffles, moving up the rafter bay towards the peak of the roof. …
4. Seal the baffles.

Why do you need soffit vents?

The purpose of venting soffits is to evenly distribute an airflow throughout the roof space to ensure the roof remains dry and free from mold.

Article first time published on

Can you over vent an attic?

It’s possible to have too much exhaust ventilation, but you cannot have too much intake ventilation. If there is more intake ventilation than the attic’s square footage requires, it’s not problematic because any excess intake converts to “exhaust” on the leeward side of the house.

Should soffit vents be covered with insulation?

In the summer, natural air flow in a well-vented attic moves super-heated air out of the attic, protecting roof shingles and removing moisture. The insulation will resist heat transfer into the house. … NEVER COVER ATTIC SOFFIT VENTS WITH INSULATION — use rafter vents and soffit vents to maintain airflow.

Where should soffit vents be placed?

Space the soffit vents evenly around the bottom of the low sides of your roof. There are several different types of soffit vents available including continuous, circular, and perforated vents made for vinyl siding.

Which way should soffit vents face?

It’s best to install soffit vents with the open part of the louver facing in toward the house to keep windblown debris out of the attic and prevent water from coming in when the eaves are cleaned with a garden hose or pressure washer.

How many attic vents do I need?

How Many Vents Do I Need? The general rule of thumb in these situations is of roughly one vent per every 300 square feet of attic area if the attic has a vapor barrier. If not, there should be one vent for every 150 square feet. You will need to have 1 square foot of vent area for every 150 square feet of attic space.

Are baffles necessary in vaulted ceiling?

Baffles are a great way to maintain the temperature in any homes’ attic. However, if you have cathedral ceilings, they are a necessity. High ceilings require constant ventilation to help remove trapped moisture. Baffles also keep your insulation off the roof deck.

Do I need baffles if I don't have soffit vents?

But not all homes have an overhanging roof line or soffit vents. Without them it is actually easier to insulate your attic, because you do not have to worry about covering up the vents or installing rafter baffles to ensure the vents breathe.

What are baffles in a ceiling?

Baffle ceilings are ideal for creating atmosphere within a room space. These open ceiling constructions allow a view to the plenum area and concrete ceiling above. … A sound baffle is a construction or device that reduces the strength (level) of airborne sound.

Can I put too much insulation in my attic?

It’s possible to over-insulate an attic as too much will cause moisture buildup and eventually result in mold. Eventually, adding more insulation leads to diminishing returns in trapping heat as well.

How do you tell if your attic is properly insulated?

While you’re at it, feel the ceiling and see if it seems strangely hot or cold in any area. If any rooms have odd temperature changes, there’s a good chance that the insulation in that area is poor and will need to be replaced. Note that ceilings aren’t the only areas where insulation can be poor.

How many inches of insulation should be in my attic?

R-Value is a measure of insulation’s ability to resist heat flow. The higher the R-Value, the better the thermal performance of the insulation. The recommended level for most attics is to insulate to R-38 or about 10 to 14 inches, depending on insulation type.

What insulation do you use between rafters?

Mineral wool offers the best all-round thermal, fire and acoustic performance when compared to rigid foam boards to insulate between rafters. Mineral wool friction fits between rafters, providing an optimum seal and preventing gaps associated with rigid foam boards, which can otherwise lead to unwanted heat loss.
