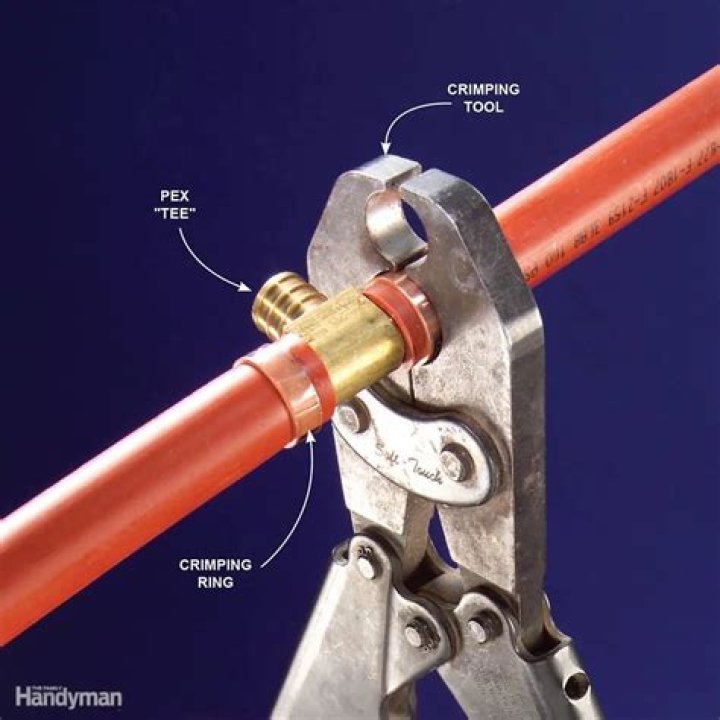

The most common connection method used in PEX installation is the “Crimp” method. This process involves sliding a ribbed fitting into the PEX tube and crimping a seal ring around the connection point. These rings are typically made of copper, but may be found in plastic as well as brass.

What is the best way to connect PEX fittings?

The most common connection method used in PEX installation is the “Crimp” method. This process involves sliding a ribbed fitting into the PEX tube and crimping a seal ring around the connection point. These rings are typically made of copper, but may be found in plastic as well as brass.

Is it better to crimp or clamp PEX?

If you are looking for a fast and more secure connection that will stand the test of time, crimp tools are your better option. But if you want more flexibility without working more, go for PEX clamps.

How do you install PEX connectors?

1. Cut the PEX tubing. …
2. Slide the PEX crimp ring and over the tubing approximately 2″ past the end.
3. Fully insert the PEX fitting into the PEX tubing so that the fitting’s shoulder touches the tubing.
4. Position the PEX crimp ring 1/4”-1/8” from the end of the tubing. …
5. Open the PEX crimp tool’s jaws.

Which is better for PEX crimp or cinch?

The stainless steel Cinch Clamps are stronger than the copper Crimp Rings. I know this from personal experience after working with frozen water lines. When the fitted connection freezes with water in the line it will cause the copper Crimp Ring to expand just enough to cause a leak when it thaws.

Are plastic PEX fittings any good?

In areas where water is very acidic plastic PEX fitting is the most ideal. Plastic fittings do not corrode or wear out due to terrible water condition. It is very effective and highly durable and can be used in houses that have a lower quality water system.

Why is PEX plumbing bad?

Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.

Can PEX be connected to a hot water heater?

PEX tubing may be connected directly to residential electric tank or tankless (instantaneous) water heaters, if the local code and manufacturer’s instructions allow. When connecting PEX tube to gas tank or tankless water heaters, the tube must be kept at least 6 inches away from the exhaust vent of the heater.

Can I use crimp fittings on PEX A?

Crimp fittings require copper or stainless steel crimp rings and a PEX crimp or clamp tool. … Crimp fittings are compatible with all types of PEX tubing, except for PEX-AL-PEX. Crimp fittings are preferred for many applications since they are widely available and are the most affordable.

How do you connect water main to PEX?

1. STEP 1: Install the water meter mounting bracket. …
2. STEP 2: Attach the fitting or valve to the water meter. …
3. STEP 3: Connect the PEX tubing.

Article first time published on

How reliable are PEX connections?

Most PEX pipes are reliable pipes. However, one brand in particular has routinely failed – Dura PEX piping, manufactured by CPI (bought out by NIBCO). Dura Pex (by CPI) is prone to cracking and probably has already caused you a lot of headaches (and bills for pipe fixes).

What is the difference between PEX A and PEX B?

Again, the main distinction lies in the manufacturing method, which is what assigns an A, B or C to PEX. PEX A is made using the Peroxide, or Engel, method. PEX B is formed using Silane, or Moisture Cure, method. This is the most common PEX pipe type out there.

Can I use shark bites with PEX?

SharkBite brass push-to-connect fittings are compatible with PEX, Copper, CPVC, PE-RT and SDR-9 HDPE pipe. … The PEX stiffener does not need to be removed for Copper or CPVC applications.

Can you use a saddle valve on PEX pipe?

Most saddle valves are designed to work with standard rigid copper pipes—they are not recommended for PVC, CPVC, or PEX plastic pipe. They are also designed for water systems with a maximum pressure of no more than 125 psi.

How much pressure can PEX fittings take?

PEX-a pipe can withstand a burst pressure of around 800 psi (almost two times the requirement for ASTM F876, the standard specification for PEX tubing). So neither the pipe nor the fittings are weak points, making for an extremely high-performing system in domestic water and hydronic piping applications.

Is PEX safe for drinking water 2021?

With a plumbing-pipe offering in sizes up to 3 inches, PEX is challenging traditional copper and CPVC materials for domestic water applications. … This provides confirmation the pipe does not leach harmful substances into drinking water and is safe for potable systems in healthcare facilities.

How long does PEX pipe last?

Additionally, long-term testing programs on PEX have shown that it has a potential lifespan of more than 100 years. So, while copper systems may have to be re-piped every few years or decades due to corrosion and pinhole leaks, a PEX system can last 10 times longer — or more.

Where is PEX not allowed?

PEX can’t be installed in high heat areas. You can’t install PEX in high heat areas like near recessed lighting. This also means you can’t connect PEX directly to a hot water heater, but you can use a connecting material to do this.

Are plastic PEX fittings OK for hot water?

Plastic PEX fittings are OK And pros don’t want a callback to fix their own work on their dime. … Metal fittings are required, however, where the fitting is exposed to UV light. Also, no plastic pipe or fittings can be used within 18 in. of water heating devices.

What is the most commonly used PEX fitting?

Crimp style fittings are the most common and affordable type of PEX fittings and can be found in majority of supply houses, home improvement stores and online stores. Brass PEX crimp fittings are manufactured to ASTM F1807 standard.

Can you crimp PEX with pliers?

You can start out with either a large pair of pliers or you can use garden cutters. Either way you need to make sure that the handles are big enough for you to be able to clamp down hard on. Then, use wires as a way to make the crimp part in the crimping tool.

What is the difference between crimp and expansion PEX?

When the pipe and collar are expanded the fitting is inserted and held in position for a short duration allowing the pipe and collar shrink back down to create your connection. On the other hand, crimp fittings are installed using a copper crimp ring that goes on the outside of the Pipe (PEX-B or PEX-C).

Is PEX safe for drinking water 2020?

The inner pipe for drinking water is made of a plastic called cross-linked polyethylene (PEX). … There are no health risks associated with drinking water from PEX pipes. A few types of PEX-pipe may cause prolonged undesirable taste and odour if the water remains in pipes over time.

Can PEX freeze?

PEX pipe will expand if frozen and contract to its original shape when thawed. But putting frequent stress on the system weakens it, increasing chances of failure and leaks. So, to preserve the strength of your pipes, you should use the same standard insulation precautions with PEX to keep it from freezing.

How many fixtures does 1/2 PEX have?

For our example, our 1-inch pipe can have up to 30 fixture units, our 3/4-inch can have up to 14, and our 1/2-inch can have up to 4.

What is a PEX Clamp?

PEX clamps together with PEX clamp tool are used for making a connection between PEX tubing and crimp style PEX fittings. Oetiker PEX clamps are of the highest quality and are manufactured in the USA from 304 grade stainless steel.

Can you use pinch clamps on PEX A?

Using stainless steel pinch clamps, also referred to as ear clamps, are a great way to connect PEX pipe to PEX fittings. Connections made using SS Pinch Clamps with an interlocking design provide the same high integrity connection as a copper crimp ring connection.
