Snap Rings, sometimes referred to as circlips or seeger rings, are a stamped tapered section retaining ring. These axially installed rings are often used in external applications to secure parts on grooved shafts, pins, or studs.

What is the purpose of a snap ring?

Snap Rings, sometimes referred to as circlips or seeger rings, are a stamped tapered section retaining ring. These axially installed rings are often used in external applications to secure parts on grooved shafts, pins, or studs.

What is the difference between snap ring and retaining ring pliers?

Safe and Easy Installation and Removal Spirolox retaining rings are safer and easier to install and remove in comparison to circlips. … Snap ring pliers are inserted into the ears of the circlip, and the ring is then stretched over a shaft or compressed into a housing.

How do you open a snap ring?

1. Take a pair of punches and make sure that they fit in the holes of your bike’s snap ring.
2. Put the punches into the snap ring’s holes.
3. Slide a dowel rod between the punches. …
4. Push the top parts of the punches together as you would when you use chopsticks.
5. Open the snap ring up.

Are snap rings reusable?

Also known as snap rings, these fasteners are removable and reusable. … Self-locking retaining rings do not require a groove for installation. They are used in small applications with very low thrust loads.

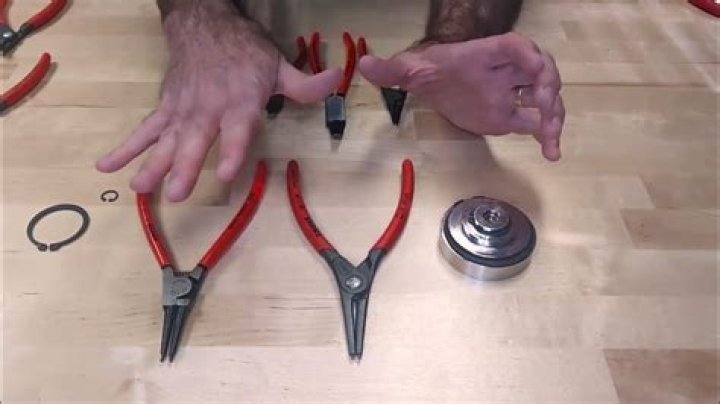

What is snap ring pliers?

A snap ring pliers is a hand tool used for installing and removing snap rings. These are different from other pliers as they have a specially designed tip for handling snap rings. … Typically, these pliers are designed to work with snap rings of a specific diameter.

Are retention rings necessary?

Retaining rings serve an important purpose no matter what type of project they are installed in. … The smooth, round finish of most shafts or bores makes them difficult to attach to with alternative methods, whereas retaining rings clamp around them and create a shoulder that keeps parts in place.

Why is it called a Jesus clip?

The term “Jesus clip” comes from the propensity of the clip’s spring action to launch the clip at a high velocity when removing or installing, leading to remarks such as, “Oh Jesus, where did it go?”

What type of fastener is a snap ring?

A circlip, also known as a C-clip or snap ring, is a type of retaining ring with open ends that snap into place. Circlips are fasteners that fit into the radial grooves of shafts and holes that are sprung to ensure they remain securely in place.

How do you remove an internal circlip?

1. Select a pair of internal circlip pliers and use the plier tips to grip the holes on the ends of the clip to be removed.
2. Squeeze the plier handles to gently release the circlip from the groove then simply remove it from the shaft.

Article first time published on

How do you select an internal circlip?

OUTPUT PARAMETERSWeight of 1000 pieces [w ≈]—kgGrooveGroove Diameter [d2]—mm

How do you get a retaining ring?

Spirolox retaining rings are designed to be installed by hand, so no special tooling is required. This is done by separating the turns, inserting one end of the ring over the shaft (or through the bore), and into the groove, then spiraling the rest of the ring into the groove.

What is an external snap ring?

External retaining rings (also known as “external snap rings”) sit in the grooves on the exterior of shafts of any size. The areas of the ring that protrude out from the shaft hold it in place.

Can you reuse a retaining ring?

Depending on the installation method and installation stress, these rings can often be reused without any issues. If your application requires frequent installation and removal, it would be best to keep the installation stress low to minimize the need for replacement retaining rings.

What is the difference between internal and external snap rings?

Internal retaining rings fit into a housing or bore. External retaining rings fit over a shaft or pin. … They often have prongs that grip shaft or housing bore. These rings are also called self-locking.

Are snap rings color coded?

Snap rings are designed to retain their shape like a spring, and should be replaced if they become distorted. Snap rings may also be color-coded according to their location, or need to be installed facing a certain direction.

Why is Jesus called nut?

Origin of name The term Jesus nut may have been coined by American soldiers in Vietnam; the Vietnam War was the first war to feature large numbers of soldiers riding in helicopters. The term may also have originated with the PBY Catalina, which had two Jesus bolts holding the wing onto the fuselage.

Is the Jesus nut real?

Technical name of the Jesus nut is the main rotor retaining nut, but where is the fun in that. While exact author of the term is unknown, it is believed to have originated during the Vietnam War.

How big is the Jesus nut?

On the UH-60 Blackhawk the Jesus nut is about 8in in diameter. It sits on top of a metal ring and has 12 bolts that screw down through it to provide constant and even pressure against the rotor shaft.

How do you fit a circlip without pliers?

Screwdrivers are sometimes also used to install circlips. The clip can be lined up and the screwdriver used to force it into the groove of a bore, or a groove on a shaft. Again, this risks damaging the circlip, or the mechanism it’s being installed onto or into.

How deep should a circlip groove be?

You don’t want to weaken the tube by grooving too deeply. In most other circumstances the depth should be 1/2 the width of the circlip at it’s working diameter. There should be about as much material in the groove as out of the groove. This is it’s strongest point.

How are internal circlip measured?

Internal Circlips are always listed by the bore size they are fitting in to. For example, if you have a 20mm bore and need a Circlip for this application, you will require a 20mm Internal Circlip.
