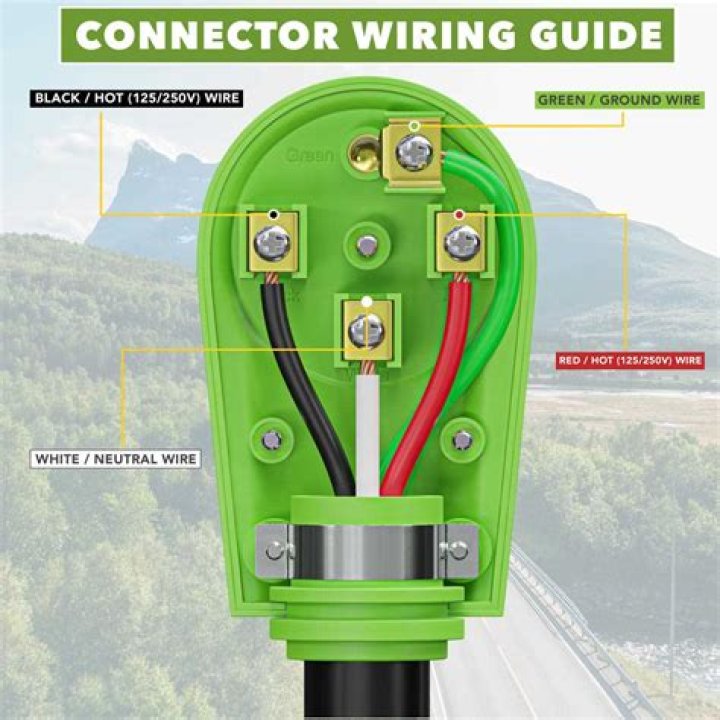

A 50 amp plug has four prongs – two 120 volt hot wires, a neutral wire and a ground wire – that supply two separate 50 amp, 120 volt feeds.

How is a 50 amp RV cord wired?

A 50 amp plug has four prongs – two 120 volt hot wires, a neutral wire and a ground wire – that supply two separate 50 amp, 120 volt feeds.

What size wire do I need for a 50 amp RV plug?

You should use the No. 4 AWG size for a 50 amp wire. This is the best size wire for 50 amp Rv service. Whether you have a 30 amp, 40 amp or a 50 amp breaker, wire size is essential.

How many wires are in a 50 amp RV cord?

Although a 50 amp service for a recreational vehicle, or RV, is connected to four wires and uses a four-prong plug, it is still a three pole service with only hot, neutral and ground connections. It is different from a conventional 120 volt service in that there are two 120 volt hot feeds, or legs, each at 50 amps.

Will 8 gauge wire carry 50 amps?

8 AWG may carry a maximum of 70 Amps in free air, or 50 Amps as part of a 3 conductor cable.

What size wire do I need for 50 amp 220 volt?

As you can see from the graph, a 6 AWG is the safe choice if you have a 220v 50 amp that you need to power, whereas a 12 gauge wire is perfect for your 220v 20 amp needs.

What wire is needed for NEMA 14 50?

standard NEMA 14-50 outlet (4-wire) is the way to go.

Is a 50 amp RV plug 110 or 220?

A 50 amp RV plug is neither 220V nor 110V. An RV plug usually has two prongs that have 120 Volts each. What we are saying here is that the two parts of the plug both offer separate 50 Amp/120V and a total of 240V. A 50 Amp RV plug is 220 Volts only if it has four prongs.

Can I plug my 50 amp RV into my dryer outlet?

Although you can’t usually plug your RV straight into your house, one exception is that Class A motorhomes tend to operate on 50 amps. That translates to needing 240 volts of power, and you can plug those RVs into your dryer outlet. … You can then charge your motorhome just like you would at a campground.

How many amps can a 50 amp breaker handle?

A 50 Amp split phase 120/240 VAC service should be capable of 50 Amps per leg for a total ampacity of 100 Amps.

Article first time published on

Can 10 gauge wire handle 50 amps?

A 10-gauge bare copper wire can carry a 50-amp load, but the resistance in the cable will cause it to heat up substantially.

How far can you run a 50 amp cord to a camper?

How long are you talking about?? RV Cords are 25 feet in length. As long as someone sticks with the cord that came with the RV and one 25 foot extension, they will never exceed the 50 amp rating. However (there’s always one of those!), if the campground has exceeded code problems can and will occur.

What can you run on 50 amps?

A 50-amp breaker can run appliances like ovens, hairdryers, air conditioners, and multiple lights simultaneously while (possibly) still sparing power. The reason for this breaker’s capacity is because it can hold up to 12,000 watts running on a 240-volt circuit (50-amps x 240-volts).

What size wire do I need for a 50 Amp hot tub?

Amperage of SpaGauge of Wire40-50 ampAWG #860 ampAWG #6

How many amps is a number 8 wire good for?

NM, TW, & UF WIRE (Copper Conductor)SE CABLE (Copper Conductor)12 AWG – 20 AMPS6 AWG – 65 AMPS10 AWG – 30 AMPS4 AWG – 85 AMPS8 AWG – 40 AMPS2 AWG – 115 AMPS6 AWG – 55 AMPS1 AWG – 130 AMPS

Can I plug my 50 amp RV into 220v?

A 50 Amp RV plug is 220 Volts if it has four prongs on the male and female plug. Two being 110 Volt to neutral or ground and one prong being the neutral and the round prong the ground. The voltage between the two 110 Volt prongs should be 220 Volts.

How many amps is 1 ought wire good for?

Wire Size75°C (167°F)AWG(mm²)Copper1(42.4)1301/0(53.5)1502/0(67.4)175

How do I know what size electrical wire to use?

To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need.

What is a Romex wire?

Romex is the trade name for a type of electrical conductor with non-metallic sheathing that is commonly used as residential branch wiring. … Romex™ is a common type of residential wiring that is categorized by the National Electrical Code (NEC) as underground feeder (UF) or non-metallic sheathed cable (NM and NMC).

Does NEMA 14-50 need a neutral?

The controls also operate at 120 volts so you need the neutral for control power. Code updates now require a neutral to be provided on appliance receptacles that years ago would only have had two hot wires and a ground supplying 240 volts.

Does NEMA 14-50 require GFCI?

New codes state that a GFCI breaker must be installed on a NEMA 14-50 outlet used for EV charging. … A GFCI breaker is designed to prevent a shock hazard when an electrical circuit comes in contact with water.

Should I install a NEMA 14-50 outlet?

Tesla does not recommend installing a new NEMA 14-50 outlet to charge your car. Installing a Tesla Wall Connector is the recommendation, and it is for a number of reasons. … The Wall Connector on a 60amp circuit will give you 34 miles of charge per hour, so 50% faster charging.

What kind of wire do I need for a 50-amp welder?

A 50-amp circuit breaker and 6-gauge wiring is required for welders with 40 to 50-input Amps. Smaller welders can use a 10-gauge wire with a 30-amp circuit breaker.

Can 12 gauge wire handle 50 amps?

RULES OF THUMB “Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”

How far can you run 240 volt wire?

14 AWG100 feet10 AWG128 feet8 AWG152 feet6 AWG188 feet

How do I hook up a 50 amp RV in my house?

Remove the 50 amp plug from the generator plug, like you would at an RV campground. Then plug it into the first adapter (50a female to 30a male). This then gets plugged into the second adapter (30a female to 15a male) which together you can then plug the adapter into your heavy duty outdoor extension cord.

Is a 50 amp RV a 240 volt?

Even though the receptacle found in your RV is rated at 120 VAC, the 50-‐amp shore power is actually a 120/240 VAC four wire service (see Figure 1).

How much does it cost to have a 50 amp outlet installed?

The length of the run is the most important factor in determining a true 50 Amp service. The figure is for the wire in the US. $50-$100 for breaker at service panel, and $60 for the outlet/service box to plug in.

What voltage is a 50 amp RV circuit?

Almost ALL 50-amp wired RV’s use both sides of the service separately as 120 volt on each leg. Only a few mostly high-end coaches utilize the 240-volt from this same service.

Can I plug 30 amp into 50 amp?

Can I Plug My 30-Amp RV Cord into a 50-Amp Power Pedestal? Yes! … You can plug a 30-amp RV cord into a 50-amp power receptacle, such as a power pedestal at a campground, by using an adapter. The female end of the adapter will plug into your RV cord, and the male end will plug into the power pedestal.

What draws the most amps in a house?

Domestic Portable ApplianceAmps UsedWatts UsedDishwasher10.02200Iron133000Microwave6.51500Vacuum cleaner9.02000
