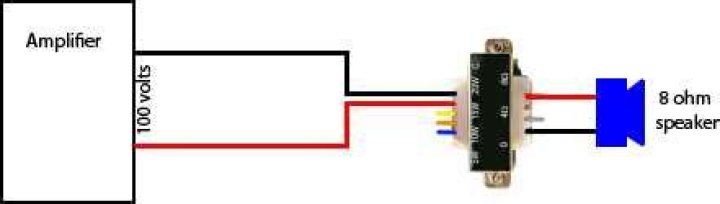

Attached to each speaker in a 70V system is another transformer that changes the power back to “lower voltage/higher current” so that it can drive the 8-ohm speaker. These transformers usually have two output taps, one for 8-ohm speakers, and one for 4-ohm speakers.

What are the 2 sets of wires on a 70 volt transformer used for when wiring a speaker to a 70 volt amplifier system?

Attached to each speaker in a 70V system is another transformer that changes the power back to “lower voltage/higher current” so that it can drive the 8-ohm speaker. These transformers usually have two output taps, one for 8-ohm speakers, and one for 4-ohm speakers.

How do you match speakers to amp wattage?

Generally you should pick an amplifier that can deliver power equal to twice the speaker’s program/continuous power rating. This means that a speaker with a “nominal impedance” of 8 ohms and a program rating of 350 watts will require an amplifier that can produce 700 watts into an 8 ohm load.

Does 70 volt speaker wire need to be in conduit?

In fact, today a wide variety of 70-volt subwoofer options exist to make your system sound even better. All loudspeaker wiring must be in conduit. This is only true if it is required by local, county, or state regulation.

Can you wire 70V speakers in parallel?

With a 70V system you can hang hundreds of speakers in parallel on a single amplifier output if you provide a matching load. Details of impedance matching are covered later. In addition, a 70V distributed system is relatively easy to design, and allows flexibility in power settings.

How many speakers can be on a 70V system?

For example, with a 180 watt / 70 volt amplifier, you can install speakers that total close to 150 watts. It does not matter if it is 10 speakers that are 15 watts each or 25 speakers that are tapped at 5 watts each.

How many volts do speakers use?

Making Power for Your Speakers For standard 4-ohm speakers, it takes a peak-to-peak voltage of almost 60 volts to deliver about 100 watts to your speaker. In most amplifiers, this voltage is configured as +30V and -30V, relative to the ground reference voltage of your vehicle chassis.

Can you bury regular speaker wire?

The reality is that burying any wire or cable directly in the dirt is never recommended. Especially if you desire a long lasting installation! The truth is only a few cables are truly rated to be buried directly into the ground. … This will give your direct burial speaker wire a longer installation life.

How many watts is a 70v speaker?

Connect the same speakers to the 70 Volt line terminals of the same 120 watt amplifier and the amplifier will only see a load of 100 Watts. Example 2: The total watts of all the (70 Volt) speakers totals 50 Watts.

Can you run speaker wire and electrical wire in the same conduit?

According to NEC 300.3(C)(1), you can only run the speaker cable in the same enclosure as a higher-voltage circuit if the insulation of the speaker cable is rated for the voltage of the higher-voltage circuit.

Article first time published on

Does speaker wire need to be run in conduit?

If you are in an air space you should not need conduit. The NEC codes state that a voltages over 100 volts must be in conduit, or with suitable outer sheathing. …

What happens if AMP is too powerful for speakers?

Speakers and too powerful amps when connected with a continuous power rating, make the speakers struggle. The speaker will not be able to distribute the heat energy from the amplifier and then it will tend to burn off the speaker’s voice coil.

Can speakers be too powerful for AMP?

Amplifiers can be too powerful for speakers. … As a general rule, if the amplifier produces more electrical energy than the speakers can handle, it may cause distortion or clipping, but damage is unlikely.

How many speakers can be connected to an amplifier?

Most amplifiers can cope with a load of two speakers. Similar to a passenger on a small motor bike: add another passenger and the load the bike needs to carry is doubled, but most bikes will cope with two passengers. However adding more than two speakers will normally overload the amplifier.

How do you daisy speaker wire?

The simplest way to make the connection is to connect the first speaker to the source component, as usual, then connect the next speaker to the first one, matching plus to plus and minus to minus. Although this type of connection is what people often consider a daisy chain, in fact, the speakers are wired in parallel.

Can you hook up two speakers to one terminal?

There are only really two ways to connect 2 speakers to one amplifier – either in parallel or series. If each speaker has an impedance of 8 ohms or more, then you can generally connect them in parallel.

How much voltage can a speaker handle?

But if you mean what is the maximum voltage I should allow a circuit to apply to a voice coil speaker, I’d look at the rated power (Wattage) and the DC resistance of the speaker . or Sqr (10*8) = 8.9 Volts. It’s maximum voltage, and the term Root mean square or RMS is often used.

Do speakers need voltage or current?

Voltage is the force that drives the current and, as has been noted, power is voltage times current. If either one is zero, you have no power. No, to drive a speaker the voltage is definitely not static, it is an AC voltage which is proportional to the sound in frequency and amplitude.

Can I hook up 4 ohm speakers to a 8 Ohm amplifier?

Originally Answered: Can I use two 4 ohm speakers with on an 8 ohm amplifier? Yes you can. As long as you Don’t play it at too high of a volume. Basically if you play it too loud the speaker will draw too much current and you might blow the amplifier.

How many volts can speaker wire carry?

Hence, pretty much any speaker wire can handle 12v power. The only factor to consider is that the wattage it will produce will change, and you will have to match that wattage with the electrical device you wish to use, with that speaker wire.

How do you tap into rear speaker wire?

Some (many) powered subs have high level inputs, so you can just tap into the rear speaker wires. If your car has a factory sub, use its speaker wire instead. If it doesn’t have high level inputs, you can use a basic line out converter that ties into the speaker wires and turns them into a rca output.

Can you use 8v speakers with 70V AMP?

As long as the amp has enough voltage swing (as stated 600 watts @8 ohms) it will be just fine. You also eliminate the issue of transformers on the output(very low impedance at low freq among others).

What is 70V speaker?

70v or 100v line loudspeakers feature a line transformer which steps up the audio outout sugnal 100 volts (or 70 volts!) so that the transmission line current for the chosen power output is relatively low. This reduces signal loss and allows lower grade / smaller diameter cables to be used.

How many watts do I need for ceiling speakers?

Room Size: the larger your room, the more power you’ll need to fill it, all else equal. For a room 18 feet by 18 feet, with 9-foot ceilings, you’ll want a stereo with at least 25 watts per channel with efficient speakers, or 40 watts per channel with non-efficient speakers.

What does wiring speakers in parallel mean?

Parallel – When wiring in parallel, the resistance of the speakers decreases. Two 8 Ohm speakers wired (hooked up) in Parallel results in a 4 Ohm load. It’s easy to calculate the effect of a resistive load when all the speakers are all the same resistance.

Are speakers louder in series or parallel?

As a general rule, parallel speakers are louder than series speakers. That’s because: Wiring speakers in series increases the total speaker impedance (Ohms) load, decreasing how much electrical current (amps) can flow. This means the amp or stereo’s power output will be lower.

Can you splice speaker wire to add another speaker?

There are a couple of ways to splice speaker wires. One way is to twist speaker wires together and use electrical tape. However, tape wears out over time, and the smallest tug on the wires can separate the connection. The better option is an in-line electrical crimp connector (also known as a “butt” connector).

How do I connect multiple speakers to one channel?

Connect a speaker wire to the positive terminal on each speaker. Both speaker’s positive wires should connect to the same positive terminal. Connect a speaker wire to the negative terminal on each speaker. Both should connect to the same negative terminal at the output at the amp.

Can I wire left and right to one speaker?

No, you could potentially damage the amplifier by booking the two channels together. When you wire both sides to one speaker, it is the same as hooking the wires from each channel up to each other. This would result in a direct short and cause damage to the amplifier. Do not do this.

How many watts is 70 volts?

PowerVoltageCurrent70 Watts70 Volts1 Amps70 Watts35 Volts2 Amps70 Watts23.333 Volts3 Amps70 Watts17.5 Volts4 Amps

What speaker wire can be buried?

The most common UL Ratings for direct burial speaker wire are CL2 and CL3. These ratings are to show you the amount of voltage the wire can withstand in the event of an electrical surge. CL2 can withstand up to 150 volts and CL3 can withstand up to 300 volts.
