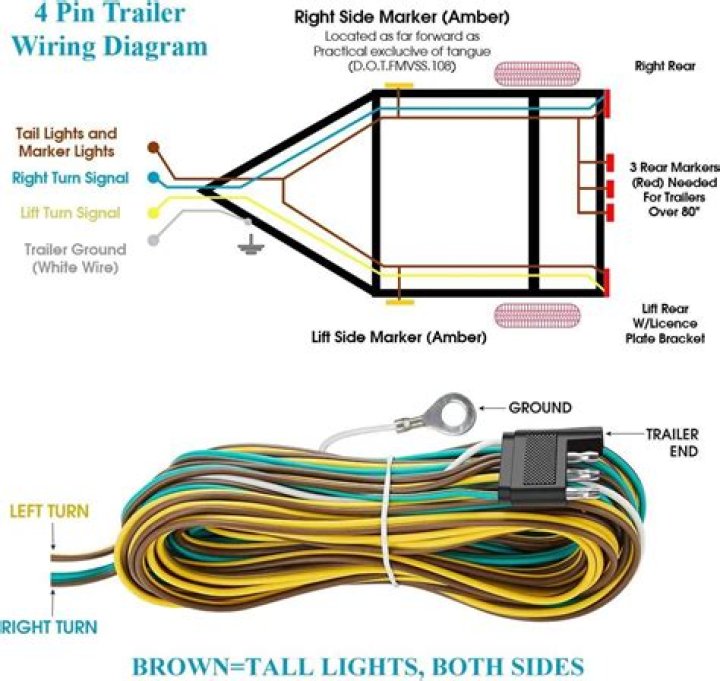

Trailer Wiring Colors Each connects to a different function: Brown wire to the tail or parking lights. Green wire to right turn signal/brake light. Yellow wire to the left turn signal/brake light.

What color wires go together for trailer lights?

Trailer Wiring Colors Each connects to a different function: Brown wire to the tail or parking lights. Green wire to right turn signal/brake light. Yellow wire to the left turn signal/brake light.

What are the 4 wires on a trailer plug?

The four colors that make up your 4 wire trailer cable’s color code are brown, green, yellow, and white. Each color in a 4 wire trailer wire has a specific function. Usually, if you screw up a trailer’s wiring, you will end up with a blown fuse.

What are the 3 wires on trailer lights?

Expert Reply: A lot of trailer lights have 3 wires. One wire for running lights, one wire for turn signal and brake lights, and one wire for ground.

Do trailer lights need to be grounded?

Each lamp needs to be grounded either through its mounting studs being in direct contact with the trailer frame or by having a jumper wire ran from the lamp to the trailer frame. Ground the trailer connector at the front of the trailer, which will use the trailer frame as a ground wire.

Are all 7 pin trailer connectors wired the same?

Helpful Expert Reply: Yes, there is only one type of 7-way blade connector.

What is white wire on trailer lights?

The White Wire is the “Ground” or “Negative” wire connecting to the vehicle battery “minus” side. The trailer wiring diagram shows this wire going to all the lights and brakes. Also, it must connect with things (if included) that use the Aux Power and Back-up lights too.

Does a 7 pin connector control brakes?

What is difference between a 4 pin and 7 pin trailer connector? Expert Reply: … A 7-Way has these functions and a 12 volt circuit, a circuit for electric trailer brakes (requires a brake controller in the vehicle), and a reverse light or auxiliary power circuit. There are other types of connectors as well.

How many wires does a trailer light have?

Trailer Light Wiring Basics It is referred to as such as the system needs a mere four wires for the trailer tail lights, turn signals and brake lights to illuminate.

What is the black wire on a trailer?

The black wire of the Hopkins 7-Way Molded Trailer Wire Connector # HM20048 carries the 12 volt accessory circuit. This is the circuit that will typically power interior lights or charge a trailer’s battery.

Article first time published on

How do you wire a 5 wire trailer to a 4 wire plug?

1. Cut the 5-wire harness off the trailer’s tongue leaving as much wire as possible. …
2. Attach the 4-wire harness’s green wire to the trailer’s green wire with a butt connector. …
3. Connect the yellow, white and brown wires of the harness to the like-colored wires on the trailer with butt connectors.

What color are the wires?

FunctionlabelColor, commonProtective groundPGbare, green, or green-yellowNeutralNwhiteLine, single phaseLblack or red (2nd hot)Line, 3-phaseL1black

Why are my trailer lights not working?

Because the most common reason for trailer lights not working properly is a bad or missing ground, check the trailer’s and truck’s ground connection first. A poor ground often becomes the culprit when only some lighting functions are working and when lights go out when you push the brake pedal.

What is difference between 4 pin and 5 pin trailer connector?

5-pin trailer wiring is very similar to 4-pin wiring, but it adds in a blue wire for the reverse or backup lights. Not all trailers have reverse lights, so consider your own trailer as you wire in a 5-way plug.

When I hit my brakes my trailer lights go out?

It sounds like you have a ground issue. When trailer lighting does not have a sufficient ground many different scenarios can show up, but the most prevalent is when the most amperage is applied, like tail lights on and brake pedal pressed, the lights go out. All lights must be properly grounded for proper function.

How do you ground trailer lights on an aluminum trailer?

Helpful Expert Reply: Aluminum trailer frames or bodies can cause grounding issues so I suggest using a separate ground wire that runs from the rear of the trailer up to the main ground post in the junction box like # 38656.

Which wire is hot on trailer wiring?

The only wires that could be hot all the time on a trailer connector are the 12 volt hot lead, which is usually a black wire, and, if applicable, the auxiliary power wire, which is normally yellow or purple. The blue wire is usually for electric trailer brakes and if it is hot all the time that would indicate a short.

Is the white wire ground on a trailer?

The white wire is going to be the ground wire. … Normally on a trailer wiring harness the brown wire is running lights, yellow is left turn signal and brake lights, and green is right turn signal and brake lights.

What is the yellow wire on trailer lights?

Normally, the green wire on the right side carries right turn signal and brake light functions and the brown wire carries running light functions. On the left side, the yellow wire carries left turn and brake lights and the brown wire again carries the running lights.

What is the blue wire for on a 7 pin trailer plug?

It is an auxiliary wire typically used to connect the reverse lights from the tow vehicle to the reverse lockout solenoid located directly behind a surge brake actuator. When properly connected it allows you to disengage the trailer brakes in order to back the trailer up (without getting out of the vehicle).

Are 7-way trailer plugs universal?

• Versatility of connecting to trailers with 7-way flat pin or 4 flat connectors without the need for an adapter.
• Flexible 10 in. …
• All mounting hardware included.
• Dirt and weather-resistant protective cover.

How do you hook up a license plate light on a trailer?

You can wire a license plate light like part # LPL55CB without running wiring up to the front of the trailer. You simply attach the white wire with the ring terminal to a clean, bare metal surface like the trailer frame, and then attach the black wire to the running light wire that leads to the tail light.

What are the 3 wires on LED lights?

LED Lights with 3 wires will be a multi-function light. They can (most times) be used in whatever configuration is right for your application. For example, running and brake, running and blinker or brake and blinker. These LED’s will usually have a black, red and white wire.

What are the 4 wires on LED lights?

RGB strip light has a 4-wire connection, where green, red and blue are for the green, red and blue LEDs, and the black/white wire is the common +12V connection.

Which is the positive wire on an LED?

LED polarity The voltage supply side of the diode is the positive (+) side, this is called the anode. The negative side is called the cathode.

What are the red white and black wires on trailer lights?

It is likely that the red wire on your old lights is the turn signal/brake light wire and the black wire is the running light wire. That would make the white wire the ground. You can verify this by testing the wires using a circuit tester such as # 40376.
