With a two-stage pump, a transfer valve is located at the outlet of the first-stage volute. It directs the water either to pump discharge VOLUME (parallel) position, or to second-stage intake PRESSURE (series) position, depending on the pump performance desired.

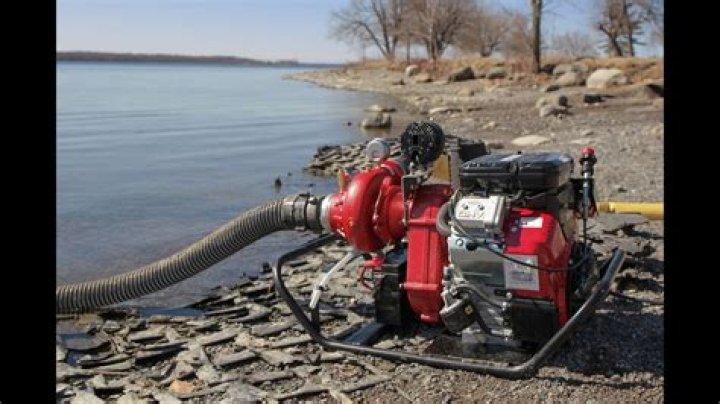

What is a two-stage fire pump?

A two-stage pump has two suction impellers operating side by side. The operator must decide if he wants volume or more pressure by selecting a switch on the pump panel. … The pump operator must be comfortable with a transfer valve and decide when to use volume versus pressure.

What is the primary reason for using a two-stage oil pump?

The answer is that a two-stage pump satisfies the special need to pump fuel oil which has certain characteristics that defy efficient pumping by single stage pumps. Fuel oil starts to break up, or “boil” at vacuum levels as low as 10 inches of mercury. When that happens, foamy oil collects within the pump.

How does a 2 stage centrifugal pump work?

A multistage centrifugal pump is designed with two or more impellers. … As part of the pump design, channels within the pump casing work by routing the discharge of one impeller to the suction of another. Water enters the pump and then passes through the multiple impellers in a series, going from the left to right.

Will a two-stage pump probably be more efficient than a single stage pump Why?

If you have an apparatus that frequently flows at or near the rated capacity of the pump, then a single-stage pump will probably be the best choice. It will flow rated capacity more efficiently (with less engine speed) than a two-stage pump (even though both pumps may have the same 1,500-gpm rated capacity).

What is the advantage of a multistage pump?

Multistage centrifugal pumps offer the benefit of better efficiency due to tighter impeller clearances and smaller impeller diameters. Higher pressure can be achieved with a smaller motor size and less energy. They also have a smaller footprint.

How do multistage pumps work?

How does a multi stage pump work? A multistage pump operates by one impeller feeding into the next impeller and the number of impellers required depend on the discharge pressure requirement. Liquid enters the pump and then passes through the various number of impellers in a sequence from the left to right.

What is stage pump?

What is a multistage pump? A pump that contains different stages within the piping system where force is applied to the water. Each stage consists of one impeller as well as its accompanying diffusion components. The term “multistage” is usually used in reference to centrifugal pumps.

What does stage mean in submersible pump?

Submersible pumps can feature a single stage or multiple stages. Each stage consists of a motor in a casing, closed with mechanical seals to prevent leakage. The motor is connected to a cable that generates power to run the motor, and the casing extends to some sort of pipe or hose leading to the surface.

What is a 2 stage oil pump?

This pump gives you the option of scavenging oil from the oil pan with one stage and using the second stage to scavenge oil from turbos or superchargers and areas that require oil to be scavenged.

Article first time published on

What products of combustion are produced with ideal combustion when fuel oil is burned?

What product of combustion are produced with ideal combustion when fuel oil is burned? Heat, Carbon-dioxide and water vapor.

What is difference between single stage and multistage pump?

The primary difference between single and multistage pumps is their impellers and how this affects operation. Whereas a single stage pump has only one impeller rotating around the shaft, multistage pumps have two or more.

What is double stage motor?

(34 products available) Video. All India.

What is the difference between single stage and two stage vacuum pump?

What is the difference other than price? A two stage design has two rotors and vanes. This means that the first stage generates vacuum and the second stage cleans the system, leading to a deeper ultimate vacuum level. As a result, two stage pumps can produce a deeper vacuum than single stage pumps.

What does multistage pump mean?

Multistage pumps are defined as pumps in which the fluid flows through several impellers fitted in series. … This type of pump is often used in power station applications, e.g. as a boiler feed pump and in industrial applications requiring high pressures.

What is a single stage centrifugal pump?

A single-stage centrifugal pump consists of one impeller rotating on a shaft within a pump casing which is designed to produce fluid flow when driven by a motor. It is one of the simplest designs of pumps available and many variations in design exist to satisfy the duty requirements of applications.

How does a multistage vertical pump work?

A vertical multistage pump is a centrifugal pump containing two or more impellers. … The rotation of the impeller creates centrifugal force which directs the fluid along the impeller vane and pushes the fluid to the outer tip of the impeller vane where it enters the stage diffuser.

How many impellers does a multi stage centrifugal pump have?

How many impellers does a multistage centrifugal pump have? Explanation: The centrifugal pump consists of two or more impellers. The impeller is mounted on one shaft or different shaft. A multistage centrifugal pump has more than two impellers.

What happens to the reciprocating pump when left untouched?

2. What happens to the reciprocating pump when left untouched? Explanation: When left untouched over a period of time, the reciprocating pump undergoes wear and tear. Reciprocating pumps have a good life provided that they are not left untouched.

When would you use a multistage pump?

• Reverse Osmosis.
• Boiler Feed.
• Shower.
• Spray.
• Cogeneration.
• Pressure Boosting.
• High Pressure Cleaning.
• Snow making.

What is the common application of multistage centrifugal pump?

Explanation: The most common application of multistage centrifugal pump is boiler feed water pump. Explanation: A multistage centrifugal pump produces a pressure of 21 MPa. A multistage centrifugal pump has more than two impellers.

What is a multistage centrifugal pump used for?

Multistage centrifugal pumps are used for a wide variety of industrial applications thanks to their increased efficiency and ability to pump fluids at higher pressures. boiler feed water Pumps feed water into a steam boiler. firefighting Used to pressurize water to help extinguish fires.

How do I know what stage my submersible pump is?

The submersible pump stage calculation tells you how many stages are required. You find it by dividing the total dynamic head (TDH) by the length of each stage. The TDH is the equal to the sum of the pumping level, head length, drop pipe friction loss and check value friction.

How many stages does a submersible pump have?

The motor used to drive the pump is typically a three-phase, squirrel cage induction motor, with a nameplate power rating in the range 7.5 kW to 560 kW (at 60 Hz).

At what depth should a submersible pump be installed?

Your submersible pump should be installed no less than 5 feet (1.5 meters) from the bottom of your well.

How many stages are in a multistage pump?

A multistage pump is a type of centrifugal pump that pressurizes the fluid in multiple stages (two or more stages). Because this pump uses more than one stage, therefore, it is known as a multistage pump.

Are multistage pumps centrifugal?

Design-wise, multistage pumps are centrifugal pumps with multiple stages or chambers, each housing an impeller and guide vanes or volute. … The simplest design of multistage pumps allows the fluid to flow through the chambers linearly. In principle, fluid pressure goes higher and higher with the addition of every stage.

How low can the oil tank be below the oil burner before the oil pump Cannot pump the oil to the burner?

Your furnace or boiler will most likely stop running if you let the oil level get down to about four inches, or about 32 gallons.

How many grades of fuel oil are normally considered heating oils?

There are two grades of heating oil, Number 1 fuel oil and Number 2 stove oil, both of which are volatile and intended for cooking.

Can I put a smaller nozzle in my oil burner?

You can substitute an oil burner nozzle SIZE that’s a bit larger or smaller – that’s the gallons-per-hour number, or for your two examples 0.75 gph is the same on both nozzles. … If your original nozzle was 60 degrees and you go to an 80 degree you’re installing a nozzle with a wider, shorter flame pattern.

Which pump is the most efficient centrifugal pump?

In general, a reciprocating pump is more efficient than a centrifugal pump.
