A 24 VAC (volt alternating current) transformer is a step-down type of transformer. The device typically converts 120 VAC to a lower voltage for use in push buttons. … The lower voltage is sent to the push button to engage the chime mechanism.

How do I know if my 24 volt transformer is bad?

If the meter indicates an open circuit or infinite resistance, the transformer is bad on the high side and must be replaced. Follow the same procedure on the low side connections. The meter should give the same resistance reading results in ohms for the low side.

What causes a 24v transformer to fail?

The more current that flows through the transformers coil, the hotter those tiny wires get. Get the wires too hot, and they will break. Heating and cooling cycles of the transformer can cause the wires to become brittle, which can also lead to failure over time.

Does 24VAC have neutral?

When you get a transformer 24VAC 40VA from the wholesaler it has three wires on the primary side: line, neutral and ground but you only have two wires on the secondary (24VAC) side. … This also gives an electrical path to ground, which is always a good thing.

What causes a 24v transformer to go bad?

In most cases, the thermostat wires have shorted out somewhere and the thermostat wires are the problem. I have seen other components inside the air conditioning system with coils and electronics cause the transformer to burn up. … Most of the time it is in the thermostat wiring.

Should 24VAC common be grounded?

that the secondaries of all transformers that supply 24 VAC be grounded. IF a grounded secondary is mandated, ground the common (–) wire from the transformer to an equipment grounding screw in the equipment enclosure. If more than one controller is powered from the transformer, ground both at the same ground screw.

What does 24VAC mean?

The 24VAC can be used in HVAC systems to send a signal from the thermostat to turn on the heat or cooling. It is also sometimes used to synchronize the thermostat’s internal clock and supply power for electronics and pilot lights.

How do you know if a transformer is good or bad?

To test your transformer, simply touch the red and black pins of your ohmmeter to the opposite ends of the transformer’s wiring. Read the display and compare the resistance on your ohmmeter to the resistance stated on the transformer’s data sheet. This is sometimes listed on the transformer’s enclosure.

What does R and C mean on transformer?

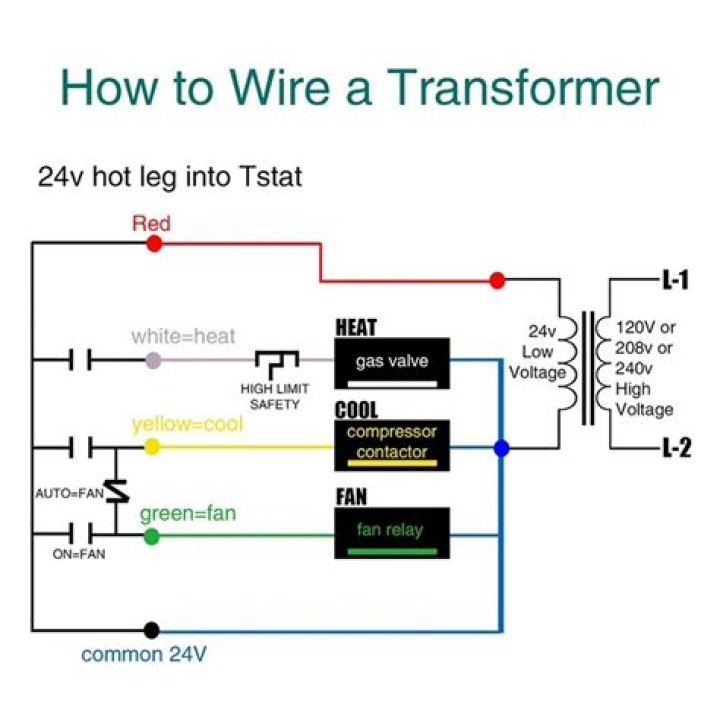

In the case of HVAC/R systems, the power source is a low-voltage transformer (usually a 24 VAC transformer) and the two wires supplying the power are labeled C (common) and R. … For systems that do not have access to the C wire, a battery in the thermostat compartment must be used.

What is the basic principle of a transformer?

Principle – A transformer works on the principle of mutual induction. Mutual induction is the phenomenon by which when the amount of magnetic flux linked with a coil changes, an E.M.F. is induced in the neighboring coil.

Article first time published on

Does a 24v transformer get hot?

Your transformer will get hot if there is too much current draw too. There should only be 2 contactors (relays) powered from that transformer. They should not cause the voltage to drop past 24v.

Should a 24v transformer be hot?

It’s normal for the typical cheap 24VAC 40VA transformers used in security systems and security camera get hot enough to discolor their plastic shells, so I’d say it’s normal for a similar furnace transformer without a plastic shell will get just as hot even though I’ve never actually touched or measured mine on my …

How does a transformer burn out?

The most common reason why transformers explode and burn is accidents caused by lightning strikes. Lightning strikes can often damage the wiring and transformer equipment. Other extreme weather conditions such as strong winds and rains can cause trees to fall on transformers, causing explosions.

What do you do when a transformer blows?

When a transformer near you blows, call your utility company immediately. It’s likely that they are already aware of the failed transformer, but call them anyway and provide as much detail as possible. Technicians may take a few hours to a few days to fix the transformer depending on the weather and cause of failure.

Why does my transformer keep burning out?

What causes a furnace transformer to blow? … Wiring problems: if there are loose cables or wires inside your transformer, they may cause a short circuit, frying the transformer. Power surges: similarly, a power surge may also cause your transformer to blow, resulting in problems with the entire unit.

Why does my transformer keep blowing?

A transformer can fail for a variety of reasons, but the most common causes include lightning strikes, overloading, wear and corrosion, power surges and moisture. Regardless of the cause, the result can be remarkable. Transformers contain mineral oil keeping the transformer cool.

Can you power a 24VAC relay with 24VDC?

No,because 24VDC is a rectified 24VAC and will be alternating whiles the the relay actually needs a direct voltage supply to function properly.

Is 24VAC considered low voltage?

Low voltage is defined as 50 volts (V) or less. Common low voltages are 12V, 24V, and 48V. Low voltage is normally used for doorbells, garage door opener controls, heating and cooling thermostats, alarm system sensors and controls, outdoor ground lighting, household and automobile batteries.

What is 24VDC power supply?

A 24V Power supply can change AC to DC. In addition to converting the AC power to DC power, the voltage level can be adjusted at the same time. Some devices need DC but only have access to the AC coming from the wall.

Why do you ground the secondary side of a transformer?

The secondary side neutral is grounded so that when an active conductor has a fault that brings it into contact with “earth” (e.g. it touches its metallic enclosure which is earthed), then there is a low resistance return path to the neutral – so that the fault current is sufficiently great the ensure it quickly trips …

What happens if transformer neutral is not grounded?

Neutral grounds provides an alternate path to return back the load current to transformer, in the event of ground fault condition. So if not grounded, there is no way to bypass the fault to make it zero potential.

Which wire is common on 24v transformer?

The C wire, or “common wire” enables the continuous flow of 24 VAC power to the thermostat. Technically speaking, power flows from the R (red) wire, but not continuously (not on its own, anyway).

What is the blue wire on a transformer?

There are usually four wires–two black and two more that are yellow, green or blue. The two black wires will be connected to the 120 VAC input, while the yellow, green or blue wires are the 24 VAC output.

Can I connect C wire to transformer?

If you have a heat-only system connected to your Sensi thermostat, an easy option for adding a common, or c-wire, is to install a 24 VAC wall plug-in transformer. … Insert one wire into the unused “R” terminal on the thermostat (RC or RH) and the other wire into the “C” terminal.

What causes no power to thermostat?

Dead Batteries No power to thermostat could also be caused by old batteries. When it comes to the controls and display on your thermostat, these are typically powered by batteries. Over time, these will wear out and stop working. If it has been a while since you changed these batteries, this could be your problem.

How do you test a 24 volt coil?

1. Set your multimeter on ohms. If the multimeter is not automatic, set it on 2k ohms. …
2. Place the probes of multimeter across the pins of a solenoid coil. If you find 3 pins there, one of them is a flat pin which is connected to the ground. …
3. Read the number on the multimeter.

What should a 24 volt battery read?

Full voltage is 28.7 volts on a 24 volt system.

Why does my thermostat not have 24 volts?

Low voltage HVAC equipment In fact, many thermostats are powered by the 24 volts from the transformer. This transformer is located inside your HVAC equipment. … Another reason why there’s no power to the thermostat could be due to a bad transformer or even a faulty wire running from the thermostat to the transformer.

Which side of a transformer has a higher resistance?

The high voltage winding will have more turns using a smaller cross section wire. This makes it the longest of the windings and the one with the highest resistance. The HV winding will have higher resistance, irrespective of whether it is used as a step up or step down transformer.

What makes a transformer stop working?

Usually, a transformer fails only after another part in the electrical circuit shorts to ground or draws an unusually high amperage. In these cases, replacing the transformer without first finding and correcting the fault will only cause the transformer to fail again.

How do you tell if a transformer is step up or step-down?

If the input supply is supplied on the low-voltage winding, it becomes a step-up transformer. On the other hand, if the input power is supplied on the high voltage winding, the transformer becomes a step-down transformer.
