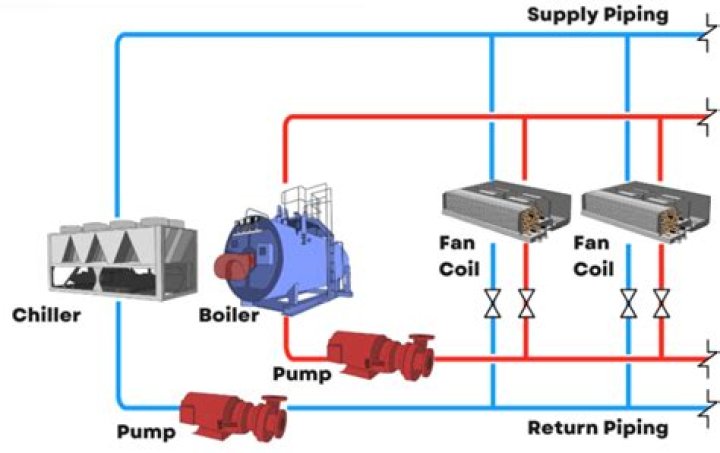

The 4-pipe HVAC system has two supply and two return pipes for both heating and cooling. That means that the heating and cooling coils have separate hydronic piping. You can simultaneously heat and cool a single condo, which allows for dehumidification.

What is the main benefit of a 4 pipe system over a 2 pipe fan coil system?

The 4 pipe system has two available sources (heating and cooling) which makes the fan coil independent of the system mode. Unlike to the 2 pipe system, it can cool and heat at the same time allowing for dehumidification to occur. This is the configuration required when setting up an analog valve in a 2 pipe fan coil.

What is a fan coil heating system?

A fan coil unit (FCU) is a device that uses a coil and a fan to heat or cool a room without connecting to ductwork. Indoor air moves over the coil, which heats or cools the air before pushing it back out into the room.

How do 4 pipe chillers work?

The Four-Pipe System To make this happen, the chilled water coil removes whatever moisture it can from the air while operating at maximum capacity. The hot water coil then compensates for excess cooling, resulting in air that is both the desired temperature and the correct level of humidity.

What is a 4 pipe heating system?

Four-pipe systems have separate heating and cooling fan coil units and separate pipes for heating and cooling. This means that hot or chilled water is always available, so the system can immediately change over from heating to cooling mode.

What are the disadvantage of two-pipe system?

The two-pipe system’s main limitation is its lack of operating flexibility. Depending on the facility’s needs, the system’s hydronic piping circuit that runs throughout the building must connect to the boiler or the chiller.

What is a 2 pipe fan coil system?

A 2 Pipe Fan coil system is a single closed loop supply and return water distribution system that serves each suite. The building has a central chiller and cooling tower to cool the water in the loop and a Boiler to heat the water in. the loop.

What is hydronic pipe?

Hydronics is the use of water as the heat-transfer medium in heating and cooling systems. A hydronic piping system is used to circulate chilled or hot water with the connections between the piping and the terminal units made in a series loop.

Is a fan coil a heat pump?

With a heat pump system, a fan coil (air handler) is located inside the home and includes the fan and the heating/cooling coil. We have several options available including variable and multi-speed features that can deliver improved indoor comfort and reduced system noise.

How does a 4 pipe heat pump work?

Four-pipe systems have two independent water circuits – one with chilled water for room cooling, the other with hot water for heating. All terminal units in four-pipe systems are equipped with two independent coils, and can cool or heat according to space requirements.

Article first time published on

How does a 2 pipe system work?

A 2-pipe HVAC system is one that uses the same piping alternately for hot water heating and chilled water cooling, as opposed to a 4-pipe system that uses separate lines for hot and chilled water.

How does a heat recovery chiller work?

As the heat recovery chiller removes heat in the evaporator from cooling load to the condenser, and then recovers heat rejection from the condenser to the cooling tower. … The higher heating water temperature is, the lower efficiency and cooling capacity is, even the chiller operates unsteadily and break down.

Is a fan coil the same as an air handler?

AHU, completely known as air handling unit is different from FCU or the fan coil unit. AHUs are usually connected to a central HVAC system whereas an FCU can function or be installed itself. … It is only composed of a simple coil and fan. Ordinarily, AHUs have certain features that are not present in the FCU type.

What applications would a fan coil system be appropriate for?

Fan coil units offer ideal functionality to places where heating and cooling requirements are concentrated or on a room-by-room basis, such as offices, showrooms, hotel rooms and condominiums. Fan coil systems are used to condition the local air to suit the temperature requirements of the immediate space.

How long do fan coils last?

The standard lifespan of an FCU is about 20 to 30 years; however, industry experts will often anticipate the former. Over those decades, the FCU will experience standard issues pertaining to what’s commonly known as ‘wear and tear’, wherein components within the unit will eventually degrade and lose effectiveness.

What is a VRV system?

VRV is a technology that alternates the refrigerant volume in a system to match a building’s precise requirements. Only a minimum amount of energy is required for a system to maintain set temperatures, and ensure that it automatically shuts off when no occupants are detected in a room.

What is one pipe and two pipe system?

Two Pipe System. One pipe collects the foul soil and water closet wastes, and the second pipe collects the water from the kitchen, bathrooms, house washings, etc. The soil pipes are directly connected to the manhole/drain, where is the waste pipes arc connected through a fully ventilated gully trap.

How is water cooled in a cooling tower?

A cooling tower is a specialized heat exchanger in which air and water are brought into direct contact with each other in order to reduce the water’s temperature. As this occurs, a small volume of water is evaporated, reducing the temperature of the water being circulated through the tower.

What is a 3 pipe VRF system?

Heat Recovery VRF – 3 Pipe System Each outdoor air-cooled condenser is connected via 3 pipes to an indoor heat recovery unit; a high pressure gas refrigerant line (for heating), a high pressure liquid refrigerant line (for cooling), and a low pressure gas suction line (for return to the outdoor unit).

What are the types of piping system in hydronic system?

• Single or one-pipe.
• Two pipe steam (direct return or reverse return)
• Three pipe.
• Four pipe.
• Series loop.

What is two pipe system of plumbing?

In this plumbing system, two pipes are installed. Cs and urinals are connected to vertical soil pipe baths, kitchens, basins, etc are connected to another separate vertical waste pipe. … Soil pipes and waste pipes are provided with separate vent pipes.

Does a two pipe system have any advantage over a one-pipe system?

The advantage of the two pipe system is that the water in the primary ‘flow’ pipe is only used in one radiator before being returned to the primary return pipe for reheating. This means it is now possible to achieve equal temperature in all radiators unlike the older single pipe system.

What are the advantages of one-pipe system?

One-pipe system with vertical distribution The water is distributed from above from the horizontal distribution pipe. A single air vent is sufficient at the top. Since there is only one pipeline to the radiators, the system is visually more acceptable. This is an advantage in a system where the pipes are exposed.

How does a one-pipe heating system work?

In a one-pipe heating system all radiators are connected to the same pipe, which acts as both flow pipe and return pipe. This means that the temperature decreases along the pipe. For this reason, the radiators along the pipe line should increase in size correspondingly to provide the same heat output.

Is a fan coil the same as an evaporator coil?

These indoor coils are either fan coils or evaporator coils. The principle in each is the same. These coils promote heat exchange that leads to home comfort.

What's the difference between fan coil and evaporator coil?

What is a Fan Coil? Fan coils and evaporator coils are often confused because they both remove heat from inside a building. … Fan coils also contain AC blowers, which are responsible for returning refrigerants to a liquid state for additional heat absorption before sending it back to the evaporator coil.

What is hydronic cooling?

Hydronic cooling is simply the removal of heat from the space utilizing chilled water as the heat exchange medium. As opposed to evaporative cooling which introduces humidity into the space, hydronic cooling is completely closed loop meaning no water is added to the space for the purpose of cooling.

Can you use PEX for hydronic?

Yes, PEX pipe is approved for radiant or hydronic heating applications. Since ferrous components are likely to be present in the system, it is important to use oxygen barrier PEX pipe to help prevent ferrous components from rusting.

How does a hydronic system work?

A hydronic system uses water or steam, heated by a boiler, to heat your home. Water enters the boiler’s combustion chamber via a circulator; once heated, the water is distributed through pipes to heat baseboards or radiators throughout your home.

What is a water source heat pump?

The water source heat pump replaces the outdoor fan and coil with a heat exchanger. For this system to work the building provides a loop of water. This water loop includes a cooling tower and a boiler to maintain the water entering and leaving the unit for optimal performance.

Why is the 2 pipes to a radiator?

The two-pipe system consists of – you’ve guessed correctly – two separate pipes: one that feeds hot water to the radiators and one that conveys used water back to the boiler. In other words, the radiators are installed in parallel.
