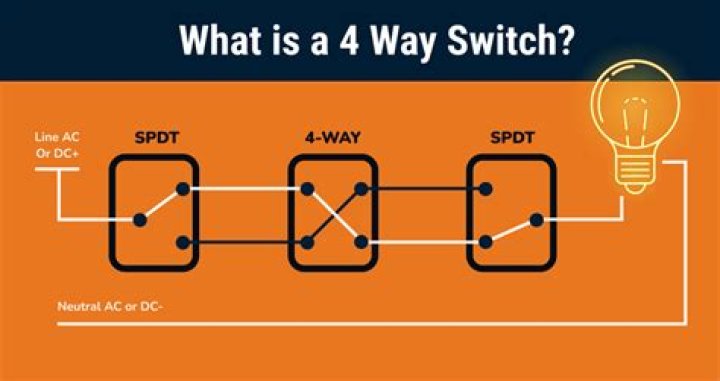

More videos on YouTube The traveler wires from the two 3-way switches attach to the screws on the four-way switch. Connect the two travelers from one 3-way switch to the bottom two screws on the 4-way switch. It doesn’t matter which traveler wire goes on which bottom screw.

Does it matter which wire goes where on a 4 way switch?

More videos on YouTube The traveler wires from the two 3-way switches attach to the screws on the four-way switch. Connect the two travelers from one 3-way switch to the bottom two screws on the 4-way switch. It doesn’t matter which traveler wire goes on which bottom screw.

Is a 4-way switch double pole?

Double pole light switches, also known as a four-way switch, are two single pole switches put together. Two separate circuits are controlled by one switch. This is typically used to control a circuit from multiple locations in a series of three switches on one circuit.

Is there a constant hot in a 4 way switch?

A 4 way switch will only be connected to traveler wires, never to a hot source or load wire and never to a neutral wire. Also, confirm that each pair of travelers on a 4 way are only connected to one switch per pair. Check that the neutral from the source is only connected to the neutral terminal at the load.

Can I pull power from a 4-way switch?

Of course it’s possible. You can change the middle to an end or you can run the power from there to the end that needs the power. It is easiest if power goes to one of the switches and the fixtures are connected to one of the other switches and the third switch, or more, are in between.

How do you identify a 4-way switch?

4-way switches have four terminals each with two pairs of travelers (one set usually black and one set usually brass color). A four switch configuration will have two 3-way switches, one on each end and two 4-way switches in the middle.

Are all 4-way switches wired the same?

4-way switches are always wired in conjunction with two 3-way switches. That is to say that any time you find a 4-way switch, there will also be two 3-way switches controlling the same light fixture. 4-way switches are only used when there are 3 or more light switches controlling one light fixture.

What are the 4 types of switches?

• SPST (Single Pole Single throw)
• SPDT (single pole double throw)
• DPST (double pole, single throw)
• DPDT (double pole double throw)

Why does my 4-way switch not work?

Usually when a 3-way or 4-way switch fails, lights can be toggled on and off on all but one switch. Any switch that toggles the light(s) on and off is probably working properly. … Toggle each switch until the light come on. Toggle the first switch to see if it turns the light on and off.

Why is there 4 wires in my light switch?

2 Answers. Vivek, as you said in your answer, the other black wire feeds the remaining devices on the circuit. When you switched the connections around, you changed it so the additional devices in the circuit would be interrupted.

Article first time published on

What are the 4 wires in a light fixture?

The black is the “hot” wire, the white is the neutral, and the copper is the ground. When you put a switch in a circuit you now have 6 wires – three coming in and three going out. Since the switch cuts the power on and off, there will be a black wire coming into the switch and a black wire leaving.

What is the difference between 3 way and 4-way switch?

A three-way switch has three terminals; a four-way has four. These control a light from two or three switch locations, such as at the top and bottom of a stairwell, at either end of a hallway, or in a large room with multiple entrances. … You can usually replace any single-pole switch with a dimmer.

Can you use a 4-way switch as a 3 way?

A 4way switch will not work in place of a 3way. The common toggle (in), whether up or down on a 3way switch, comes in contact with both switch leg (out) terminals. A 4way switch will not accomplish this. The 4way is more like two “separate” single gang switches, they will not work in unison as one.

How many pole are there in a single pole switch?

A single pole switch has one input and one output, it has two states; “on” or “off”. They can be wired either normally open or normally closed and can be either latching or momentary. There are two types of single pole switch, these are “single-pole, single throw” and “single pole double throw”.

Does a 4 way switch have a neutral?

You can add another light, if needed, at the 4way by tapping into the black and white switch leg wiring that passes through the 4way switch box. Too many connections at a difficult location to access; the light on the ceiling. Also, there is no neutral at the switch boxes.

How do you add a 4 way switch to a 3 way circuit?

All you need to do is find the 4 wire that currently runs from one of your 3 way switches to the other. You will need to cut/break this and add the 4 way switch in between. The 4 way switch will have 2 terminals marked IN and 2 marked OUT.

Why is it called a 4-way switch?

Your particular switch is most probably a Double Pole Double Throw (DPDT) switch which has been internally connected to 4 terminals so that it can transpose (or swap) the pair of wires connected to it, each time it is switched. American electricians often call this a “four-way switch”.

What is a pole switch?

What Is A Pole? The pole of a switch refers to the amount of separate circuits that switch can control. Single pole switches can control just one circuit and a double pole switch can control two circuits. So a double pole switch is almost like having two single pole switches, controlled by the same switch.

What is single pole vs double pole?

A pole refers to the number of separate circuits a switch can control, a single pole switch can operate one circuit whereas a double pole switch can control two circuits. A throw refers to how many positions can be activated by a switch.

What is a three pole switch?

Three pole or three-way switches are used to control one or more lights or fixtures from multiple locations, such as the top and bottom of a flight of stairs. … Closer inspection reveals that while a single pole switch has two terminals, a three pole switch has three.

When should you use a 4 way switch?

Each opening from which you can enter or leave a room should have a switch that controls the lighting within that room. For example, if you have a living room that has three openings you need a four-way switch in order to control the lighting in the room.

What is 4 wire used for?

4-Wire: A 4-wire transmitter is either powered by a 110V or 220V power supply. This allows direct activation of relays, pumps, solenoids, etc.

How do you connect 4 wires to 2 wires?

The first option is to use the black wire of the 12-3 cable as the hot wire. Connect the black wires of both cables together, and connect the common white wires together. Cap the red wire and leave it untouched in the junction box. Place plastic twist caps on all splices.

Why do some electrical cables have 4 wires?

If a neutral path is provided, they take the neutral path, which is then safely grounded, so that currents from one phase don’t creep into other phases. So things like flickering of lights in your house when your neighbour switches on his AC are avoided by using a 4 wire system.

Why does my electrical outlet have 4 wires?

This circuit allows for the bottom receptacle to be switched while the top receptacle will remain hot at all times. To perform this circuit, you will need to use a 4-wire cable to allow for the extra circuit.
