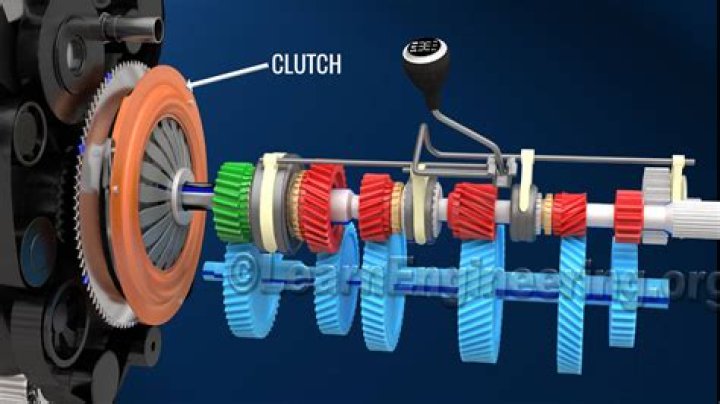

A clutch works with two rotating shafts — one that is typically driven by a motor or pulley and one that drives another device. The clutch connects the two shafts so they can either be locked together and spin at the same speed, or be decoupled and spin at different speeds.

How does the clutch system work?

A clutch works with two rotating shafts — one that is typically driven by a motor or pulley and one that drives another device. The clutch connects the two shafts so they can either be locked together and spin at the same speed, or be decoupled and spin at different speeds.

What are the parts of clutch system?

• Clutch Plate.
• Clutch Cover.
• Clutch Bearing (Release bearing)
• Release Fork (clutch fork)

How does a clutch works engineering explained?

The clutch disc is splined to the input shaft of the transmission. … For the purposes of a clutch, a flywheel is the mating surface through which torque is transferred. It’s one of the two sides the clutch disc is sandwiched between. The flywheel is connected to the engine crankshaft and always rotates with the engine.

How does a clutch disengage?

The clutch is operated by pushing on the clutch pedal inside the vehicle, which causes the clutch to disengage, and as the pedal is released the clutch will engage. … As the lever is moved, it uses the release bearing and pushes in the clutch pressure plate to release the clutch and disengage it.

What are the four function of the clutch?

Function of transmitting the torque from the engine to the drivetrain. Smoothly deliver the power from the engine to enable smooth vehicle movement. Perform quietly and to reduce drive-related vibration. Protect the drivetrain when given the inappropriate use.

At what point is the clutch actually wearing?

The clutch only wears while the clutch disc and the flywheel are spinning at different speeds. When they are locked together, the friction material is held tightly against the flywheel, and they spin in sync. It’s only when the clutch disc is slipping against the flywheel that wearing occurs.

What do clutches transmit?

No matter the application, the function and purpose of a clutch is to transmit torque from a rotating driving motor to a transmission. Clutches require a mode of actuation in order to break the transmission of torque.

Why do clutch plates have springs?

04 Clutch Plate Springs The springs mounted on the inner hub of the clutch plate cushion the clutch engagement. They work as a torsional vibration damper to absorb fluctuations in the engine’s power delivery. As the springs work as dampers the power delivery is smoother and more linear than if there were no springs.

How does a clutch fork work?

The clutch fork and connecting linkage convert the movement of the clutch pedal to the back and forth movement of the clutch throw-out bearing. … This action allows the pressure plate’s springs to force against the clutch disc, engaging the clutch to the flywheel.

Article first time published on

What are the 5 clutch components?

• Flywheel. Flywheel is the part permanently fixed to the engine’s crank. …
• Friction Surface. The face of the flywheel has a rough surface and the clutch plate acts against it. …
• Clutch Plate. …
• Clutch Plate Springs. …
• Pressure Plate. …
• Diaphragm Spring.

What can cause a clutch to fail?

• Major Problems with Manual Clutches. …
• 1) Stretched or Broken Cables. …
• 2) Worn-out Throwout Bearings. …
• 3) Leaking Cylinders. …
• 4) Damaged Pressure Plates. …
• 5) Faulty Repair Jobs.

What are the three basic parts of clutch?

• The driving member consists of a disc or plate called clutch plate. …
• The operating members consists of a foot pedal, linkage, release or throw-out bearing, release levers and springs necessary to ensure the proper operation of the clutch.

Where does the power flow stop when the clutch is disengaged?

The power flow stops at the transmission of the input shaft when the clutch is disengaged.

Can you press the clutch and accelerator at the same time?

There’s no need to actually “release” the clutch and press the accelerator at the same time.. If you are on a flat surface, you can just release the clutch enough to start the car moving, and then keep your clutch pedal at that point. In just a moment, the clutch will finish engaging all it’s itself.

Why is my clutch not disengaging?

Common reasons for this to happen: Stretched/Broken Clutch Cable: If the clutch cable is broken or stretched, then the clutch will stick (not disengage). … Misadjusted Linkage: The linkage connects the clutch pedal to the transmission. If it’s incorrectly adjusted, the clutch may not disengage properly.

What happens if you press the clutch and brake at the same time?

When the brakes are applied at the same time with the clutch, it will bring the car to an instant stop. This occurs when there is a need to stop the car immediately. An example can be when someone or an animal suddenly comes out right in front of you.

Do you press the clutch when braking?

No , you don’t use the clutch when braking / slowing down the vehicle . Clutch connects the drivetrain to the engine , pressing the clutch will disconnect the drivetrain from the engine and your wheels will start moving at even more speed thus increasing your stopping distance .

How fast can you burn out a clutch?

A clutch for a manual transmission will normally the last you about 150,000 miles. It depends on your driving. If you always ride the clutch then you can wear it out in 20,000 miles. Drive like an old lady and keep your foot off the clutch when the car is moving and you are fine.

Why is the clutch system very important?

The clutch is one of the most important parts of any motor vehicle. … Without a properly working clutch, power does not transfer properly and, therefore, the car won’t shift. The engine in a vehicle is constantly rotating, so the clutch acts as the way to either engage that rotation or disengage it to move or stop.

Why is my clutch making a knocking noise?

Steady knocking in the clutch area can be a loose flywheel or pressure plate, bad engine or transmission bearing, a broken transmission bearing, a broken transmission gear, or loose parts bouncing around in the clutch housing.

How do you check a clutch?

Press the clutch with the car off to see if it feels firm. Sit in the driver’s seat with the car off and press the clutch. The clutch shouldn’t be too easy to press down. Pump it back and forth to test its resistance level. If it feels soft and spongy, then this is an early sign that the clutch is starting to wear out.

How does a clutch burn out?

Perhaps the reason it’s said that a clutch is “burning out” is because of excessive heat generated from a slipping clutch, or the putrid smell of a slipping clutch disc against the flywheel. … Usually, a burnt-out clutch refers to one that’s gone from good to toast in a short time.

Why is clutch hard?

Hard clutch: A hard clutch could be caused due to a worn out pressure plate, air in the hydraulic line (in case of hydraulically operated clutches), or due to a clutch cable that needs lubrication. If it is being caused due to the pressure plate, the clutch assembly needs replacement.

What is an aggressive clutch?

The clutch is what transfers engine power from the crankshaft to the transmission. It consists of a flywheel and pressure plate (PP) which are bolted together with a friction disc sandwiched in between. … An aggressive clutch can create chatter where the materials lock and unlock rapidly.

What is single plate clutch?

A single plate clutch has one clutch plate. This clutch works on the principle of friction. It is the most common type of clutch used in motor vehicles. The clutch primarily consists of two members, one mounted on the driving shaft and the other on the driven shaft.

Do automatic cars have clutches?

Both manual and automatic transmission cars have clutches that engage the transmission to channel the engine’s power and move the vehicle’s wheels, or disengage it to stop the wheels even when the engine is still running.

What pushes on the clutch release bearing to operate the clutch?

The plate has friction linings, similar to brake linings, on both its faces. This allows the drive to be taken up smoothly when the clutch is engaged. When the clutch is disengaged (pedal depressed), an arm pushes a release bearing against the centre of the diaphragm spring which releases the clamping pressure.

What is throwout bearing?

A throwout bearing is used on vehicles with a manual transmission. It’s part of the mechanism that disengages or releases the clutch when the driver presses down on the clutch pedal. As such, it’s sometimes also called a release bearing.

What symptoms would the driver experience if the clutch was contaminated with oil?

Unusual noise or jerking – Anytime your car jerks into gear with otherwise proper use of the clutch, it’s not a good sign. You may also hear unusual noises when shifting. These are indicators of possible oil or other contaminants on the clutch or gears.

How does the diaphragm spring type clutch works?

Working Of Diaphragm Clutch :- As the bearing contacts with inner position of the conical springs it moves that position forward which cause the link to move backward. This removes the pressure on the pressure plate and release the clutch plate from contact with other driving members.
