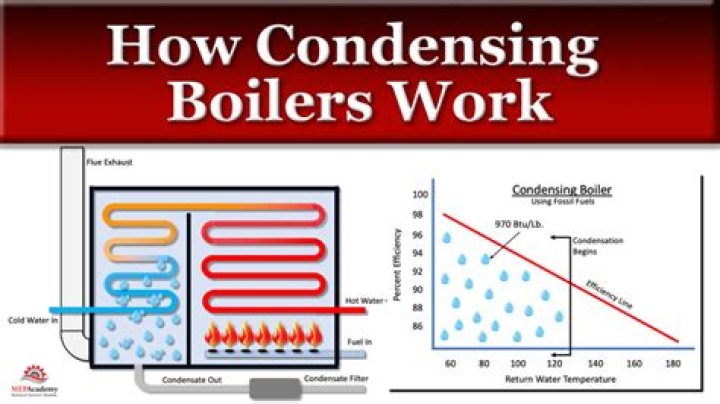

Condensing boiler work by condensing water vapour in exhaust gases which recover latent heat that would otherwise have been wasted or vapourised through the flue. Condensing boilers are also known as high efficiency boilers and achieve in excess of 90% efficiency.

How does a condenser boiler work?

A condensing boiler uses condensing technology to make better use of the heat it generates. When a fuel such as gas or oil is burned, gasses are released via a flue. … In a combination boiler the hot water is most commonly heated through a secondary heat exchanger known as a plate to plate.

What are the advantages of a condensing boiler?

There are two main benefits to gain from using a condensing boiler: lower energy bills, and a reduced carbon footprint. As condensing boilers are so much more efficient than their conventional counterparts when turning fuel into usable heat, less fuel is required overall to heat both your water and your home.

Do you need a water tank with a condensing boiler?

Condensing boilers help the environment with an increased efficiency to up to 12% . … Space savings: a condensing combi boiler does not need a hot water tank and is available in a wide range of compact sizes, making it much suitable and convenient to fit in a kitchen cupboard than conventional boiler models.

Whats the difference between a combi boiler and a condensing boiler?

Unlike an immersion heater, a combi boiler heats your water on demand, instead of storing it in a tank. … A condensing boiler is any boiler which uses condensing technology to make better use of the heat they generate from burning fuels such as gas or oil – so a combi boiler can also be a condensing boiler.

What temperature should a condensing boiler be set at?

Your condensing boiler should be set to generate water at a flow temperature of at least 60C (hot water tanks should store water at this temperature). This is because this is the temperature that kills legionella bacteria.

Does a condensing boiler need a drain?

A condensing boiler will produce about 2 litres of condensate an hour at an average temperature of 30-40℃. This condensate needs to drain into your waste water outlet or to a drain via your condensate pipe.

Why does my boiler run out of hot water?

Water Heater Runs Out Of Hot Water Quickly: Possible Reasons Why. As mentioned above, several things can cause a home’s hot water supply to run out faster than it should. The three most common culprits are sediment build up, a faulty heating element and a broken dip tube.

How long should a condensing boiler last?

Generally speaking, you can expect modern boilers to last for around 15 years, or potentially even longer if you get a good quality model and service it regularly. Pay attention to the warranties offered with boilers, and to benefit from added peace of mind, consider getting an extended warranty if possible.

What are the disadvantages of a condensing boiler?

The Cons: Condensing Boilers are susceptible to freezing temperatures, when the pipe which leads from the boiler outside can freeze, stopping the boiler from working. This can be quickly fixed with warm water but can be inconvenient and could cause long term damage.

Article first time published on

When did condensing boilers become mandatory?

Since 2005, it has become mandatory to install condensing boilers if your old boiler needs replacing. Condensing boilers significantly reduce carbon emissions and you can save up to 1,200 kg of carbon a year by installing one in your home.

Are all new gas boilers condensing?

All modern domestic boilers including combi boilers, system and regular boilers now use condensing technology. All domestic boilers produce hot waste exhaust gases, which exit the boiler via the flue, however, all new boilers are fitted with a Flue Gas Heat Recovery System, making them condensing.

How can I tell if my boiler is condensing?

If you can see the steam coming from the flue through an external wall (or roof), and if you also have a white plastic pipe leading to a drain, this will certainly be from a condensing boiler.

Are all modern boilers condensing?

Luckily, there is a simple answer: All modern boilers, whether combi, system, or regular, are condensing boilers. You do not need to worry about whether or not your new boiler should be condensing or not, because non-condensing boilers are no longer allowed to be installed.

How much water does a condensing boiler produce?

An efficient condensing boiler will generate around 2 litres of condensate water an hour at a temperature of around 30-40°c. This needs to be safely disposed of, within the buildings waste water system.

Can boiler condensate go into rainwater?

It is possible to terminate a condensate pipe into a rain water down pipe that terminates into the foul waste system. As with all externally-run condensate pipes, it is recommended to keep the external run to minimum and the pipe diameter to 32mm when exiting the property.

Can boiler condensate go into septic tank?

Condensate from Condensing Boilers MUST NOT be drained into Foul Drains when a septic tank or sewage treatment plant is part of the foul drainage system. The condensate kills the bacteria in the tanks due to its high acidity and the sewage treatment stops working.

Why is the overflow pipe from boiler dripping?

Your boiler’s overflow pipe may leak water if: The boiler has built up too much pressure due to the expansion vessel failing or losing its charge. The pressure relief valve is not seated correctly, causing water to pass by it.

Do you need to bleed a boiler?

Bleeding Because Of Bubbles Whatever the reason, your boiler needs to be bled to ensure the radiator works efficiently and prevents ducts from oxidizing. You will also notice a change of electricity bill once the unit’s maintenance comes to completion.

Do you bleed a radiator when it is on or off?

Turn off your heating. You can’t bleed a radiator when the heating is on, as it may be too hot to touch. You could also get hot water spraying out of the radiator. Use your radiator key to turn the valve at the top of the radiator.

How long does it take to bleed a boiler?

The average radiator should take no more than 20 to 30 seconds to bleed in full. This can vary with the size of the radiator and the amount of air trapped inside. Simply carry on bleeding the radiator until the hissing noise has stopped and water begins to run out of the bleed valve.

How do you run a condensing boiler efficiently?

To achieve maximum efficiencies, all boilers should be run at their lowest possible load. They ramp up and down in unison to maintain the load. This means less wear and tear on the boilers and also reduces the often overlooked start-up losses as the pre-purge sequence runs.

Can I leave my boiler on continuously?

Can I leave my boiler on continuously? You can, but it will cost you more. Once your water reaches a certain temperature, the water heater will turn off. It will turn back on again when the water cools.

What pressure should boiler be at when off?

What pressure should my boiler be when the heating is off? Boiler pressure should generally be between 1 and 1.5 bars when central heating is turned off. The needle of the pressure gauge should remain above the lower limit set by your boiler manufacturer at all times.

How much does it cost to replace a boiler in a house?

Residential boilers can keep your home warm at a relatively low price, but homeowners are responsible for an upfront cost. The average cost to replace a residential boiler is $3,624 to $8,061, which includes installation.

What's the average price of a new boiler?

A new boiler costs £500 – £2,500, depending on the system. A new combi boiler costs £500 – £2,000, and a conventional boiler costs £400 – £1,500, which are the most affordable boiler types in the UK. You can expect to pay £1,300 – £2,500 for a condensing boiler, and £7,000 – £13,000 for a biomass boiler.

Can a boiler last 30 years?

Boilers can last up to 30 years, letting a whole generation grow up in a house with the same heating system. But it isn’t enough to simply know a boiler lasts longer. Why it last longer helps to understand how boilers work and why they have so many other advantages. Let’s take a closer look at boiler longevity.

What is a dip tube in a water heater?

A dip tube is a plastic rod that attaches to your water heater’s cold water inlet and extends down to the bottom of the tank. When cold water enters your water heater’s tank, it travels down the dip tube and is delivered directly to the bottom near the burners.

Why is my water not hot enough?

The hot water may be depleted if someone showers before you, or if you run a hot-water appliance before you shower. Check to make sure the water heater thermostat isn’t set too low. … If your water heater is old—10 years or older—it’s possible that you have a broken heating element, thermostat, or gas valve.

Why is my shower water getting cold so fast?

1. Sediment Buildup in Your Water Heater. This is the most likely reason your hot water is running out too quickly. … And if you don’t regularly maintain your water heater, this sediment can lower the available space for hot water, leading to your shower water going cold before you want it to.

What's the difference between condensing and non condensing boilers?

Condensing boilers are vented with fan powered plastic (PVC) pipes that can be terminated through a side wall. The combustion air for condensing burners is taken directly from outdoors, unlike non condensing systems that take air from the room.
