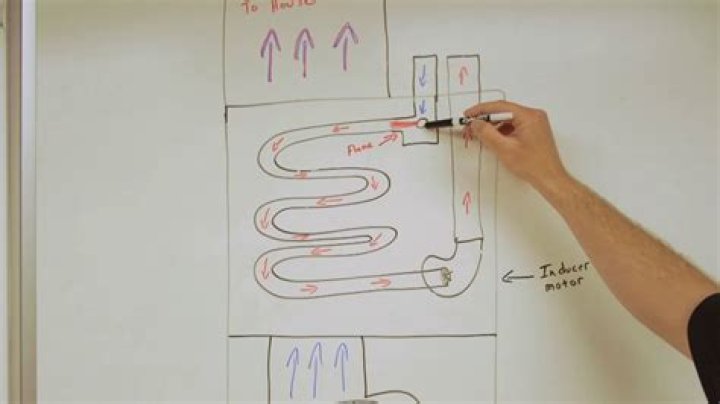

How Does a Draft Inducer Work? A draft inducer is a fan that is located inside of the furnace near the heat exchanger. When the furnace begins a heating cycle, the draft inducer turns on up 30 to 60 seconds before the burners are lit and continues to run throughout each heating cycle.

How does a inducer motor work?

The inducer motor insures there is constant flow of air outside through a vent so no toxic gasses enter a home. A Draft Inducer pulls toxic gasses from a furnace and pushes them out a vent pipe. An Inducer should start up before the furnace turns on to make sure the gasses are vented.

How long does a draft inducer motor last?

A: On average, you can expect a well-built inducer motor to last around 20 years.

When should the inducer motor shut off?

Because the inducer motor helps your furnace run safely, the furnace will usually shut off if the motor won’t turn on. However, a bad inducer motor isn’t the only reason a furnace would shut off. A blocked gas vent flue or faulty pressure switch can have the same effect.

How does induced draft furnace work?

A draft inducer is a fan that’s located inside of your furnace near the heat exchanger. … By turning on before your furnace ignites its burners, the draft inducer is able to clear out any combustion gases that might be lingering in the heat exchanger from the previous heating cycle.

How does an inducer motor on a furnace work?

The inducer motor turns on and draws combustion air into the furnace. This helps to make sure the gas is burning efficiently. Next, an ignitor will either glow or spark to ignite the gas that starts flowing. This gas ignites into flames while the hot air and obnoxious gases are drawn into the heat exchanger.

How do I know if my inducer motor is bad?

One of the first indications of a bad draft inducer motor is likely to be the sound it makes. A failing inducer motor may create a noise shortly after a heating cycle begins. This could be a tapping noise, or a humming or whirring sound.

What does an inducer motor cost?

A replacement draft inducer motor will cost between $500 and $700.

What does a draft inducer motor?

The draft inducer motor was introduced when the government mandated efficiency standards for furnaces. … The purpose of the inducer motor is to move air and gasses out of the furnace and up through the heating vents. This determines how much and how fast air will flow through the heat exchanger.

How much does it cost to replace inducer motor?

Your furnace’s draft inducer motor removes toxic gases like carbon monoxide from the heat exchanger. The average cost to repair or replace a draft inducer motor is $200–$1,500.

Article first time published on

What causes inducer motor failure?

Most inducer motors failures are simply attributed to the older age of the furnace. In most cases, the internal bearings wear out and since the unit is a sealed unit, there is no way to repair the original motor. Instead the unit is simply replaced with a new one.

What is an inducer assembly?

The inducer assembly is a small fan that pulls air through the furnace heat exchanger and sends it to the outside through a vent pipe. … In furnaces with an afue of 90% or more, they are usually made of plastic. The inducer establishes a draft through the furnace and is sometimes referred to as a draft inducer.

Will a cracked heat exchanger symptoms?

If you have a crack in the heat exchanger, you are likely to hear a rattling noise as your thermostat turns on the heat. Because the heat exchanger is made out of metal, as it is heated cracks will expand/contract, and can cause rattling, popping, and/or banging noises. Presence of Carbon Monoxide.

What is an air inducer?

The supply air inducer is attached to supply side of the ductwork and will introduce a small amount of conditioned air into the crawl space to help regulate the RH. It includes a backflow damper to keep bad air from entering the system.

What happens when furnace inducer motor goes out?

When an inducer goes bad, it will be hot to the touch after trying several times to start the furnace. If the motor remains cool, your problem is most likely in one of the peripherals attached to the motor or in the electrical parts that drive its operation.

How do you lubricate a furnace draft inducer blower?

Spray a thin film of silicone lubricant on the motor shaft where it enters the blower wheel bearings. Reinstall the service panel, then turn on the circuit breaker to power the furnace.

Why are draft inducer fans necessary in today's furnaces?

The temperature difference between the air entering the furnace and leaving the furnace. Why are draft inducer fans necessary in today’s furnaces? The flue gasses cannot make their way through the new heat exchangers on their own.

When should inducer motor run?

Simply put, an inducer fan should start up when your thermostat calls for heat. It will do this anywhere from 30 seconds to one minute. It then stays running for as long as your system is heating the house and shuts off when your system cycles off.

Why am I not getting power to my inducer motor?

If the draft inducer does not start then you probably either have a thermostat , thermostat wiring problem, electrical problem, control board problem or a bad draft inducer. … Tape the blower door safety switch shut (if equipped) and set your thermostat so it is calling for heat.

What does a inducer control board do?

As its name suggests, the control board is the central hub for circulating power throughout your furnace. This flat panel located inside your furnace takes the electricity coming from outside your furnace and sends it to the inducer motor, ignitor, gas valve, and other furnace components.

Is it OK to run furnace fan constantly?

Running your furnace fan all the time isn’t exactly a bad thing. In fact, there’s no need to worry about the fan wearing out or breaking down because it’s designed to run continuously, and there’s an array of benefits connected to this.

Why is my inducer motor noise?

A draft inducer (or vent blower) is the most common problem on a gas furnace or boiler to cause a noticeable noise. … The small motor mounted within the housing can begin to make noise when there is buildup on the wheel (such as sulfur or creosote) or when the motor is close to the end of its usable life.

What does pressure switch open with inducer on mean?

If the draft inducer is working properly, your pressure switch will close to complete the circuit (or “turn on”). If there is an issue with your draft inducer motor, your pressure switch will open (or “turn off”), shutting down your furnace down by preventing it from igniting.

How long do furnaces usually last?

THE AVERAGE FURNACE LIFESPAN A well-maintained furnace can last at least 15 to 20 years, but completing annual maintenance and being diligent with repairs can extend its life even longer.

How much does a furnace cost for a 1500 square foot house?

For example, a 700- to 1,500-square-foot home will require a BTU rating between 40,000 and 60,000, which will cost between $2,000 and $3,000. A furnace for a home ranging in size from 2,000 and 5,000 square feet will need between 125,000 and 150,000 BTUs and will cost in the neighborhood of $3,300 to $6,500.

How much does a blower wheel cost?

Belt$5 – $100Blower Wheel (Squirrel Cage)$50 – $275Pulley$50 – $250Housing$100 – $300Capacitor$150 – $450

How long does it take to replace an inducer motor?

The most common repair time range is 45 to 75 minutes.

How do I know if my furnace motor is bad?

1. Poor or Airflow from Air Vents.
2. No Airflow At All From Vents.
3. Skyrocketing Energy Bills.
4. Strange Noises When You Turn on the Heat.
5. Overheating Blower / Weird Smells.
