A Dual power supply is a regular direct current power supply. … Many electronic circuits require a source of DC power. A dual power supply is used to power the electronic as well as electrical equipment. The dual power supply provides positive as well as negative potential with the ground.

How does a dual polarity power supply work?

It converts the alternating current (AC) from our wall outlets into direct current (DC) at some specified voltage. A dual polarity power supply is capable of supplying +/-DC voltage.

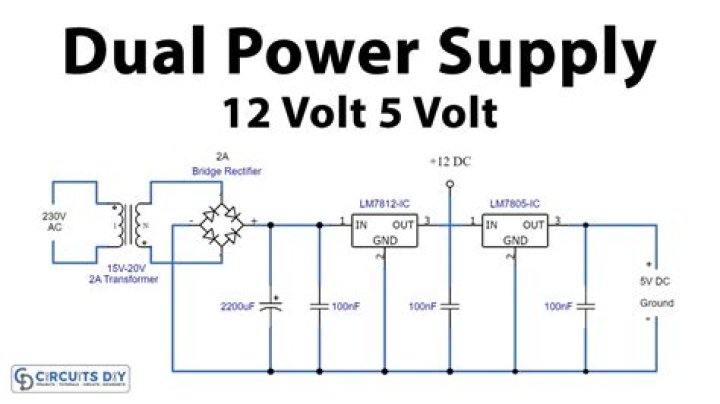

How do you make a dual power supply circuit?

1. Step-I: Converting 220v AC into 12v AC using Step Down Transformer.
2. INPUT: 220V ac, 50 Hz.
3. OUTPUT: Between outer terminal and middle terminal: 12V ac, 50 Hz.
4. Step – II: Converting 12v AC into 12v DC using Full Bridge Rectifier.
5. Here, full bridge rectifier is used. …
6. INPUT: 12V ac.

What is a dual power supply server?

This is common in servers and other high-end computers. … Each power supply is capable of powering the entire server and only one runs at a time. Each power cord will plug into a separate circuit, therefore keeping the system up and running if there is a power failure!

What does dual supply mean?

A Dual power supply is a regular direct current power supply. … Many electronic circuits require a source of DC power. A dual power supply is used to power the electronic as well as electrical equipment. The dual power supply provides positive as well as negative potential with the ground.

Why does server have two power supplies?

4 Answers. You have two power supplies for redundancy. Assuming they are hot-plug, if one fails you can replace it while the system is still running. You could also run to separate servers in your data center and connect each power supply to a separate circuit.

Why dual power supply is used in op amp?

Operational amplifiers have two power supply rails because they usually need to swing bipolar – output voltages that go either positive or negative in response to the normal range of input signals. … Without the dual supplies the output signal would clip at the ground potential.

Can a server run on one power supply?

Servers are designed to run on a single power supply unit just fine. The second power supply unit is only needed in case you want to have redundancy. In that case, if a power supply unit fails, the other will take over and the server will not go down.

What is the problem with having a dual power supply in a server connected to a single UPS?

If one power supply goes down, then your entire server goes down, because the one remaining power supply isn’t big enough to run the whole box.

How do I set up dual supply?

For a quick and simple dual power supply, use two resistors in series connected in parallel with two capacitors. Connect the two ends to the battery or power source and BAM! You have a dual power supply.

Article first time published on

What is a dual power supply and what is its application?

The name, dual power supply, can be a little misleading. While it does provide two separate voltages, one positive and one negative, the power supply itself is still a singular source. The difference here, for example, is you have access to both +12 volts and -12 volts simultaneously from a singular source.

How do you double the voltage on a power supply?

Two or more power supplies can be connected to supply higher voltages or current. The simplest method to create higher voltage is to connect the power supplies in series, set each supply to output the same voltage and each supply should have the same current limit.

What is the difference between single power supply and dual power supply?

The difference between the two is that a single supply op amp receives a single voltage while a dual supply op amp receives 2 voltages, a positive and negative voltage. The difference is pretty pronounce. … Therefore, any input signal fed into the op amp can only swing from the positive voltage supply to ground.

What is a dual opamp?

Dual Supply opamp has two supply rails with reference to GND to an opamp i.e +VCC and -VCC rails. Your applied voltage can swing between these two voltage levels. Hence, the output signal can swing only between these voltage(+VCC and -VCC) limits and they cannot exceed above these levels.

Can I use a dual supply op-amp with single supply?

As long as you do not violate any of the specifications it will work. In many cases that puts excessive constraints on your design. Most dual supply opamps have an input voltage range that does not include either supply rail.

What is dual redundant power supply?

What is a Redundant Power Supply? A redundant power supply is when a single piece of computer equipment operates using two or more physical power supplies. Each of the power supplies will have the capacity to run the device on its own, which will allow it to operate even if one goes down.

What is grid redundancy?

Grid redundancy refers to the performance of the chassis power subsystem in the intended AC configuration. … When you connect one power supply to the Line A feed and one power supply to the Line B feed, the system can tolerate the failure of one power supply or the complete loss of either AC feed.

Is it necessary to use UPS?

An uninterruptible power supply (UPS) is used to protect critical loads from utility-supplied power problems, including spikes, brownouts, fluctuations and power outages, all using a dedicated battery. … In fact, without a UPS, data stored on devices subject to sudden shutdowns can be corrupted or completely lost.

What does lost PSU redundancy mean?

Lost power supply redundancy. Check PSU cables.” means the power supply subsystem is no longer redundant. If the remaining power supply fails, the system will shut down.

How do I check if my power supply is redundant?

1. Start with both power supplies powered On. …
2. Turn Off power supply 1. …
3. Turn On power supply 1. …
4. Turn Off power supply 2. …
5. Turn On power supply 2. …
6. Optionally, repeat Steps 2 through 5, until each power supply has been tested four times.

How does a redundancy module work?

A redundancy module is used to decouple two power supplies and ensures the high availability and productivity of your system. … A redundant system ensures that the failure of one power supply unit does not result in system downtime.

Are server Psus more efficient?

Server Power Supply Efficiency Titanium power supplies are the most efficient option, offering 96% power efficiency. … This means that an 800-watt power supply providing 400 watts of power (50% capacity) will be less efficient than a 500-watt power supply providing that same 400 watts of output power (80% capacity).

What is server PSU?

A power supply is used to convert wall/line AC power to DC power, which can be distributed and used to power various components in a server, such as the motherboard and the hard drives. … The more efficient the power supply, the less heat that is generated.

How do you split DC voltage?

To divide voltage in half, all you must do is place any 2 resistors of equal value in series and then place a jumper wire in between the resistors. At this point where the jumper wire is placed, the voltage will be one-half the value of the voltage supplying the circuit. The 5V is now 2.5V. VCC is split in half.

What happens if you connect two power supplies together?

A common topology employed to increase output power is to connect the outputs of two or more supplies in parallel. In this configuration each power supply delivers the required load voltage while connecting the supplies in parallel increases the available load current and thus the available load power.

Can two power supplies be connected in series?

The answer is: Yes. Any MEAN WELL power supply can be connected in series . They isolated outputs, so that that they can be connected in series to give you a higher voltage. This is particularly useful if you have an unusual voltage that you need.

Under what circumstances does an op amp become saturated?

When the output voltage implied by the circuit would exceed the possible range, the op-amp is said to saturate, and it just outputs its maximum or minimum possible voltage instead. We often call the supply voltages the rails.

What is the most common op amp chip?

The most commonly used op-amp is IC741. The 741 op-amp is a voltage amplifier, it inverts the input voltage at the output, can be found almost everywhere in electronic circuits.
