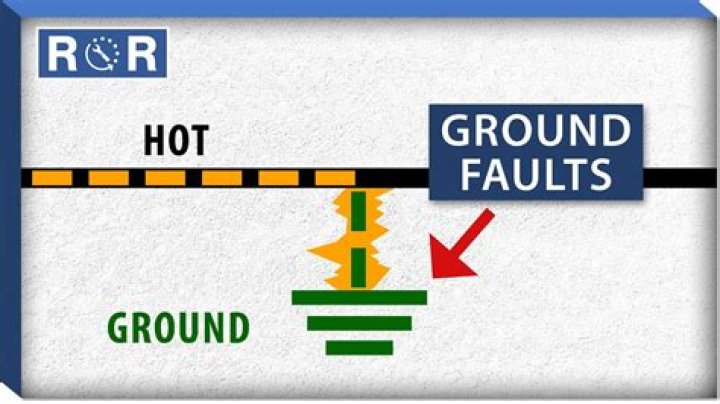

A ground-fault occurs when there is a break in the low-resistance grounding path from a tool or electrical system. The electrical current may then take an alternative path to the ground through the user, resulting in serious injuries or death.

What happens if there is a ground fault?

A ground fault is a type of fault in which the unintentional pathway of the straying electrical current flows directly to the earth (to the ground). … Like other types of short circuits, a ground fault causes the circuit breaker to trip due to the uncontrolled flow.

What is a ground fault in simple terms?

A ground fault is an inadvertent contact between an energized conductor and ground or equipment frame. The return path of the fault current is through the grounding system and any personnel or equipment that becomes part of that system. Ground faults are frequently the result of insulation breakdown.

How do I find a ground fault in my house?

To locate a ground fault, look for continuity to ground on each circuit. This new analog ohmmeter will show infinite ohms when the conductor is not exposed to an earth ground. If the insulation is compromised and/or the copper is directly connected to ground the ohmmeter will indicate 0 ohms.

Do GFCI prevent fires?

The GFCI is designed to protect people from severe or fatal electric shocks but because a GFCI detects ground faults, it can also prevent some electrical fires and reduce the severity of other fires by interrupting the flow of electric current.

How can I tell if I have bad wiring in my house?

1. Frequently tripped circuit breakers. …
2. Flickering or dimming lights. …
3. Buzzing or crackling sounds. …
4. Frayed wires. …
5. Aluminum or knob-and-tube wiring. …
6. Warm or vibrating spots on outlets or walls. …
7. Smoke coming from outlets or appliances. …
8. Burning smells or scorch marks on electrical fixtures.

How do you know if you have a ground fault?

Symptoms of An Electrical Ground Fault Strobing lines on your TV or desktop computer monitor. Humming or buzzing in your home stereo or TV audio system. Unexpected shocks when you touch metal appliances, trim, or pipes. … Your GFCI (ground fault circuit interrupter) outlets trip frequently.

Is a ground fault a short circuit?

Ground Fault. Short circuit and ground fault are both terms that refer to electrical shorts. When electricians use the term “short circuit,” they are generally referring to a situation where a hot wire touches a neutral wire.

How do you stop a GFCI from tripping on a refrigerator?

If you want to keep the fridge on a GFCI outlet, you can try replacing the breaker in the box with a GFCI breaker. Also, if you’re dealing with a dedicated circuit that just operates the refrigerator in the kitchen, you can simply remove the GFCI outlet and replace with a standard outlet.

How much does it cost to fix ground in car?

If you want to have a professional mechanic handle the replacement, the process is usually referred to as a battery cable or ground strap replacement. It’s likely going to cost you about $80-$100 for labor so you can quickly see the advantage of replacing the ground cable yourself.

Article first time published on

Can a bad ground cause transmission problems?

Even more, bad engine grounds can also cause damage. If too much current tries to find proper ground unsuccessfully, it will choose an easy path through transmission components, transmission cable, throttle cable, wheel bearings and narrow ground wires, causing severe damage to these and other components.

How do I know if my ground wire is grounded?

Touch one probe of the multimeter to the ground wire and touch one probe to the ground wire electrical post. Because your multimeter is now functioning an an ammeter, it will register any current that is flowing between the post and the wire. A correctly grounded wire will show zero voltage.

Can you still get shocked with GFCI?

Yes you can be electrocuted even with an operating GFCI. A GFCI will only trip if current goes from the hot and does not return on the neutral.

Will a GFCI trip before a breaker?

They’ll both trip When you go to reset the receptacle, it will be dead. You will need to go down to the basement to reset the GFCI breaker, and then, the GFCI outlet will have a chance of being reset.

Can you plug a GFCI plug into an extension cord?

GFCI Always Goes First: This is a big issues and a super easy thing to fix! Never plug a GFCI into your extension cord, always plug the GFCI in first directly to power outlet, then you can plug the extension cord into the GFCI (or multiple extension cords into it only if the GFCI has multiple receptors).

How do I find a ground fault downstream?

Troubleshoot steps: Select one of the outlet boxes with more than one cable. Identify which cable has the Hot and Neutral wire that connects back to breaker box. Disconnect the other cable(s) so downstream boxes are disconnected from the circuit. Turn breaker ON, and see if fault is still present.

Why do electricians cut wires?

Cutting electrical wires, stripping the insulation from their ends, and joining wires together are essential techniques when you’re doing electrical work. … Never work on active electrical wiring without turning off the electrical power first!

How do you trace a bad electrical wire?

1. Keep Track of Circuit Breaker Trips. …
2. Look and Listen for Flickering, Buzzing or Dimming Lights. …
3. Look Out for Frayed or Chewed Wiring. …
4. Search for Discoloration, Scorching and Smoke. …
5. Feel for Warm or Vibrating Wall Outlets. …
6. Smell for Burning and Odd Odors.

What causes nuisance tripping of GFCI?

There are too many appliances being protected by the GFCI. Sometimes tripping occurs when a GFCI circuit breaker is protecting multiple downstream receptacles. If several appliances are connected to the GFCI device, the cumulative effect of the appliance leakage currents may trip the GFCI.

Should a fridge be plugged into a GFCI?

A. That “protector outlet” you’re referring to is a GFCI, or “Ground Fault Circuit Interrupter” receptacle, and GFCI’s are required by building code in garages, kitchens, bathrooms, and on the exterior of new homes. … So freezers and refrigerators should never be plugged into GFCI’s.

Does a refrigerator need a GFCI?

Residential Kitchen In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There’s no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.

What happens if earth and neutral wires touch?

In Short if neutral wire touches a earth wire, An earth wire carrying load current is a risk of electric shock because a person touching this earth may present an alternative path for the load current and thus the risk of electric shock.

Can flickering lights be caused by a bad breaker?

See CIRCUIT BREAKER FAILURE RATES – a bad circuit breaker or electrical panel connection can cause flickering lights or loss of power.

Will a bad ground drain your battery?

A bad ground might not cause a battery to drain, but it will prevent it from properly recharging.

Does ground wire carry current?

Ground wire acts as defense against unstable electrical currents. Under normal circuit conditions, ground wire isn’t carrying any current. But when an electrical accident such as a short circuit occurs, the ground wire takes the unstable current away from your electrical system and sends it toward the ground.

Can I put a GFCI outlet anywhere?

You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit. … The electrical code also requires GFCIs in unfinished basements, garages, most outdoor receptacles and places where construction activity occurs.

Can you install a GFCI without a ground?

A GFCI without ground wire isn’t ideal, but it’s better than a 2-prong outlet. A GFCI outlet will work without a ground wire and it’s legal. If the outlet shorts out for any reason, it will still trip for safety, even without ground. …

Where do GFCI outlets go?

GFCI outlets should be installed in any potentially wet or damp areas such as kitchens, bathrooms, laundry rooms, outdoors, basements, garages and workshops. Damp areas can make you prone to dangerous electric shock but using a GFCI outlet can greatly reduce your risk of injury.
