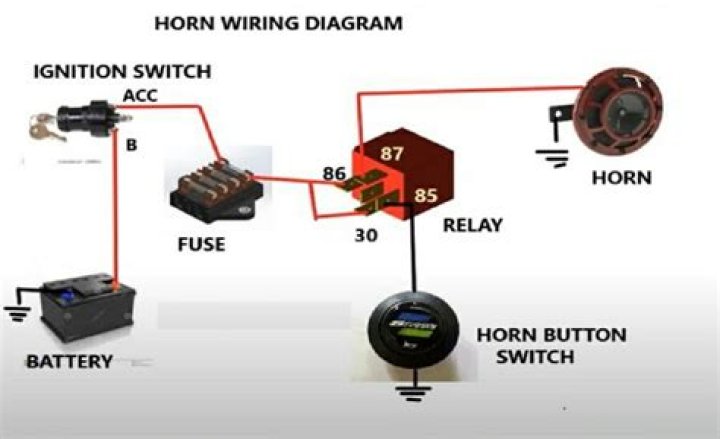

The horn relay switches a large current to the horns at a signal from the low-current horn button in the steering wheel. … A simple SPST relay will have a constant supply of 12 volts to it, a lead that runs through the harness to the horn, another lead that runs to the horn switch in the wheel, and a ground.

How do you test a horn relay?

Test the relay switch – Remove the relay and set your digital multimeter to the Ohms setting. Touch one meter lead to the switch relay socket and the other to the battery negative post. Have another person push the horn button to test the reading.

How do I know if my horn relay is bad?

How do we know if a horn relay is bad? – Quora. A clicking sound from underneath the hood. A shorted or faulty relay may cause the component to produce a clicking sound when the hood button is pressed. The clicking sound may be a sign that the relay has failed internally, and may also render the horn unusable.

Do you need a relay for a horn?

The OEM horn draws somewhere between 1.5-2 amps. I tried the same with the sickspeed horn and the voltage drop was so high that the horn wouldn’t sound. So, yes a relay is definitely needed. #85 is the relay ground terminal.

Where does the horn relay go?

Typically, the horn relay is found in the engine compartment junction or fuse box. Consult your owner’s manual for the exact location. Step 2: Disconnect the negative battery cable. Open up your vehicle’s hood and disconnect the negative battery cable with a wrench or ratchet.

Why would you use a relay?

Relays can reduce the need for high-amperage wiring and switches, which are expensive and take up space. Therefore, switching to relays in your electronic systems can reduce the size or weight of a casing, for instance, or allow manufacturers to fit more functionality into a space of the same size.

Why does a 12v horn need a relay?

The purpose of relays is to allow a lower power circuit to operate a higher power circuit. In the case of the horn circuit the wires and the sprung switch contacts in the steering column are low power while the horn itself uses a lot of power.

Can AutoZone test a relay?

After conducting a simple electrical test, you can indicate if you need to replace an ignition relay. AutoZone has the solution for replacing relays at an affordable price so you can be back on the road in no time.

What happens if I remove the horn relay?

If you remove the horn fuse and don’t replace it, that circuit will be “broken,” so the horn won’t work. If you removed the fuse for the radio, the radio wouldn’t work. If you removed a fuse or breaker for the ignition or fuel injection systems, the car wouldn’t start (assuming it’s a gasoline-powered vehicle).

Why does my horn fuse keep blowing?

If the fuse blows, you’ve got a bum horn. … If the horn makes a clicking sound, the problem could be a poor ground connection. Clean the horn’s ground connection and try powering the horn again. If the horn still clicks, you’ll have to replace it.

Article first time published on

What causes your car horn to stop working?

Car horns sit up front where they’re exposed to rain and road chemicals. … But an inoperative horn can also be caused by a bad horn switch in your steering wheel, a broken “clock spring” under the steering wheel, a bum horn relay, a broken wire or a corroded ground.

How does a 12v horn work?

Car horns work on the principle of a vibrating metal diaphragm. … The flexing of the diaphragm moves apart the electrical contacts, thus de-energising the solenoid. Once the disc springs back into its original shape, the electrical contacts close once again allowing current flow into the solenoid.

When should you use a relay on a car?

Relays are often used in circuits to reduce the current that flows through the primary control switch. A relatively low amperage switch, timer, or sensor can be used to turn a much higher capacity relay on and off. Another primary use for relays is when upgrading to halogen headlights on an older car.

What is the purpose of a relay in a car?

Relays are switches controlled by electrical power, like another switch, computer or control module. The purpose of an automotive relay is to automate this power to switch electrical circuits on and off at particular times.

Why do you need a relay in a circuit?

Relays control one electrical circuit by opening and closing contacts in another circuit. … Relays are generally used to switch smaller currents in a control circuit and do not usually control power consuming devices except for small motors and Solenoids that draw low amps.

How do I connect my ooga horn?

Find a good spot for the horn button on or under the dashboard or on the steering column. Attach the button using the hardware provided. One wire from the button should be attached to a bare metal ground using a sheet metal screw. The other lead should be routed forward into the engine compartment to the relay.

How do you install a car horn?

1. Step 1: Confirm the location of the horn assembly. The horn is generally located on the radiator support or behind the grille of the vehicle.
2. Step 2: Disconnect the battery. …
3. Step 3: Remove the electrical connector. …
4. Step 4: Remove the retaining fastener. …
5. Step 1: Mount the new horn. …
6. Step 2: Install the fasteners.

How do relays work?

A relay is an electromagnetic switch operated by a relatively small electric current that can turn on or off a much larger electric current. The heart of a relay is an electromagnet (a coil of wire that becomes a temporary magnet when electricity flows through it).

What is a 12v relay?

Most 12 volt relays operate the accessories in cars and other motor vehicles. When you apply a small amount of current to the relay coil, this closes contacts which in turn feed power to an accessory which would normally require a lot of current to operate.

Is relay and switch same?

You are correct that a relay is basically just a switch, but it’s a switch operated via remote control, so to speak. A regular switch controls electrical current by connecting or breaking the path of either the positive side of a circuit (most common) or the negative side of a circuit.

Does relay need power supply?

Most relays are available in different operating voltages like 5V, 6V, 12V, 24V, etc. If the required operating voltage is supplied to the relay, the relay is activated.

What is 86 on a relay?

Realizing that 85 and 86 are the coil pins, these pins will be transferring the current through the coil. 85 will be used to ground your relay, while 86 will be connected to the switchable power. 87 and 87a will be connected to your controlled accessories that you wish to turn on and off with your relay.

What is 87a on a relay used for?

87 and 87a are the two contacts to which 30 will connect. If the coil is not activated, 30 will always be connected to 87a. Think of this as the relay in the Normally Closed (OFF) position. When current is applied to the coil, 30 is then connected to pin 87.

What gauge is horn wire?

Use 14-gauge primary wire.

How do you unplug a horn relay?

1. Depress the area on the steering wheel that activates the horn. If the horn switch is stuck, pressing or tapping a few times might fix the problem.
2. Turn off the engine. …
3. Open the car hood and search for the horn. …
4. Use an adjustable wrench to disconnect the main wires that run to your battery.

Where is the car horn relay located?

Most cars have a horn relay, which feeds extra current into your horn. This is usually a cube with a diagram on the side, plugged into a slot in the under-hood fuse box.

Is it OK to drive without a fuse?

Without fuses, a large, overloaded electrical current could cause the wires to overheat, melt the insulation, and could result in fire. … Drivers will notice trouble with fuses when the vehicle’s windshield wipers, headlights, interior lights, seat warmers, or radio do not function.
