In principle, a hydraulic ram works by an external fluid being pumped into either side of a cylinder simultaneously, this creates a high pressure and low-pressure side within the cylinder depending on the load that it is trying to move.

What is hydraulic ram and how it works?

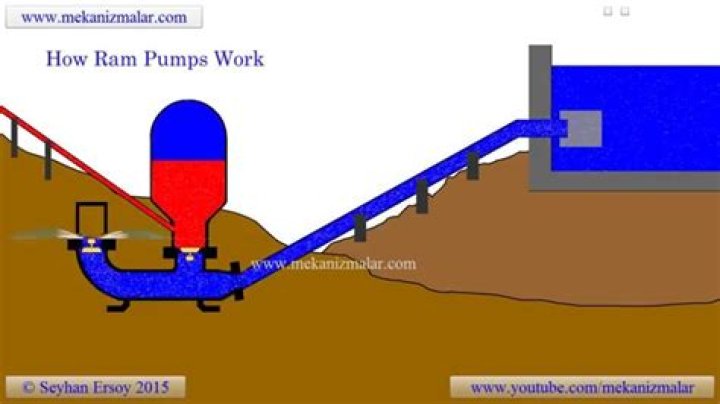

A hydraulic ram, or hydram, is a cyclic water pump powered by hydropower. … The device uses the water hammer effect to develop pressure that allows a portion of the input water that powers the pump to be lifted to a point higher than where the water originally started.

How does a hydraulic intensifier work?

A hydraulic intensifier consists of fixed ram through which the water, under a high pressure, flows to the hydraulic machine. … The water inside the inverted sliding cylinder gets compressed due to the downward movement of the sliding cylinder and its pressure thus increases.

How do hydraulic cylinders work?

The operation of hydraulic cylinder is based on Pascal’s principle. … According to Pascal’s principle, the pressure is equal to the force divided by the area on which it acts. A pressure used on a piston produces an equal increase in pressure on the second piston in the system.

Why are hydraulics so powerful?

A hydraulic system is an efficient transmitter of power for many reasons. Firstly, its simple levers and push buttons make it easy to start, stop, accelerate, and decelerate. … Also, because it is such a fluid system, without any cumbersome gears, pulleys, or levers, it easily copes with a huge weight range.

What is a ram type hydraulic cylinder?

Ram. Single-acting hydraulic cylinders with large rods and no pistons are called rams. Rams operate exactly as conventional single-acting cylinders do, but use large diameter rods to eliminate pistons and piston seals from their designs.

How much weight can hydraulic lift?

Some hydraulic cylinders can operate at 10,000 P.S.I. , so a cylinder just 1″ in diameter could lift about 7,000 pounds.

What are hydraulic rams made from?

Most commonly, the cylinder rod is made of steel or stainless steel and is then coated with Hard Chrome Plating (HCP).

How does a hydraulic displacement cylinder work?

Displacement Cylinders They function by displacing the cylinder rod which may or may not have bearings but does not have a piston seal. … When oil enters the cylinder the rod is displaced and when the oil is released from the cylinder the force of the load returns the rod into the cylinder.

How far will a hydraulic ram pump push water?

Answer: The ram pump can lift water to a max height of 180 feet. This produces a lot of pressure at the pump with an input head pressure of 25 feet.

Article first time published on

Will a ram pump work in a river?

Hydraulic ram pumps are well adapted to locations where other power sources are limited. They do not need any electricity, can work anytime the stream is flowing, and do not need wind or sunshine to operate.

Will a ram pump work in a lake?

The automatic hydraulic ram is a pumping device that has been widely used for nearly a century in rural areas, for lifting water to heights of over 100 meters. … It cannot be used to pump still water from a well, pond or lake, unless there is a Separate, flowing water source nearby.

What is the difference between a hydraulic accumulator and hydraulic intensifier?

An accumulator is used in hydraulic circuit to store the oil under pressure and deliver it to the system whenever there is a demand. … An intensifier is used for boosting the pressure in the hydraulic circuit.

What is the purpose of intensifiers?

Intensifiers are adverbs or adverbial phrases that strengthen the meaning of other expressions and show emphasis. Words that we commonly use as intensifiers include absolutely, completely, extremely, highly, rather, really, so, too, totally, utterly, very and at all: She was so upset.

How does a suspended hydraulic lift work?

A hydraulic lift is a device for moving objects using force created by pressure on a liquid inside a cylinder that moves a piston upward. Incompressible oil is pumped into the cylinder, which forces the piston upward. When a valve opens to release the oil, the piston lowers by gravitational force.

Will hydraulics become obsolete?

Hydraulics will still be reliable. Although the large, centralized hydraulic systems are a thing of the past, compact, self-contained circuits placed throughout an aircraft are powerful, fast and reliable.

Do hydraulics compress?

Hydraulic oils are somewhat compressible which can cause problems in hydraulic systems. Aspects like temperature changes and the presence of air bubbles in the hydraulic oil influence compressibility which can lead to uncontrolled decompression and other problems related to compressibility.

Do hydraulics use water?

A hydraulic fluid or hydraulic liquid is the medium by which power is transferred in hydraulic machinery. Common hydraulic fluids are based on mineral oil or water.

Can hydraulics pull?

A Hydraulic cylinder (also called a linear hydraulic motor) is a mechanical actuator that is used to give a linear force through a linear stroke. Hydraulic cylinders are able to give pushing and pulling forces of millions of metric tons, with only a simple hydraulic system.

How do you bleed air from a hydraulic dump trailer?

1. Open the air valve at the upper side of the hydraulic cylinder.
2. Check all hoses or pipes the sure they are connected properly.
3. Set up the hydraulic system and start it up.
4. Extend the piston rod slowly with no pressure built up. …
5. Shut down the system and close the air valve.

What are the disadvantages of hydraulic systems?

Hydraulic System Disadvantages If hydraulic fluid leaks in hot areas, it may catch fire. If hydraulic lines burst, they can cause serious injuries. Take care when handling hydraulic fluids, as too much exposure can lead to health issues. Hydraulic fluids are also corrosive, but some types are less so than others.

What size hydraulic ram do I need?

You can calculate the size of the cylinder(s) needed by dividing the total load by the amount of points. For example, a 100 ton load with one lift point would need at least a 100 ton cylinder while that same load with four lift points would require four 25 ton cylinders.

How does Pascal's law apply to hydraulic lifts?

Pascal’s law states that when there is an increase in pressure at any point in a confined fluid, there is an equal increase at every other point in the container. … Applied to a more complex system below, such as a hydraulic car lift, Pascal’s law allows forces to be multiplied.

What is the difference between a hydraulic cylinder and hydraulic ram?

Hydraulic cylinders can have a variety of stroke lengths, from fractions of an inch to many feet. … A ram cylinder is a type of hydraulic cylinder that acts as a ram. A hydraulic ram is a device in which the cross-sectional area of the piston rod is more than one-half of the cross-sectional area of the moving components.

How do hydraulic motors work?

More About the Hydraulic Motor A hydraulic pump converts mechanical power into fluid energy. From there, the fluid pushes against vanes or pistons attached to a crankshaft. This converts the fluid energy back into a smooth force to move an external load.

What do you use hydraulic cylinders for?

Hydraulic cylinders are used for creating mechanical force in a linear motion. … They can push, pull and lift loads of any description, and the mobile machinery industry relies nearly exclusively on hydraulic cylinders for linear motion. Hydraulic cylinders are also used prolifically in the industrial machinery industry.

How do double acting hydraulic cylinders work?

A double acting cylinder uses two lines and gives you the full power of your hydraulic system in both directions. If you need to press and lift with the same arm or another device, a double acting cylinder is ideal. This versatile option gives you power in two directions for a multi-use piece of equipment.

What is a displacement RAM?

A displacement ram is a special form of single acting ram, and can be of the ‘out stroking’ style only. The diagram shows a displacement ram.

What steel is used in hydraulic ram?

Most hydraulic cylinders are manufactured from a combination of 1018/1020 cold rolled steel for the “square” components such as flanges, heads and caps. Piston rods mostly likely adhere to 1045 alloy, while the typical piston uses cast or ductile iron.

What type of steel are hydraulic rams made of?

E355 + SR steel is the most common and most widely used tube material for the production of hydraulic cylinders.

Do you need running water for a ram pump to work?

To use a ram pump, you must have a source of water situated above the pump. … Once the water reaches its maximum speed, this valve slams shut. As it slams shut, the flowing water develops a great deal of pressure in the pump because of its inertia. The pressure forces open a second valve.
