A mousetrap car works on the principle of a lever. One end of the lever is connected to a spring. When a force is used to pull up the other end of the lever up, the spring tightens, storing energy. When the lever is released, the stored energy in the spring is transferred back to the lever, and the end snaps back.

How does a mousetrap car operate?

A basic mousetrap car is powered by attaching a string to the “snap” lever on the trap, looping the other end to a small hook on the axle, winding the string around the axle of the car pulling back on the lever and arming it.

How do mousetrap cars reduce friction?

Try to have a minimum gap of 1/8 inch between the frame and any spacers (or wheels) in order to decrease any rubbing friction. Use thrust washers and graphite powder between spacers (or wheels) and the frame to help reduce the rubbing friction.

What makes the mousetrap car move?

The basics The mousetrap storespotential energyin the form of the spring. That potential energy is converted into kinetic energy in the form of the arm rotating forward. The arm pulls on the wound-up string, which turns the drive wheel dowel, which is connected to the wheels, which makes the car drive forward.

Why does a mousetrap car stop?

The lock-nut braking system uses a wing-nut that travels along a threaded axle. As the threaded axle turns a wing nut travels along the threaded axle until it lock tight against the frame of the vehicle, or the axle, causing the vehicle to come to an instant stop.

What do you need for a mousetrap car?

1. Wooden snap-back mousetrap.
2. Duct tape.
3. 4 eye hooks.
4. Wooden dowel that fits inside the eye hooks.
5. Heavy cardboard.
6. Large and small rubber bands.
7. Foam board (usually found at a craft store)
8. String.

How does mousetrap placement affect the performance of the car?

For optimal performance the mouse trap should be positioned on the chassis so that the tip of the lever arm falls directly above the drive axle when the mouse trap is in the fully wound position (as pictured bellow). If the mouse trap is not aligned properly with the drive axle energy will be wasted off the start.

How does a mousetrap car adapt to distance?

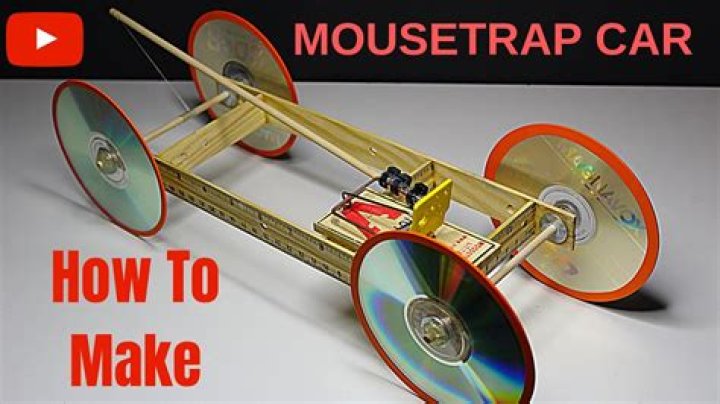

To adapt your mousetrap car for distance, use large, light wheels for less friction and greater inertia. For example, old CDs make great wheels to increase distance. If your car is a rear-wheel drive car, set the wheels on a narrow rear axle so the wheels turn more and travel further.

What characteristics do mousetrap cars that are designed to accelerate quickly have in common?

• high torque gearing.
• shorter length lever arm.
• smaller diameter drive wheels.
• wheels with good traction.
• reduced friction bearings.
• light weight components.

Where does friction occur in a mousetrap car?

The two places where friction takes place: between the wheels and the axles, the axles and the body, and the wheels and the ground (surface my mousetrap car ran on). I made the back wheels very tight because I planned on only having the axle be able to move there instead of the wheels.

Article first time published on

What will make a mousetrap car go faster?

1. Thicken the axle: Wrapping some tape radially around the axle or adding a spool. It may be surprising as to how much faster this makes the vehicle. …
2. Use smaller wheels. They will require less force to complete a rotation.
3. Make the vehicle lighter.

What is a gravity vehicle?

A gravity vehicle is model car that is powered solely by gravitational potential energy. Many science and engineering competitions, such as Science Olympiad, host gravity vehicle competitions to help teach basic physic concepts to students.

How do you measure the distance of a mousetrap car?

combined formulas: the pulling distance (distance) is equal to the length of string (String Length) pulled from the drive axle times the diameter of the drive wheels (d drive wheel) divided by the diameter of the drive axle (d drive axle).

Should a mousetrap car be heavy or light?

A heavy mousetrap vehicle will required more pulling force than a lighter mousetrap vehicle in order to achieve an equal acceleration. Lighter mousetrap vehicles will require less energy at the start and can use longer lever arms for more pulling distance.

What happens if the mousetrap is too close from the drive axle?

7. What happens if the mousetrap is mounted too close to the drive axle? The energy goes too quickly and you lose pulling force.

How does weight affect a mousetrap car?

Mousetrap Vehicles: Weight Distribution Weight distribution can have a large effect on a vehicles performance, if the weight of a vehicle is concentrated to far away from the drive wheels there may be a greater tendency for slippage at the start line.

How long should a mousetrap car be?

The ideal size for an ultra big wheel on a long distance mousetrap racer seams to be somewhere between 10 and 15 inches. And the ideal size for a drive wheel on a speed-trap racer seams to be between 2 and 3 inches but no more than 4 inches.

How is energy conserved in a mousetrap car?

In a perfect universe a mousetrap vehicle would roll forever once the potential energy is changed into kinetic energy. … Energy is not destroyed by this process but it is being converted into heat and sound.

How fast is the fastest mousetrap car?

Description: The Speed-Trap Racer is the fastest mousetrap powered racer anywhere and was designed after Doc Fizzix’s own record-setting mousetrap racer that traveled 5 meters in 1.2 seconds.

How does the length of the lever arm affect a mousetrap car?

Making the length of the mouse trap’s lever arm longer will decrease the pulling force but increase the amount of string that can be pulling from the drive axle. Shortening the length of the lever arm increases the pulling force but decrease the amount of string that can be pulled from the drive axle.

How does static friction affect a mousetrap car?

Mousetrap cars start with a limited supply of energy. This energy is used to overcome friction and propel the vehicle. The less friction acting against a moving mousetrap car, the less energy that is consumed to friction and the further that the vehicle will travel.

How will torque be produced in the mousetrap car?

As torque relates to a mousetrap-powered vehicle, a torque is applied to the wheels by pulling the wound string from the drive axle. The mouse trap’s lever arm applies a force to the drive axle that causes the drive axle to pivot or rotate thereby causing the vehicle to move.

Why is it better to have large wheels for the drive axle?

Larger drive wheels will have a greater travel distance per each turn compared to smaller drive wheel. … The smaller the diameter of the drive axle in comparison to the diameter of the drive wheel the more force that will be required to accelerate the vehicle but the greater the distance of travel per rotation.

What kind of string do you use for a mousetrap car?

The string has to be strong enough to handle the pulling force but flexible and thin enough to wind tightly around the drive axle. We recommend using a Kevlar based fishing line because its high strength. You should stay away from nylon fishing line and dental floss, these do not work well with mousetrap racers.

What is write it do it Science Olympiad?

Welcome to Write It Do It! In this event, one participant will write a description of an object and how to build it. The other participant will attempt to construct the object from this description.

What is an axle hook on a mousetrap car?

An important part of a mousetrap vehicles propulsion system is the axle hook. … If the string does not properly release from the drive axle the string will rewind around the drive axle and cause the mousetrap car to come to an instant stop.
