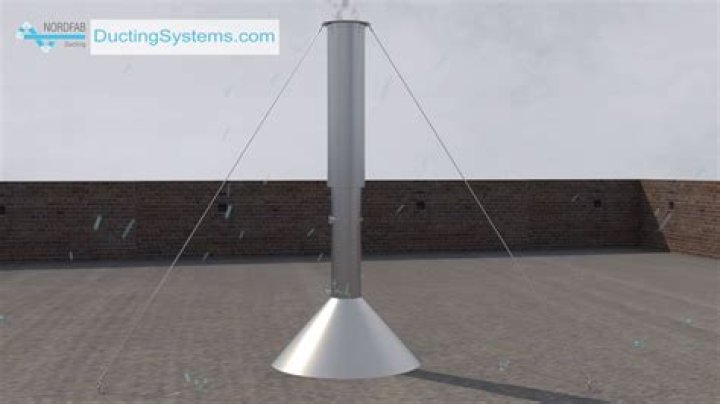

No-Loss Stackheads eliminate the back pressure that causes fan resistance while keeping rain out of the fan. This design allows the air to exhaust while keeping rain water outside of the inner duct. The rain water falls into the larger duct, drains down the side of the no-loss stack and discharges at the bottom.

What is a duct Main?

The main supply duct, known as the trunk, carries a high volume of air and is usually comprised of rectangular-shaped sheet metal ducts. Similarly, the return ducts that convey an equal volume of air back to the central unit are also usually rectangular sheet metal.

What is a home run duct system?

A home run system has small ducts that run to the supply or exhaust grilles from a divided mixing box attached to the ventilation unit. … Zehnder provides high-efficiency ventilation units with a home-run duct system to provide high indoor air quality to the whole house.

What is a trunk duct?

The trunk line is a line of ductwork that serves as the central distribution source for your ductwork system. It is attached directly to the plenum and runs through the entire length of your house.

What is the duct?

Ducts are conduits or passages used in heating, ventilation, and air conditioning (HVAC) to deliver and remove air. The needed airflows include, for example, supply air, return air, and exhaust air. Ducts commonly also deliver ventilation air as part of the supply air.

What is HVAC used for?

HVAC refers to the different systems used for moving air between indoor and outdoor areas, along with heating and cooling both residential and commercial buildings. They are the systems that keep you warm and cozy in the winter and feeling cool and fresh in the summer.

What is duct system?

What is a duct system? The ventilation system in a building consists of air moving devices such as fans and blowers and a network of ducts to exhaust the contaminated indoor air and to bring in air from the outside of the building. Ducts are channels, tubes, or pipes that carry moving air.

What is the difference between a plenum and a duct?

A plenum is an air distribution box designed for forced-air systems on residential homes and commercial businesses. It is part of the ductwork, but far different than an air duct as these important boxes handle air as it enters the ducts and helps to recirculate it within a system.

What is a trunk HVAC?

So, it comes as no surprise that the trunk line of a heating system is the large duct leading out of the furnace that delivers the massive amounts of air it takes to heat or cool a house. … As trunk lines move further away from the furnace, they often taper in size for greater efficiency.

What is supply plenum?

The supply plenum is a box that is connected to your HVAC system’s supply outlet. Your AC system’s blower sends cool or warm air into the supply plenum, which is then distributed throughout your home through your ductwork.
