In a nutshell, a propane air mixer is a mechanical component that adds air to propane gas just prior to combustion (burning). This results in a cleaner and hotter flame, which reduces the likelihood of a black soot deposit being left behind.

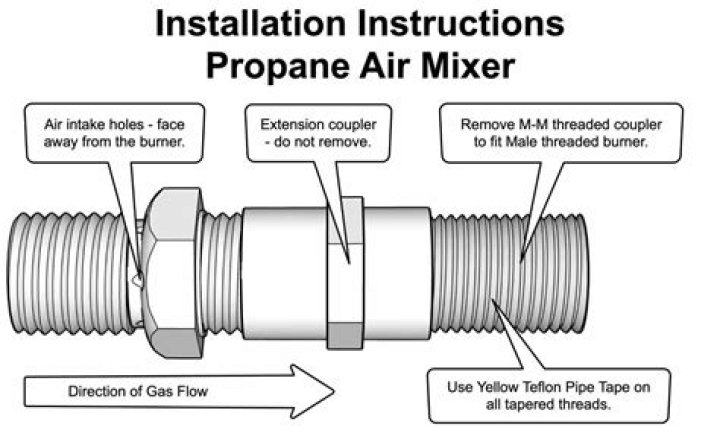

Where do you put a propane air mixer?

Because of this, an Air Mixer is installed in the inlet of the burner element to lean out the gas, and minimize propane soot. The Air Mixer should be installed directly below the fire ring pan with ample ventilation in the fire pit base. Make sure the Air Mixer is installed to allow air to flow properly.

Do propane fire pits need vents?

For propane fire pits, ventilation is crucial. Without it, the propane gas, which is heavier than air, can sink to the bottom of the cabinet and become trapped. If a spark hits the stored gas or the heat inside the pit becomes too high, the gas could catch fire and explode.

How does a propane fire pit work?

One or several burners sprout out of the bowl from below. These are attached to the tank underneath, supplying them with combustible gas. … The pit may come with an ignition switch which, once the gas flow has been turned on, ignites the burners and gives the appearance of a real coal or wood fire.

Why does propane need an air mixer?

An air mixer is necessary because propane needs to mix with air in order to create a clean, efficient fuel. The burner pan is necessary to ensure the proper amount of spacing for your air mixer to gather air in order to mix with the propane, allowing proper burning.

Does a propane fire pit give off heat?

Compared to larger built-in fire pits, I don’t think the average propane fire pit table gives off as much heat. Don’t get me wrong, they do provide warmth. However, on a cold evening, you may want to bring out a couple of wool blankets too.

How do propane vaporizers work?

The propane vaporizer has a chamber that hot water is pumped through to heat the liquid propane, causing it to boil and vaporize faster for the requirements of the engine. In short, this type of engine fuel vaporizer becomes part of the water circulation system and indirectly vaporizes the liquid propane for use.

Are propane fire pits safe during fire ban?

Not only do these portable propane fire pits make starting a campfire easy, they are also a lot safer than traditional wood fires. During fire bans, it’s often OK to use propane-based fires because they have a means of turning off the flame.

Can you roast marshmallows on a propane fire pit?

Yes, you can roast marshmallows over a propane fire pit. It’s no secret, propane, or LPG (liquefied petroleum gas), is a popular cooking fuel commonly used in barbeque grills.

Can you use copper pipe for a propane burner?

Copper tubing should only be used for propane (LPG) gas, and NOT natural gas. FLARE or solder fittings only, NO compression (ferrule) fittings.

Article first time published on

What pipe can be used for propane?

Black Pipe Black pipes are strong and durable. They are also known as black steel pipes, black iron pipes or black malleable pipes. Used to transport natural and propane gas from the street or a tank to the home.

Why is my propane fire pit popping?

This typically happens when tempered fire glass is damp or wet and the burner is turned on. The heating of the moisture causes an expansion as it turns to a gas which may cause some of the cracked (but not completely broken) pieces of tempered glass to separate into pieces.

Does an outdoor propane fireplace need to be vented?

In fact, Massachusetts and California, as well as Canada and other countries, have outlawed gas and propane ventless fireplaces.

Why do fire pits have holes in the bottom?

The simple answer – All fire pits should have holes to permit airflow to the flames. Without oxygen flowing to the fire, it won’t burn much at all. So, for a lovely, bright, and safe flame, holes clear of debris are necessary.

Does propane mix with air?

If the mixture is 2% propane and 98% air, there will not be combustion. If the mixture 10% propane and 90% air, combustion will not occur. Any percentage of propane in a propane/air mixture between 2.15% and 9.6% will be sufficient for propane to burn.

How do you fix a yellow flame on a gas fireplace?

Make Sure the Damper is Open By opening the damper to the fireplace, you are allowing proper ventilation. This will control the color of the flame. To adjust it so that the flames have an orange or yellow tip to them, lower the air input. You can do this by changing the damper or by closing the air shutter.

At what temp does propane vaporize?

Water boils at 100°C or 212°F, becoming a gas (steam). In contrast, LPG (propane) gas boiling point temperature is -42°C or -44°F, becoming gas vapour.

What temperature does liquid propane vaporizer?

Chemical FormulaC3H8Vaporization Temperature–44°FSpecific Gravity – Vapor (Air=1)1.53Specific Gravity – Liquid (Water=1)0.51Vaporization Rate (Liquid to Vapor)272:1

Can you flood a propane engine?

Also, you cannot “flood” a propane engine. When a gasoline engine “floods,” raw fuel enters the cylinders, washing past the rings and into the oil, also wetting the plugs.

Is 50000 Btu hot?

50,000 BTUs provide more heat than many similar gas fire pit tables with lower rated burners. The lava rocks act as insulation and can help maintain the heat at lower settings, for more efficient gas consumption. You could add fire glass for extra ambiance, which also helps reflect the heat.

How long does a 20lb propane tank last on a fire pit?

For the Fire Pit, a 20# propane tank will last approximately 4 to 4 ½ hours at a continuous burn at the maximum output. The tank will last approximately 8-9 hours at a moderate gas output.

How do I get more heat from my propane fire pit?

Originally Answered: How do you get more heat from your propane fire pit? One way would be to give it more air – give it a forced air stream. Getting more air in there will allow you to burn the fuel at a higher rate, and you’ll get more heat.

What is Helios burner technology?

The new Jetboil Helios backpacking stove has set a lofty standard for the outdoor industry: fast, efficient cooking using standard compressed-gas fuel canisters. … As a result, the stove burns the fuel more efficiently and more completely.

Do propane fire pits smell?

No, propane fire pits do not smell bad. However, If you are smelling propane, something’s wrong. If you are smelling gas, make sure to shut off your gas fire pit and turn off the propane at the source.

Does a propane fire pit keep mosquitoes away?

As mentioned above, using propane in your fire pit will not keep the mosquitoes away. Due to the carbon dioxide that they put out, mosquitoes are more attracted to propane fire pits. However, you can still use a propane fire pit, but you would need extra effort to keep the annoying mosquitoes away.

Are propane fire pits allowed in BC 2021?

B.C. PROVINCE-WIDE FIRE PROHIBITION: All open burning activities, including the use of campfires and fireworks, are now prohibited throughout B.C. until further notice. … This prohibition does not apply to cooking stoves that use gas, propane or briquettes.

Is a propane fire pit considered an open flame?

A propane fire pit is considered an open fire. In some cases, propane fire pits fall under the category of recreational burning. This activity may be legal when burning other materials in a fire pit.

Can you have a propane fire camping?

Wood and charcoal fires (including wood-burning stoves) are prohibited at all elevations. Gas, propane, alcohol (with and without a shutoff valve) and tablet/cube stoves are permitted. Wood and charcoal fires (including wood-burning stoves) are prohibited in all picnic areas.

What is a venturi burner?

This type of burner is called a Venturi Burner. … The gas flow from the nozzle pulls the air through a pipe by the sheer velocity of the movement. The air is not accelerated by an electrical fan or something, it is pushed into the pipe by atmospheric pressure.

Can refrigeration tubing be used for propane?

In 1999, the International Association of Plumbing & Mechanical Officials (IAPMO) designated that copper tubing and fittings are allowable for gas-distribution systems, including propane.

How far can you run a propane gas line?

500-gallon propane tanks The minimum distance from any source of ignition is 10 feet. The minimum distance from a property line is 10 feet.
