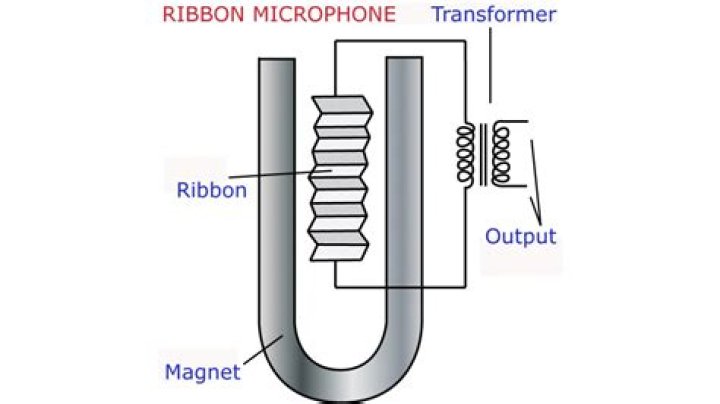

In ribbon microphones, a light metal ribbon (usually corrugated) is suspended between the poles of a magnet. As the ribbon vibrates, a voltage is induced at right angles to both the ribbon velocity and magnetic field direction and is picked off by contacts at the ends of the ribbon.

Do people still use ribbon microphones?

Today, countless engineers, producers, and artists rely on ribbon mics for their electric guitar sound — in the studio and onstage.

Is a ribbon mic a condenser?

The main difference between ribbon and condenser mics is that ribbon mics convert sound via electromagnetic induction, and condensers do so via electrostatic principles. Ribbon mics have conductive ribbon-like diaphragms and simple circuitry, while condensers have active capsules and complex circuitry.

Does a ribbon mic need power?

The ribbon elements in some vintage ribbon microphones can be harmed or even destroyed by the presence of phantom power. For this reason, it is commonly recommended that phantom power be turned off when using ribbon microphones. … They require phantom power to operate and obviously will not be damaged by phantom power.

What can you not do with a ribbon mic?

1. Don’t drop microphones. With the exception of the SM57, which was built to sustain abuse, this rule applies to ANY microphone, including condensers. …
2. When not in use, keep the ribbon mic covered. …
3. Avoid direct blasts of air into the ribbon element. …
4. Do “The Hand Test”. …
5. Be careful with phantom power.

How much gain do ribbon mics need?

How much gain do ribbon microphones need? Ribbon microphones need at least 65dB of gain to work. Unlike standard dynamic microphones, ribbon mics require a more significant amount of gain to operate. This is because they are low-output devices.

Are ribbon mics good for vocals?

Ribbon microphones usually give you the most accurate sound reproduction when compared with dynamic and condenser mics, but it comes at a cost… They are regarding for their accuracy and warmth, and work great for vocals, guitars, drums, horns, and more. …

Are ribbon mics good for bass?

The N22, a compact near-field ribbon, is the perfect mic for electric bass when recording bass up close because of its balanced sound from only two inches (5 cm) away. It captures a perfect image of both the low-end and the top-end of the bass, helping it fit right into the mix.

Are ribbon mics sensitive?

Like their moving-coil dynamic counterparts, ribbon mics tend to lose sensitivity in the upper end. However, the ribbon is still sensitive to these high frequencies. The result is a natural-sounding roll-off of high-end rather than a sharp cut-off.

What is a passive ribbon mic?

Passive ribbon mics have a low output compared to condenser mics and require a preamp with more gain than a typical preamp to allow you to record quiet sources without running into noise problems. … A high-gain and high-impedance preamp let a passive ribbon mic operate at its peak performance level.

Article first time published on

How are ribbon mics powered?

The preamp circuitry feeds the current via two signal wires of a microphone cable. On the other side, these signal wires are connected to the secondary winding of a ribbon mic output transformer. Transformers do not pass the direct current.

Can you send phantom power to a ribbon mic?

Yes. Phantom power (+48V) has the potential to damage ribbon mics. Passive ribbon mics may be damaged by hot patching or electrical outages while phantom power is engaged or if +48V is sent through a miswired or impaired cable. Active ribbon mics, however, require and will not be damaged by+48V.

What are PZM microphones used for?

The PZM®-30D and the PZM®-6D are Pressure Zone Microphones®. Both are designed for professional recording, sound reinforcement and broadcasting. They have many applications, from miking full orchestras or individual musical instruments to security or teleconferencing.

Is a condenser mic better for vocals?

Condenser microphones are best used to capture vocals and high frequencies. … While condenser mics are great for capturing acoustic guitars, drum overheads, or vocals, they don’t often work well for louder sounds such as guitar or bass amplifiers. For purposes like these, dynamic microphones can be a better option.

What is the impedance of a ribbon type microphone?

A microphone’s impedance changes at different frequencies. In Figure A, you can see that the impedance is consistently around 250 ohms until about 500 Hz, where the impedance starts drastically moving up to almost 2000 ohms. AEA’s passive big ribbon mics have a nominal impedance of 270 ohms.

What is a dynamic ribbon microphone?

A dynamic ribbon mic is a transducer that converts sound waves into mic signals via electromagnetic induction. It gets its name from its conductive ribbon-like diaphragm that vibrates within a magnetic field, inducing an AC voltage, which is then outputted as the mic signal.

What is the primary reason to use a condenser mic?

Condenser microphones are used for quieter, studio, situations where details, fast transients, and accuracy are more important, like for recording vocals, acoustic guitars, drum overheads, and brass instruments. Because of their lightweight membrane, condenser mics are more sensitive to sound.

How much does a ribbon microphone cost?

Ribbon mics are DAMN expensive. Most are $1000 and up.

What type of microphone is best for vocals?

In my experience, and most musicians and sound engineers’ experience, the best microphone type for live vocals is a cardioid dynamic microphone. It’s preferred if this microphone also has a boost in the presence range of its frequency response as well as a low and high-end roll-off.

Do ribbon mics need a preamp?

Preamplifier Input Impedance A ribbon microphone needs to be paired with a preamplifier that has high enough input impedance that it won’t load down the microphone. … The output of the mic will also be reduced, requiring more preamp gain, which in turn adds more noise to the recording.

Who invented the ribbon microphone?

The ribbon microphone was invented by Dr. Walter Schottky who described it in German Patent 434855C, issued December 21, 1924 to Siemens & Halske (S&H) in Berlin. An earlier “Electro-Dynamic Loudspeaker” Patent which Schottky had written with Dr.

What are the three types of microphones?

Each of the three primary types of microphones—dynamic microphones, condenser microphones, and ribbon microphones—has a different method for converting sound into electrical signals. All three have the same core construction, though.

What is a crystal microphone?

Definitions of crystal microphone. a microphone in which sound waves vibrate a piezoelectric crystal that generates a varying voltage. type of: microphone, mike. device for converting sound waves into electrical energy.

Why my mic is not working?

If your headset has a Mute button, make sure it isn’t active. Make sure that your microphone or headset is connected correctly to your computer. Make sure that your microphone or headset is the system default recording device. … Select Start > Settings > System > Sound.

Can dropping a mic break it?

Dropping a ribbon microphone, which you aren’t likely to have in most live settings anyway, is very likely to break the microphone completely. In short, if your microphone still works, you got lucky, and keep being careful with your equipment.

How do I fix my mic on PS4?

Unplug your headset from your PS4 controller, then disconnect the mic boom by pulling it straight out of the headset and plug the mic boom back in. Then re-plug your headset into your PS4 controller again. 2) Try your PS4 headset with mic in another device to see if it works normally.

Are ribbon mics active?

Ribbon microphones are traditionally passive and have been for decades since their inception in the 1930’s. They required no phantom power and their simple design consisted of a thin aluminum ribbon, two magnets and a transformer. That’s it.

Does Royer r10 need phantom power?

Royer Labs R-10 Overview Handbuilt in California, it features a high maximum SPL of 135 dB at 50 Hz and 160 dB at 1 kHz, and a wide, unhyped frequency response of 30 Hz to 15 kHz. The R-10 utilizes a standard XLR 3-pin output and does not require phantom power.
