A scupper is an opening in the side walls of a vessel or an open-air structure, which allows water to drain instead of pooling within the bulwark or gunwales of a vessel, or within the curbing or walls of a building.

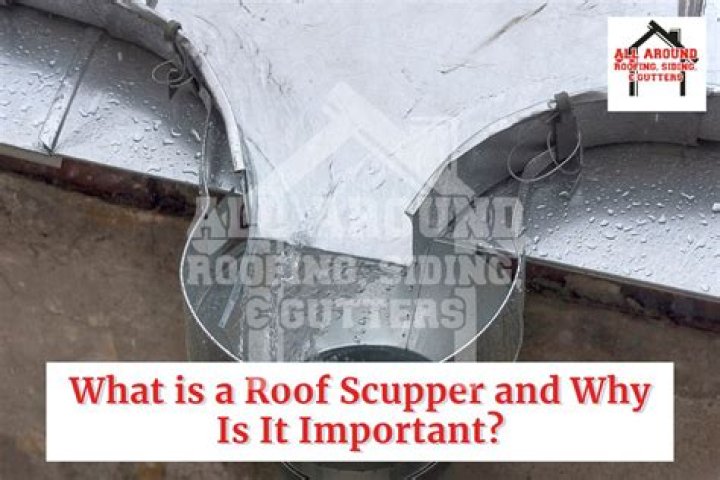

How does a roof scupper work?

Scuppers install into perimeter curbs and parapet walls on your roof and carry water from the roof, through a wall and then down the side of the building. They have a metal box surrounding the drain tube that serves as flashing. … They’re ideal for flat roofs and parapets, as well as decks and terraces.

Where do you find scuppers?

Scuppers are installed at the perimeter of the roof area and can be located at openings in parapet walls and/or openings in the perimeter metal. Scuppers can be used as primary or secondary (overflow) drainage. Proper flashing details are required at scuppers to prevent moisture infiltration into the roof system.

How do scuppers reduce water damage?

A ball or flapper design stops the water from re-depositing. Scuppers function as an effective water transit system providing an opening where water flows into a lower opening, effectively drawn to gutters or downspouts where it is deposited a safe distance from the residence.

Should you plug scupper holes?

If you’re kayaking with a heavy load, you should plug in your scupper plugs before paddling. The extra weight will submerge your kayak further down, and water will rise from the holes. The scupper plugs will protect you from capsizing. In the summer, covering the scupper holes might not be a priority.

Is a scupper a drain?

Roof scuppers are not the same as roof drains. Roof drains channel water through the deck of the roof into a piping system that carries water away, while a scupper allows water to drain through an opening in the side of the roof edge.

Why do you need scupper plugs?

Purpose Of Scupper Plugs Scupper holes, found in sit-on-top kayaks, are designed as a safety feature to drain water out of the kayak, from top to bottom, which keeps you from sitting in a puddle or even worse, making your kayak a bathtub full of water prone to capsizing.

Do you need an overflow roof drain?

Overflow drains, located 2 inches (51 mm) above the roof drain inlet, are required by Section 1506.3 where parapets or other conditions will cause ponding if the roof drain is inoperative. … The lower edge of the overflow scupper opening shall be 2 inches (51 mm) above the roof drain.

Do scuppers need downspouts?

Overflow drainage scuppers are typically holes with no downspout or other intricate designs. This is because these scuppers are specifically designed to remove water when there is a blockage in the primary system.

What are scuppers and downspouts?

Description: Scuppers are used to provide an outlet through parapet walls or gravel stops on flat and built-up roofs to allow drainage of excess water. They can be used in conjunction with gutters and downspouts to divert the flow to the desired location.

Article first time published on

How do you size scuppers?

The only unconditional guideline for roof scupper sizing provided by the code is that “scupper openings shall be not less than 4 inches (102 mm) in height and have a width that is equal to or greater than the circumference of a roof drain sized for the same roof area.”

What are roof drains called?

Many people ask, “What are roof drains called?” and they are simply called roof drainage systems. The drainage system starts at the roof line and then you have roof drainage to ground. The components that you need for a roof drainage system is a gutter system and downspout.

What does put him in the scuppers with a hosepipe on him mean?

Drunken sailors were sometimes hosed-down with bilge water as a form of punishment. The sailor would simply be placed, face up, by the scuppers (where the water would drain off the deck immediately) and given a thorough soaking.

Can you kayak without scupper plugs?

Scupper plugs are only applicable for kayaks that have scupper holes. Without scupper holes, there is simply no need for scupper plugs. It’s important to remember that scupper holes are included in sit on top kayaks for a reason. They are an important safety feature and highly recommended for beginner kayakers.

Why do kayaks have scupper holes?

Scupper holes are intentional holes in sit-on-top kayaks, like fishing kayaks. … They help give structural integrity to the kayak… They operate as a drain hole when you get water in your boat. This is especially key in rapids or waves when water can come in over the top.

Are kayaks supposed to have water in them?

If you find that small amounts of water are getting into your kayak don’t panic. It is totally normal for some water to get into the cockpit of a sit-in kayak and to get onto the deck of a sit-on-top kayak. … Let’s take a look at the potential problems that could be causing the issue of water getting inside your kayak.

Are kayaks supposed to have holes in the bottom?

The holes are designed to ensure that water drains off the deck every time the kayak is at a standstill. Many kayaks are crafted with innovative hulls to ensure that safe-bailing can happen without the need for forward movement. Some kayaks can self-bail within 60 seconds of sitting static.

Are kayaks supposed to have holes?

Most kayaks will have about four scupper holes as this is thought to be the safest amount. They are placed so that water will drain every time the kayak is at a standstill, so they won’t necessarily be working while your cruising at a decent pace.

How many scupper plugs kayak?

There are typically between one and six scupper holes on a kayak. Scupper holes are good for draining water.

Why is it called a scupper?

A scupper guides the water away from a building. The origin of the word isn’t completely certain, but it might come from the old French word escopir, which means literally ‘to spit. ‘ And that’s what scuppers do. They spit rainwater away from a building.

How does flat roof drain?

What do Drainage Systems do? A low-slope roof tilts slightly downhill from its center or from one side, so water rolls off to parapet scuppers and down the hopper (downspout). The scuppers are the openings in the outside walls, specifically designed to allow water, but not debris, to wash off your roof.

What is a scupper pipe?

Definition of scupper pipe : a drainpipe from a deckhouse roof to the scuppers or from the deck to an opening in the side.

How do you divert water on a flat roof?

You can use interior drains, positioned where the water pools on the roof. Water is encouraged to travel down the pipes to the gutter. Gutters are attached to the edge of the roof and redirect water away from the side of the building where damage can be caused.

What is a parapet wall?

parapet, a dwarf wall or heavy railing around the edge of a roof, balcony, terrace, or stairway designed either to prevent those behind it from falling over or to shelter them from attack from the outside.

What is the definition of the word scuppered?

scuppered; scuppering; scuppers. Definition of scupper (Entry 2 of 2) transitive verb. chiefly British. : to defeat or put an end to : do in sense 1a.

Where are roof drains required?

Where roof drains are required, secondary (emergency overflow) roof drains or scuppers shall be provided where the roof perimeter construction extends above the roof in such a manner that water will be entrapped if the primary drains allow buildup for any reason.

Where should a roof drain be placed?

Location – Drains SHOULD NOT be next to other rooftop objects like A/C units, vent pipes, or skylights. Level – Drains SHOULD always be installed at the lowest level of the roof surface. Strainers/Domes – Drain strainers SHOULD have holes or openings large enough for small debris to pass through.

Where are roof drains located?

Quite often emergency drain outlets are located right below the roof level of low-rise buildings. At that level, outlets are not subject to tampering. Also, the water stream coming from 20-30 feet above will be highly visible.

What is a roof overflow drain?

1108.1 Secondary (Emergency Overflow) Drains or Scuppers Where roof drains are required, secondary (emergency overflow) roof drains or scuppers shall be provided where the roof perimeter construction extends above the roof in such a manner that water will be entrapped if the primary drains allow buildup for any reason.

What are pool scuppers?

In swimming pool design, a scupper is a special feature that allows water to flow into the main pool area, often from a spa area.

What is gully trap?

A gully trap is provided outside the building before connecting to external sewerage line. It also collects waste water from the kitchen sink, wash basins, baths and wash area. Gully Trap is provided to prevent the foul gases entering in to the building by providing water seal.
