A spark plug tester is a handy tool that allows you to check if your spark plug is working properly. It can also save you time by allowing you to check if the problem is actually in your ignition.

What does spark plug tester do?

A spark plug tester is a handy tool that allows you to check if your spark plug is working properly. It can also save you time by allowing you to check if the problem is actually in your ignition.

How can I test my spark plugs without a tester?

An alternative method to check if a spark plug is firing is to remove the spark plug from the engine. Plug the spark plug on your ignition coil. Ground the threaded part of the spark plug to the engine block. Crank the engine and see if you are noticing any spark at the spark plug tip.

How do you check spark plugs with a spark plug test?

1. Attach a spark plug tester to the ignition wire. At the other end, the tester connects to the spark plug as it sits in your engine.
2. Turn the ignition ON.
3. Start the engine, or simply turn it over if it won’t start, and watch the transparent sides of the tester.

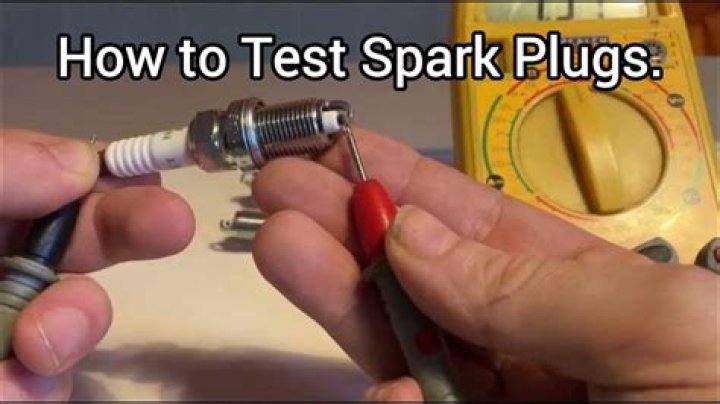

Can I test a spark plug with a multimeter?

An Ohm meter, which is part of a multimeter, can only check a spark plug for a short circuit or a breakdown of insulation resistance. A good spark plug should show an open circuit between the center electrode and the tip. Any resistance at all would mean the plug is bad.

What resistance should a spark plug have?

When spark plugs are new, the resistance value is between 500 and 3000 ohms. As the plug ages, values below 5000 ohms are acceptable. But once the plug’s resistance value exceeds 5000 ohms, the plug should be replaced. If a spark plug falls off a workbench or is dropped, it’s possible for the carbon resistor to break.

How many ohms should a good spark plug wire have?

The Society of Automotive Engineers suggests the maximum resistance should be 12,000 ohms-per-foot. However, some OEMs have recommended different maximum resistances. Consult a tune-up manual for exact specifications.

How do I test my spark strength?

The proper method to check for spark is with a spark tester. It resembles a spark plug but has a sunken center electrode that simulates a load on the coil. Holding the plug wire and seeing if a spark jumps to ground is inconclusive. The spark is arcing in atmospheric pressure.

How much is a spark plug tester?

current product Top RatedLisleLisleLisleInline Spark TesterSpark Tester IndicatorCoil-On Plug Spark Tester$1152$838$1677(31)(9)(1)

Can a faulty spark plug cause?

Failing spark plugs can cause the car engine to misfire and thus affect its performance. … It can result in incomplete combustion and damage to the catalytic converter of the car. Starting Trouble. Faulty spark plugs can cause the car to exhibit starting troubles.

Article first time published on

How do you know if a spark plug is misfiring?

Symptoms of misfiring spark plugs include rough idling, uneven power when accelerating, and an increase in exhaust emissions.

What are the symptoms of bad distributor cap?

• Trouble Starting. As the distributor cap gets worse, you are going to have trouble starting the engine. …
• Shaking. If you are experiencing intense vibrations or shaking in your car, it could be due to the distributor cap causing misfires. …
• Stalling. …
• Squealing Noises. …
• Check Engine Light.

What happens if spark plug wire resistance is too low?

Lower resistance means more of the ignition coils energy is going towards bridging the gap or the spark plug. That hotter spark can create a more even burn of the fuel/air mixture in the cylinder, and thus, more power output from the engine.

What's better 7mm or 8mm spark plug wires?

8mm spark plug wires are a heavier gage wire than the 7mm type. … A more robust core provides a lower resistance path for the power, thereby allowing more power to reach the spark plugs. Additionally, the 8mm wires have a thicker outer coating that keeps the core safe from damage.

Does resistance matter in spark plug wires?

Resistance is the biggest buzzword when it comes to spark plug wires, but it usually comes at the cost of EMI and RFI suppression. And despite all the hoopla surrounding resistance, it will not typically make any difference in horsepower in an otherwise healthy and properly functioning motor.

Do thicker spark plug wires make a difference?

Thicker conductors are required to carry more amps, but spark plugs are fired with very high voltage and low amperage. The thicker wires do have better insulation, usually silicone and that stands up to the heat of the engine compartment and higher voltage from modern ignition systems better than the older wires did.

Why would a spark plug have resistance?

Resistor plugs were developed in the 1960s to suppress some of the spark energy, thus lowering RFI to an acceptable level. Most resistor spark plugs use a monolithic resistor, generally made of graphite and glass materials, to filter the electrical voltage as it passes through the center electrode.

What does a spark tester look like?

The spark ignition tester connects to the boot the same way the boot connects to the spark plug itself. It will usually look like a clear cylinder with a wire coil and a light bulb inside.

How do you test an ignition coil with a multimeter?

Insert one of the multimeter’s probes into the center opening of the coil, contacting the metal terminal inside the coil. Touch the second probe of the meter to the ignition coil’s grounding terminal. The meter should read 6,000 to 15,000 ohms. If it does not, the coil’s secondary winding is faulty.

What color is a weak spark?

The strength of the spark is revealed in the color. A red or yellow spark is weak and probably will not spark in the cylinder. A blue or white spark is strong and has enough voltage to fight across the spark plug gap even under pressure within the cylinder.

How do you diagnose a bad coil?

1. Plug the tester into the coil.
2. Attach the ground wire.
3. Plug in the coil connector.
4. Adjust the spark gap to the correct measurement.
5. Start the engine.
6. If there’s spark, great, it works! If there’s no spark, it’s a bad coil.

What does orange spark mean?

A bright blue spark is best. A yellow/orange spark signifies weak ignition.
