A suspension bridge carries vertical loads through curved cables in tension. These loads are transferred both to the towers, which carry them by vertical compression to the ground, and to the anchorages, which must resist the inward and sometimes vertical pull of the cables.

What makes a suspension bridge strong?

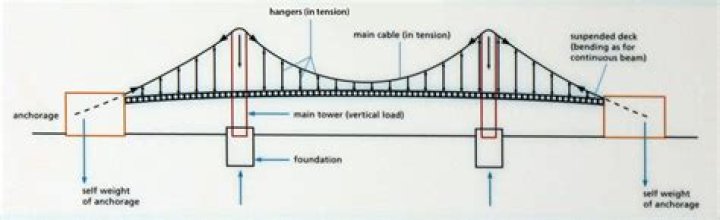

Introduction of Bridge Engineering The main forces in a suspension bridge are tension in the cables and compression in the towers. The deck, which is usually a truss or a box girder, is connected to the suspension cables by vertical suspender cables or rods, called hangers, which are also in tension.

What helps a suspension bridge hold weight?

Suspension bridges get their name from the fact that the roadway is suspended by cables from two tall towers. Most of the weight is supported by the two towers. … The suspenders move the deck’s compression forces to the towers through the main supporting cables.

Do suspension bridges move?

Suspension bridges are designed to be flexible. They will move vertically (up and down) and laterally (side to side, like a swing) to accommodate wind, change in temperature or load (the weights placed upon them). A suspension bridge that was not flexible would break very quickly!

What force holds a suspension bridge?

In suspension bridges, tension forces are most important, while in arch bridges, compression forces are what matter. Tension forces pull and stretch material in opposite directions, allowing a rope bridge to support itself and the load it carries.

Why do suspension bridges fail?

At first, the bridge’s deck began to experience vertical moment as a result of severe winds. … The phenomena of the wind and bridge failure is known as aeroelastic flutter. In addition to the twisting torsion caused by the 40mph winds that day, the failure can be contributed to its “excessive flexibility.”

How do suspension bridges work kids?

A suspension bridge works by transferring pressure equally. The cars driving across the bridge put a large force on the deck. The suspenders, horizontal cables, and towers all work together to take some of that force from the deck.

How are suspension bridge cables anchored?

In suspension bridges, large main cables (normally two) hang between the towers and are anchored at each end to the ground. … The tension on the main cables is transferred to the ground at the anchorages and by downwards compression on the towers.

Do all suspension bridges sway?

Most suspension bridges have a truss system built into them beneath the road to keep it more rigid and less apt to sway and twist. But suspension bridges have to be somewhat flexible during high winds. Otherwise, they may break. The combined effects of too much weight and wind can lead to breaking support cables.

Why do suspension bridges need tall towers?

A long-span suspension bridge usually has tall towers. The height of the Bridge’s towers directs the tensile (pulling) forces in the main cables upward, so that the cables can efficiently do their job of holding up the roadway deck.

Article first time published on

When would you use a suspension bridge?

They are ideal for covering busy waterways. With any bridge project the choice of materials and form usually comes down to cost. Suspension bridges tend to be the most expensive to build. A suspension bridge suspends the roadway from huge main cables, which extend from one end of the bridge to the other.

What is a major problem for suspension bridges?

1. Suspension bridges can struggle to support focused heavy weights. The goal of a suspension bridge is to continually transfer the tension and weight of traffic as it moves along the span. All of the cables work together to make this happen, but there is an upper weight tolerance that one must consider.

Which part of a suspension bridge receives the most compression?

QuestionAnswerA skyscraper is an example of this type of structure?Man made StructureThis force pulls things down to the earth but is not in space?GravityWhat part of a suspension bridge receives the most compression?The towersTension is the force on this part of a suspension bridge?The cables

Is suspension bridge effect real?

When you cross a swinging suspension bridge and see someone of the opposite sex, your fear of falling down causes your heart to pound. The effect was experimented and verified by Canadian psychologists Donald Dutton and Arthur Aron. Increasing tension leads to a rise in blood pressure and heart rate.

Where do you commonly find suspension bridges?

They are commonly found across harbors with a lot of boat traffic. The primary elements of a suspension bridge are a pair of main cables stretching over two towers and attached at each end to an anchor.

What's the strongest bridge in the world?

Firth of Forth Bridge Notably one of the strongest bridges in the world, the Firth of Forth had to be strong since its primary function was for railroad loading. Today, this Highlands workhorse still supports between 150 and 180 trains each day taking people from Glasgow to Edinburgh and all stops in-between.

How often do suspension bridges collapse?

The average number of bridge collapses based on the sample population was approximately 1/4,700 annually.

What is the dead load of a bridge?

Dead load refers to the weight of the bridge itself. Like any other structure, a bridge has a tendency to collapse simply because of the gravitational forces acting on the materials of which the bridge is made.

Do bridges collapse?

A large number of bridge accidents occur during the construction of the bridge itself. These accidents are often due to an error made by the engineers, such as a miscalculation. The bridge collapses under its own weight, and this can be deadly for the workers on it at the time.

Are bridges supposed to shake?

De Santos said it’s normal for bridges like this to move a bit. “The bridge will expand and contract based on temperature, the bridge will flex based on the different loads, like 18-wheelers and trash trucks, and the bridge may move vertically and horizontally during an earthquake.

How do suspension bridges carry load?

Suspension. A suspension bridge carries vertical loads through curved cables in tension. These loads are transferred both to the towers, which carry them by vertical compression to the ground, and to the anchorages, which must resist the inward and sometimes vertical pull of the cables.

What bridge sways the most?

Soon, the builders and the public would nickname the Tacoma Narrows “Galloping Gertie,” due to its tendency to sway.

What are anchors in a bridge?

Three self-anchored suspension bridges in PittsburghAncestorSuspension bridgeMaterialSteel rope, steel eyebar, concrete spar, post-tensioned concrete deck

What is the difference between cable stayed and suspension bridge?

The difference lies in how the cables are connected to the towers. In suspension bridges, the cables ride freely across the towers, transmitting the load to the anchorages at either end. In cable-stayed bridges, the cables are attached to the towers, which alone bear the load.

What are the two types of suspension bridges?

-Three general types of suspension bridge are used in military operations: A Standard suspension bridge. -A standard suspension bridge is built with standard equipage and material to carry specified loads. At present there are two types—a suspension footbridge and a light-equipment suspension bridge.

How long can a suspension bridge span?

Aesthetic, light, and strong, suspension bridges can span distances from 2,000 to 7,000 feet—far longer than any other kind of bridge. They also tend to be the most expensive to build. True to its name, a suspension bridge suspends the roadway from huge main cables, which extend from one end of the bridge to the other.

How does a suspension bridge maintain equilibrium?

The equal pressure on each side creates a remarkable balance as the bridge deck pulls inward. The main support cables are positioned from the towers to the anchorages which tend to be either concrete block or solid rock.

How deep is the water underneath the Golden Gate Bridge?

The depth of water under the Golden Gate Bridge is approximately 377 feet (or 115 meters) at its deepest point. The US Geological Survey, with other research partners, have mapped central San Francisco Bay and its entrance under the Golden Gate Bridge using multibeam echosounders.

What type of bridge can hold the most weight?

The arch bridge can hold the most weight of the three, the deck truss bridge can hold an average amount of weight, and the beam bridge could hold the least amount of weight. This experiment tested the arch, deck truss, and beam bridges to see which could hold the heaviest amount of weight.

What bridge design is the strongest?

Even though the truss bridge design has been around for literally centuries it is widely regarded as the strongest type of bridge.

What is the longest suspension bridge in the world?

By total length the Mackinac Bridge, at 5 miles long, remains one of the longest bridges of its kind. By comparison, the Akashi Kaikyō Bridge in Japan, which is currently considered the longest suspension bridge in the world with a main span length of 6,532 ft, is less than 2.5 miles long in total length. Figure 1.
