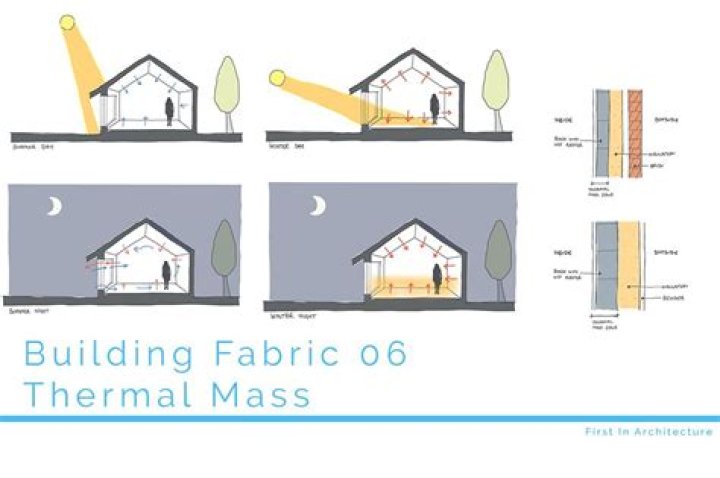

Thermal mass acts as a thermal battery to moderate internal temperatures by averaging out day−night (diurnal) extremes. In winter, thermal mass can absorb heat during the day from direct sunlight. It re-radiates this warmth back into the home throughout the night.

What are thermal walls?

Thermal Storage Walls The thermal storage wall utilizes a south-facing wall which is covered by one or two sheets of glass or plastic (Figure 1). Thermal storage walls typically use concrete or other massive structural materials to store heat. … An insulating shutter again can be used to reduce the heat loss at night.

What is thermal mass in construction?

Thermal mass is a property that enables building materials to absorb, store, and later release significant amounts of heat. Buildings constructed of concrete and masonry have the same energy-saving advantage because of their inherent thermal mass. …

What is mass wall?

A mass wall is a heavyweight wall, typically exhibiting a unit weight greater than 15 lb/ft2. While many professionals (and even code reviewers!) presume that any wall system containing concrete and/or masonry qualifies as a ‘mass wall’ with regard to energy codes and standards, it might not necessarily be true.

Where do you put thermal mass?

Thermal mass should be placed where it will best be able to absorb heat in the colder months and be shaded in the warmer months. This means it is best to put it near windows or other glazed areas where it will be exposed to direct sunlight in winter. The north side of the house is generally best.

What does high thermal mass mean?

In building design, thermal mass is a property of the mass of a building which enables it to store heat, providing “inertia” against temperature fluctuations. … Scientifically, thermal mass is equivalent to thermal capacitance or heat capacity, the ability of a body to store thermal energy.

How do you add thermal mass to a house?

Another strategy that you can implement to build thermal mass in your home is to create a stone or brick accent wall, with a direct line of sight to south-facing windows. Using this strategy will, like a concrete floor, collect heat during the day to release at night.

What are examples of mass walls?

The IRC classifies a mass wall as an above-grade wall made of concrete block, concrete, insulated concrete forms (ICF), masonry cavity, brick, earth, adobe, compressed-earth block, rammed earth, and solid timber/logs.

Why is thermal mass important?

Thermal Mass, Why Is It So Important? Thermal mass is the ability of storing and releasing heat to help retain a constant indoor temperature. It is an effective way to improve thermal comfort in a building and plays an essential role in saving energy.

What is the R-value of a CMU wall?

MaterialThicknessR-value (F° · sq.ft. · hr/Btu)Concrete Masonry Unit (CMU)4“0.80Concrete Masonry Unit (CMU)8″1.11Concrete Masonry Unit (CMU)12″1.28Concrete 60 pounds per cubic foot1″0.52

Article first time published on

What is the mass wall R-value in climate Zone 5?

For example, the mass wall U-Factor requirement for Chicago (Climate Zone 5) is U0. 078, which corresponds to an R-Value of 12.8.

How do you stop a concrete wall from heating?

The common recommendation for increasing thermal resistance for masonry wall is to install fiberglass thermal insulation at the wall.

What is thermal construction?

Thermal insulation is a construction material with low thermal conductivity, often less than 0.1W/mK. These materials have no other purpose than to save energy and protect and provide comfort to occupants. … These include industrial insulation products and the application of natural elements as thermal insulation.

How can the thermal mass of concrete be reduced?

Concrete that is left exposed (or painted) inside a building will soak up excess heat during the day, providing thermal inertia against temperature fluctuations, reducing or eliminating the need for mechanical cooling. Heat retained by the concrete is removed overnight by ventilating the building with cool night air.

What material hold heat the longest?

What material holds heat the longest? Zeolite thermal storage retains heat indefinitely, absorbs four times more heat than water.

What are two effects of thermal mass?

heavy thermal mass materials enable buildings to resist thermal fluctuations, also called “thermal flywheel effect.” Materials with high thermal mass can absorb external heat and store it, then transmit it to areas of lower temperatures. As a result, the thermal fluctuation and conductivity of the building decrease.

Does mass affect heat loss?

The mass has no effect on the heat transfer but the Surface area.

What absorbs heat the best?

The more light the object absorbs, the more heat absorbed since light is energy. If you consider it a color, black absorbs the most heat. A black object absorbs all wavelengths of light and reflects none.

Does concrete have high thermal conductivity?

Normal concrete is shown to have a thermal conductivity of ~2.25 W m−1 K−1. The surrogate aggregates effectively reduce the conductivity to ~1.25 W m−1 K−1 at room temperature. The aggregate size is shown not to affect thermal conduction: fine and coarse aggregates each lead to similar results.

Is concrete a good thermal conductor?

The thermal conductivity of concrete in saturated condition is greater than in dry state due to the thermal conductivity of water, which is 25 times higher than air [28], [57]. Moreover, the thermal conductivity of water used in mixtures is reliant on the temperature.

How do you find the thermal mass of a wall?

The Thermal Mass Parameter (TMP) for a dwelling is required for the heating and cooling calculations. It is defined as the sum of (area x heat capacity) over all construction elements (Cm) divided by total floor area (TFA).

What is low thermal mass?

Low density, lightweight materials such as timber or timber products require little heat to increase in temperature but lose heat rapidly. These are referred to as low thermal mass materials.

Are double brick houses cold?

They are cold in the winter because the interior walls are plaster over brick. We would have to add interior framing and give up floor space to get any insulation on those walls. It’s hard to hang pictures on those walls because you need brick drill bits to get anything into the wall.

How is thermal mass energy efficient?

The most obvious energy efficiency benefits from the use of thermal mass accrue in low-rise buildings. Thermal mass, when used together with passive solar design techniques and natural ventilation, can effectively eliminate the requirement for air conditioning.

What is thermal mass How does thermal mass help keep a house warm during winter how does it keep a house cool during summer?

During summer months, the mass will help keep rooms cooler and delay the use of air conditioning. In winter months, during the day, heat produced by the HVAC system is absorbed by the home’s thermal mass. At night, heat is released to warm the home. The greater the mass, the more comfortable it will keep the home.

What is thermal bridging in construction?

Thermal bridging is the movement of heat across an object that is more conductive than the materials around it. The conductive material creates a path of least resistance for heat. Thermal bridging can be a major source of energy loss in homes and buildings, leading to higher utility bills.

Is insulation thermal mass?

The use of thermal mass with insulation in a walling system is useful to slow the transfer of extreme heat and cold by acting as a temperature sink that slowly releases the stored temperature over an extended period. … They are therefore said to have high thermal mass.

What do insulated walls do?

Efficient Heating and Cooling Insulation on exterior walls puts a blanket-like barrier between your living area and extreme outdoor temperatures. Insulating your walls can prevent this by limiting air movement, enabling you to save up to 40 percent in heating and cooling bills.

How much thermal mass does a greenhouse need?

A wide array of design variables means the amount required is different for each greenhouse. A general rule of thumb is to use 2 to 5 gallons of water per square foot of glazing area if thermal mass is your primary climate-control strategy.

Is brick wall mass wall?

It defines mass walls as walls that are made of concrete block, concrete, insulated concrete form, masonry cavity, brick, earth, adobe and solid timber or logs.

What is mass R-value?

When people refer to the “mass effect” or “effective R-value,” they are generally referring to the ability of high-mass materials, when used in certain ways, to achieve better energy performance than would be expected if only the commonly accepted (steady-state) R-value or U-factor of that material were considered.
