A union is used when you are trying to join two pipes together that are fixed, thus unable to be turned. A union is very similar to a coupling, except that it can be unscrewed into two separate pieces and then screwed back together when both separate ends are attached to the two pipe ends that need to be joined.

What is Union fitting?

Pipe Union is a type of fitting equipment designed in such a way to unite two pipes which can be detached without causing any deformation to the pipes. … In other words, the pipe unions can disjoint two pipes very easily. They are widely demanded in the pipe fitting market.

How tight should a PVC Union be?

The right way to assemble a threaded PVC joint-Schedule 40 or 80 is finger tight plus one to two turns-no more. Two turns past finger tight plus the stress of the system pressure is within the tensile strength of one-inch PVC.

Do you use Teflon tape on unions?

Don’t use teflon tape on union threads. For copper unions you can grease the threads and mating faces with vaseline or use pipe dope. tests good. The pipes going into the unions need a pipe thread sealer.

How does a union pipe work?

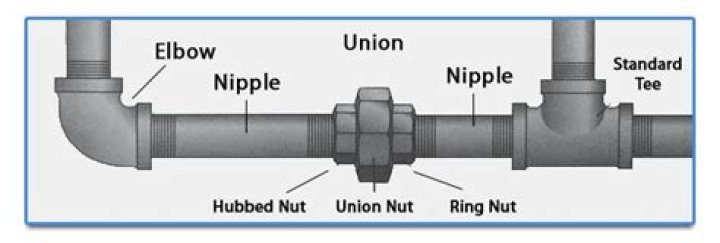

A pipe union consists of three parts – a nut, a female end and a male end. To make an effectively working pipe fitting, both the male and female ends are sealed together with the help of nuts. A female threaded fitting has threads on the inside, while in the male-threaded fitting, the threads are on the outside.

Is a union the same thing as a coupling?

The basic difference between a coupling and a union is that a coupling is for joining pipe to pipe or pipe to a swedge. A union is made for joining and disassemble of a part of a piping system (a steam trap or control valve, etc) for maintenance or replacement.

What is a union socket?

PVC unions and PVC pipe union connectors are pipe fittings designed to connect two pipes together without the use of a sealant or traditional glued coupling. … This means that wherever you use a PVC union to connect pipes together these pipes can be disconnected and worked on with relative ease.

What is a half union fitting?

This ProLine lead-free fine thread flare half union is used to join 2 pipes often in air or vacuum lines. It can be connected and disconnected unlike soldered fittings. Flare unions are often used with flare nuts (sold separately) for extra security with gases and liquids.

Can you put a union on a gas line?

only unions allowed on gas are at the appliance. exposed or not, you can’t use them. gotta use left-right coupling and nipple.

Do pipe unions have a flow direction?

RE: Flow Direction Through a Pipe Union In some applications, it is common to flow from the nut side to the external thread side, but this is not required. There are also applications where it may make sense to flow the other direction.

Article first time published on

How do you fix a leaking PVC union?

Epoxy. Repair epoxy is putty or viscous liquid that can be used to repair pipe leaks on PVC and its joints. To repair your pipe or joint using epoxy, first clean and dry the damaged area, ensuring water can’t reach the affected area. If necessary, mix the putty or liquid according to the manufacturer’s directions.

How long will a PVC union last?

This entry was posted on January 9, 2020 by Korey Kashmer. As one of the most-used plumbing materials, PVC pipe is known for being very durable and long-lasting. In fact, PVC pipes last approximately 100 years.

Why do unions leak water?

A union for joining copper pipe is typically made of brass, and it has slip connections so you can solder it onto the pipes. You join the union by tightening the central nut. … When a union leaks, it’s usually because the pipes that it’s joining are slightly offset.

How do you tighten a dielectric union?

First step: Wrap several layers of pipe sealing tape over the threads of the steel pipe. Install the threaded end of dielectric union body to the steel pipe. Turn the union clockwise and tighten with a pipe wrench.

How do you tighten PVC unions?

Once the sealant is applied to your threads, insert the male end into the female fitting. Once the pieces are together, tighten the connection by hand slowly until the fitting will not turn any more. At this point, you can use a wrench to complete one or two more turns. Do not tighten your fitting past this point.

How do you break a plumbing union?

To crack open a union, determine which of the smaller union nuts the ring nut is threaded onto. With a wrench on each nut, turn the ring nut counterclockwise. When unscrewing pipe, use the second wrench to keep the fitting from turning while you unscrew the ring nut.

What is a left right coupling?

Left/Right Nipple And Coupling Set These have standard right-hand threads on one side & reverse (left-hand) threads on the other. These are generally used for gas piping, when unions are not allowed. Description.

How do you loosen corroded pipes?

1. Spray lubricant on the outside of a corroded joint and give it time to seep into the joint and dissolve rust on the threads, which usually takes about five to 10 minutes.
2. Grip the fitting you are trying to separate with one pipe wrench; grip the pipe to which it is attached with another.

Do PVC threads need Teflon tape?

The right way to assemble a threaded PVC joint-Schedule 40 or 80 is finger tight plus one to two turns-no more. Two turns past finger tight plus the stress of the system pressure is within the tensile strength of one-inch PVC. Don’t use Teflon tape, Teflon paste or pipe dope. Do use a sealant.

Should I use Teflon tape on CPVC fittings?

Degreasing solvents should never be used to clean CPVC threads. TFE (Teflon®) thread tape is always safe for making CPVC threaded connections. Some paste-type sealants contain solvents that may be damaging to CPVC.

Do PVC threads need sealant?

When you work with threaded plastic fittings, you should use a sealant specifically designed for plastic fittings. A non-hardening compound is forced into potential areas where leaks could happen by water pressure, sealing it completely.

How do you tighten a union fitting gas?

Tighten each of the pipes to the couplings using the pipe wrench. Screw the union’s end nut, with the larger central nut attached, by hand onto one pipe end. Tighten it in place with a crescent wrench. Screw the union’s other end nut onto the other pipe end, again tightening it with the wrench.

How much do pipefitters make?

The average salary for a pipefitter in the United States is around $54,106 per year.

What is the male side of a pipe union?

Male threads are on the outside, like a bolt. Female threads are on the inside, like a nut. The male threads screw into the female threads. This sometimes leads to confusion when dealing with hard brake lines and other rigid tubing. These pipes usually have a male-threaded nut at the end.

What is the difference between socket and union?

Couplet or socket — To connect two pipes. Union – To connect two pipe connection. Generally both item have same function to connect pipes.

Is coupler and socket are same?

A coupling (or coupler) (used in piping or plumbing) is a very short length of pipe or tube, with a socket at one or both ends that allows two pipes or tubes to be joined, welded (steel), brazed or soldered (copper, brass etc.)

What is difference between coupler and socket?

Full Coupling is used for connecting small bore pipes. It used to connect pipe to pipe or pipe to swage or nipple. … A socket weld full coupling is used to join small bore plain end pipes where the pipe spec requirement is socket weld. A threaded full coupling is used to join small bore pipes with threaded ends.

What does a gas pipe union do?

A coupling is a solid fitting with female threads on the inside of both ends. It is used for joining two lengths of pipe together that are not locked in place and can be turned. A union is used when you are trying to join two pipes together that are fixed, thus unable to be turned.

Can a gas line be above ground?

Exterior piping may be either buried or installed aboveground and shall be well supported and protected against mechanical damage.

How do you know which way a pipe is union?

The union’s central radial nut can be inserted through the jaws of a pipe wrench. The pipe wrench should be tightened around the nut. The nut on the end of the male section is loosened by turning the wrench’s handle clockwise.

Are PVC unions directional?

PVC Unions are non-directional in terms of flow, and position is usually determined to allow for easy access and disassembly.
