A petcock is simply a plastic bung placed within the inlet pipe, usually with a screw to adjust the inner aperture of the petcock to adjust the flow of water through it.

How does a urinal Petcock work?

A petcock is simply a plastic bung placed within the inlet pipe, usually with a screw to adjust the inner aperture of the petcock to adjust the flow of water through it.

How does a urinal sensor work?

A passive infrared sensor identifies when the urinal has been used, by detecting when someone has stood in front of it and moved away, and then activates the flush. There usually is also a small override button, to allow optional manual flushing.

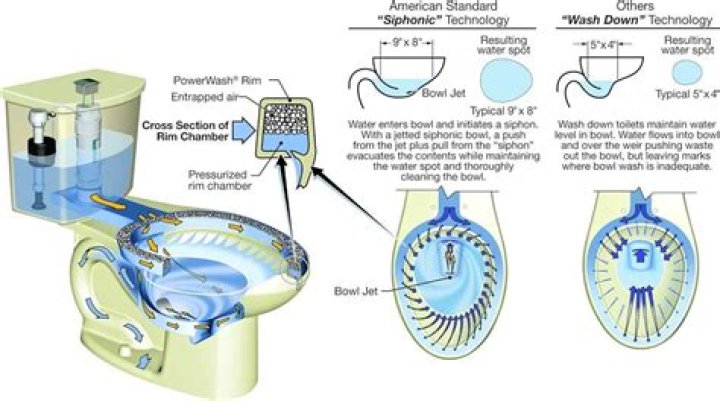

How does a siphon jet urinal work?

A siphon jet urinals use a concentrated stream of water to fill the lower bowl portion of the urinal and create a siphon action through the p-trap. In other word, jet push at the same time when water fill to create a cyclone stream down the drain.

How do you adjust a urinal flush valve?

Loosen the top of the valve system by rotating the retaining bolt with an adjustable wrench. This will give you access to the flush valve. Use your adjustable wrench to rotate the flush valve. Spin it clockwise to decrease flow, and counterclockwise to increase flow.

Do urinals need P traps?

Do Urinals Have Built-In Traps? Yes, some models and types of urinals do come with built-in traps that play a very important role in the entire process. For instance, a standard urinal has a pipe known as a “P-trap” where all the water is flushed into it by the urinal.

How are urinals installed?

Installation. For wall hung urinals, screw the mounting brackets into the wall and then slide the unit down onto them securely. Then use the fixing holes at the bottom to secure the urinal to the wall. For floor standing urinals, use the fixing holes on the flanges to fix the unit to the wall.

What is siphon experiment?

A siphon has the ability to move water up before the water drops without using any pumps or motors. … This simple experiment offers a great demonstration of water hydraulics.

How does syphon pump work?

A siphon is a tube that allows liquid to travel upward, above the surface of the origin reservoir, then downwards to a lower level without using a pump. When a certain amount of water moves over the bend in the siphon, gravity pulls it down on the longer leg lowers the atmospheric pressure in the bend of the siphon.

How does a piston flush valve work?

When flushed, the handle plunger shifts the stem of the relief valve, which causes it to tilt. This tilting allows a small amount of water to exit the upper control chamber through the valve barrel. When the relief valve is tilted, a pressure imbalance is created between the upper and lower chambers of the valve.

Article first time published on

Why do urinals need to flush?

“Hard water” is extremely common in industrial areas. When this water is used to flush, it deposits sediments on the urinal pans and drainage lines. Not only do your restrooms smell much worse, your drainage lines are choked which means a hefty maintenance bill.

What causes a urinal not to flush?

When the water does not drain in a urinal, the problem can be simple or complicated. Simple meaning maybe something is clogging the urinal internal drain; complicated meaning the plumbing drain line may need to be “snaked.” In some instances, the vent stack may also need to be cleaned.

How often should a urinal flush?

We recommend that these are set to actuate a flush within 20 minutes of a urinal being used and every 12 hours when they have not been used. The reason for the latter, often referred to as a “janitorial” or “hygiene” flush, is to make sure there is always enough water in the traps to preserve the water seal.

Do urinals have wax rings?

Urinal wax rings, seals, and gaskets help form water-tight connections to prevent leaks around urinals. They seal the connection between the urinal and flush valve or between the urinal and the wall or floor.

Why do waterless urinals smell?

The problem arises because waterless urinals need to be cleaned in a different way from traditional flushing urinals. … Every time you flush a urinal the limescale in the water used to flush starts to accumulate an absorbent layer in the urinal bowl. Bacteria can then develop in this layer and that results in odour.

What is the ADA height for a urinal?

Urinals shall be the stall-type or the wall-hung type with the rim 17 inches (430 mm) maximum above the finish floor or ground. Urinals shall be 13 1/2 inches (345 mm) deep minimum measured from the outer face of the urinal rim to the back of the fixture.

Why is my siphon not working?

You may have an air leak in the tube somewhere that is preventing the siphon from getting going. Any tube would work, just put one side in the higher container, suck the water through and put the other side of the tube in the lower container. It’s simple physics. Don’t suck it, you’ll end up with a mouth full of water.

What is Syphon where it is used?

A siphon can be used for irrigation purposes. When both ends of a syphon are at atmospheric pressure (equal pressure), liquid flows from high to low. However, if the lower end is pressurised, liquid can flow from low to high. Most syphons have water as a fluid.

Can you siphon with a garden hose?

Instead, siphon the water out with a garden hose. Water from an outdoor faucet helps create the siphon. In order for the siphon to work, the drainage location — where the water exits the hose — must be lower than the end of the hose taking water out of the pool; a siphon won’t work properly traveling uphill.

How does a Syphon work for kids?

It is powered by the fall of the liquid as it flows down the tube under the pull of gravity. The syphon must touch the liquid in the (upper) reservoir (the source, where the liquid comes from) in order for it to work. This allows atmospheric pressure to push the liquid up the tube.

How do inverted siphons work?

siphons. inverted siphons are used to carry sewage or stormwater under streams, highway cuts, or other depressions in the ground. In an inverted siphon the liquid completely fills the pipe and flows under pressure, as opposed to the open-channel gravity flow that occurs in most sanitary…

How do you stop a Syphon effect?

1. Put a valve inline with the siphon that simply blocks the flow, “freezing” the state of the system. …
2. Put a valve in the top of the siphon that allows air into the tubing, breaking the suction that keeps the siphon flowing.

How does a pressure flush toilet work?

It’s inside the porcelain tank. When water fills the air tight tank there’s trapped air. As the pressurized water fills the air tight tank it pressurizes the air. When the toilet handle is pushed the pressurized air blows the water into the toilet bowl.

How do you use a flush valve?

Its function is to release flush water from the tank and into the bowl. The water flushes waste down the drain and refills to maintain the vacuum of the toilet drain. The flush valve is regulated by a flapper, which creates a water tight seal so that the toilet can hold water until it is flushed.

How does an automatic toilet flush work?

Automatic toilet flusher uses active infrared sensor technology which uses the emission and reception of infrared beams to detect the presence and movement of objects or people in their field of detection. When the sensor detected the body, it is ready to work. When people leave, it flushes water automatically.

Why do guys pee standing up?

Physicists have found that peeing standing up significantly increases the velocity of the stream and potential for backsplash, amounting to less hygienic, more bacteria-filled bathrooms. So if dads aren’t going to pee sitting down for their prostates, they can do it for their partners.

Why do they pour ice in urinals?

To bartender’s surprise, the ice eliminated urinal odors. As one expert explained, the ice froze odor causing molecules in urine, preventing them from being released. Eventually, the odor-filled molecules melt with the ice and drip down the urinal and into the sewer.

Are urinals cleaner than toilets?

Urinals tend to get a little more coated in urine than your average toilet, which makes them smell more. And cleaning them means wiping them down directly, a chore no one wants. Cleaning a toilet is easier and is needed less often since the water covers the entire bowl and takes most urine particles away with it.

What dissolves uric acid in urinals?

TALON Urinal Cleaner and Descaler dissolves and removes uric acid deposits from urinal drains and traps. Designed to keep urinals open and free flowing and eliminate uric odors.

Can urine clog pipes?

As this high urine and water concentrate sits in pipes, an extremely hard, cement like sediment (that is extremely difficult to remove) called calcite accumulates and clogs plumping infrastructure pipes.
