Relays are switches that open and close circuits electromechanically or electronically. Relays control one electrical circuit by opening and closing contacts in another circuit. As relay diagrams show, when a relay contact is normally open (NO), there is an open contact when the relay is not energized.

How do you test a low-voltage relay?

If the defective relay is keeping the lights on: Turn all the relays OFF then measure across the two brass screws on the line-voltage side of each relay. The meter should read around 120V (normal residential circuit) on working relays as in the off position the relays cut the circuit at this point.

What is minimum voltage relay?

The Operate Voltage is the minimum coil voltage at which the relay is guaranteed to operate. The release Voltage is the minimum voltage at which at which an operated relay is guaranteed to remain in the operated position.

How do 12 volt relays work?

Relays install between the power source and the electrical accessory requiring on/off power. When the relay is energized, the high current to operate the accessory flows from the power source, through the relay, and directly to the part.

What is under and over voltage relay?

Over & Under Voltage Relay (Voltage Band) Voltage Band Relays provide protection to equipment that is required to operate within an upper and lower voltage limit. As long as the operating voltage remains within an OVER & UNDER voltage range, the internal relay stays energized.

What causes a relay to fail?

In fact, the life of a relay is essentially determined by the life of its contacts. Degradation of contacts is caused from high in-rush currents, high- sustained currents, and from high voltage spikes. … Relays can also fail due to poor contact alignment and open coils.

How is a relay triggered?

Mechanical relays use an electromagnetic coil and a physical switch; when you apply a voltage, the switch activates. … When you apply an appropriate voltage to the control circuit, the electromagnetic coil in the relay activates and pulls the switch closed, enabling current to flow through the switched circuit.

When should you use a 12V relay?

One of the most common situations that require the use of a relay occurs when an application needs to switch from high to low current (or vice versa) within the same circuit. For example, the temperature sensors that power HVAC units require levels of amperage that vastly exceed the capacity of their wiring.

When would you use a 12V relay?

12V DC relay switches are the best solution for full voltage applications, as they allow a low current flow circuit to control a high current flow circuit, like a vehicle’s horn, headlights, auxiliary lamps, fan motors, blower motors and countless pieces of equipment existing on vehicles today.

What is 86 on a relay?

85 and 86 are the coil pins while 30, 87, and 87a are the contact pins. … Realizing that 85 and 86 are the coil pins, these pins will be transferring the current through the coil. 85 will be used to ground your relay, while 86 will be connected to the switchable power.

Article first time published on

How much current does a 12V relay draw?

The current draw of the coil is not normally shown but is typically 150-200 mA with a corresponding coil resistance of around 80-60 W. Tip: Knowing the coil resistance is useful when testing the relay for a fault with a multi-meter.

How many volts does it take to change a 12V relay?

The nominal voltage of a 12V relay is 12V, so 80% of this is 12 x 0.8 = 9.6V. So in theory, this relay should activate at 9.6V.

Will 5V trigger a 12V relay?

You cannot activate a 12Vdc relay with 5V.

Why DC supply is used in relay system?

The circuit breakers which are used to switch large quantities of electric power on and off are actually electromechanical relays, themselves. … DC power is used because it allows for a battery bank to supply close/trip power to the breaker control circuits in the event of a complete (AC) power failure.

What is a overload relay?

Overload relays cut off current to the motor when a high-current situation develops due to a ground fault, short circuit, phase failure, or mechanical jamming. They are an inexpensive way of avoiding downtime for repair or replacement of failed motors from excessive current.

What is directional relay?

Definition: A protection relay in which the tripping decision is dependent in part upon the direction in which the measured quantity is flowing.

How does a relay module work?

Relay Modules A power relay module is an electrical switch that is operated by an electromagnet. The electromagnet is activated by a separate low-power signal from a micro controller. When activated, the electromagnet pulls to either open or close an electrical circuit.

How does an electromagnetic relay work?

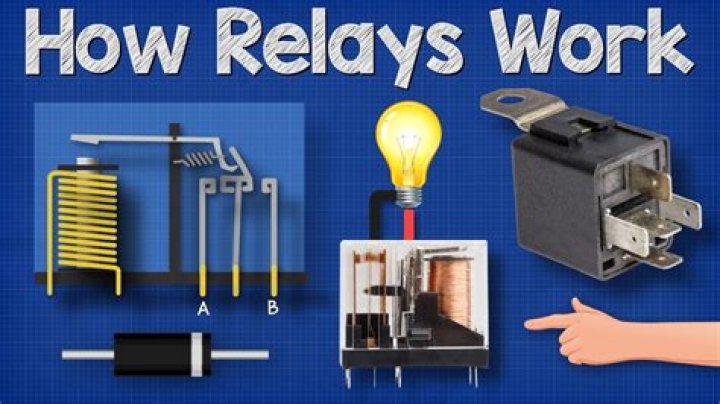

A relay is a special type of switch turned on and off by an electromagnet . When a current flows through the coil, an electromagnetic field is set up. The field attracts an iron armature, whose other end pushes the contacts together, completing the circuit.

What is 5V relay?

A 5v relay is an automatic switch that is commonly used in an automatic control circuit and to control a high-current using a low-current signal. The input voltage of the relay signal ranges from 0 to 5V.

What is the difference between a relay and a module?

A control module influences the signals and amplifies them if necessary. The relay is the device that open or closes the contacts to cause the operation of the other electric control.

How much current does a 5V relay draw?

VoltageCurrentTotal Power Dissipation5V (normal operating voltage)90mA450mW3.5V (pick-up voltage)63mA221mW2.5V (circuit of Figure 1)45mA112mW

What is the difference between relay and relay module?

Your average relay module comprises two internal metal contacts. Usually, these contacts do not connect or touch each other. However, relays include an internal switch connecting these contacts to complete an electrical circuit that allows current flow. Relay modules do not work like manual light switches.

What is the switching voltage on a relay?

LoadResistance loadMaximum switching voltage250 VAC, 125 VDCMaximum switching current5 AContact formDPDTContact structureSingle

What are the types of relay?

• Electromagnetic Relays.
• Latching Relays.
• Electronic Relays.
• Non-Latching Relays.
• Reed Relays.
• High-Voltage Relays.
• Small Signal Relays.
• Time Delay Relays.

How do you check a relay with a voltmeter?

Grab a multimeter and set it to Ohms. Touch the leads across the electromagnet coil pins and measure resistance. Anywhere from 50-120 ohms is OK. Out of range or open means a bad electromagnet coil winding and time for a new relay.

How do you tell if a relay is bad with a multimeter?

The only tool required to check a relay is a multimeter. With the relay removed from the fuse box, the multimeter set to measure DC voltage and the switch in the cab activated, first check to see if there are 12 volts at the 85 position in the fuse box where the relay plugs in (or wherever the relay is located).

Does a relay click when it's bad?

If your starter relay has gone bad, the electrical signal will never make it from the battery to the starter motor. … A faulty relay often produces an audible clicking sound when you turn your car. Contact a mechanic immediately if your car fails to start and you notice this sound.

Why does a relay burn out?

If overvoltage is applied to the coil, the coil’s insulating film will be destroyed, and short-circuiting will cause high temperature. The color of the coil will change, and the resin around the coil will melt.

Why would a relay burn out?

Even in low-level signal applications, accidents and faulty UUTs can cause relay failures, and inrush currents, caused by hot-switching capacitive loads, and voltage spikes, caused by hot-switching inductive loads, accelerate relay aging.

Why does a relay get hot?

It is normal for the relay coil to be slightly hot during normal operation, but if the contacts are hot, it means that the service life of the relay has expired and should be replaced. … If the contacts are not replaced, the contact resistance will heat up and cause further oxidation.

Are all 12V relays the same?

The problem is, not all relays are the same. … Just because it has the same number/location of terminals, doesn’t mean the relay works for that application. Some relays, when used for the wrong application, can generate a voltage spike over 100V on a traditional 12V system.
