A VOR ground station uses a phased antenna array to send a highly directional signal that rotates clockwise horizontally (as seen from above) 30 times a second. It also sends a 30 Hz reference signal on a subcarrier timed to be in phase with the directional antenna as the latter passes magnetic north.

How do VOR signals work?

VORs work on the principle of the phase difference in two radio signals. … That’s how a VOR works. A rotating directional signal is broadcast from the VOR, while a second (omnidirectional) signal is broadcast only when the rotating signal passes north.

What are the 3 types of VOR and describe each?

There are three types of VOR navigational stations: VOR (just the VOR), VOR-DME (VOR plus distance measuring equipment), and vortac (VOR plus the military’s tactical air navigation system). Each VOR station can further be classified according to its range – terminal, low altitude, or high altitude.

How does a vot work?

The FAA VOR test facility (VOT) transmits a test signal which provides users a convenient means to determine the operational status and accuracy of a VOR receiver while on the ground where a VOT is located.

Is VOR magnetic or true?

VOR degrees are magnetic, not true, so you can read your magnetic course for that location right from the VOR rose. Again, the difference between the true course you’ve drawn on your chart and the magnetic course that runs through the VOR rose is the magnetic variation.

Is VOR going away?

The VORs will be closed in two phases: one running through 2020, and the second from 2021 to 2025. “The FAA remains committed to the plan to retain an optimized network of VOR NAVAIDs,” the agency said.

Which is a correct VOR check?

If you’re an IFR pilot using VORs for navigation, you must check your VOR receiver within 30 days preceding an IFR flight, and log the check. You may check two receivers against each other if your aircraft has two separate units. This will be the easiest if you have two units. Tolerance is 4 degrees.

Is VOR the same as ILS?

VOR stands for VHF Omnidirectional Range and is a way to help aircraft navigate by using fixed ground based beacons. … ILS stands for Instrument Landing System and is a radio system that enables aircraft to land on a runway safely even without visual contact.

What are the limitations of the VOR?

VORs are limited to line-of-sight. Obstacles, terrain, and even the slope of the earth interfere with VOR signals. There’s no restriction on how many airplanes can use a single VOR simultaneously. There are three classes of VORs: Terminal (T), Low (L), and High (H).

What is VOR and ILS?

VOR (VHF omnidirectional range) and ILS (instrument land- ing system) are aircraft navigation aids based on analog mod- ulation, and are in use worldwide. … Because ILS supports the particularly critical landing approach, the requirements for precision, reliability and trustworthiness are extremely high.

Article first time published on

How do you tell if a VOR is out of service?

The only way to find out if a VOR will be usable is to check NOTAMs for specific VORs that you plan to use along, or near, your route. This can get tedious, and many pilots skip this, especially when they typically rely on the use of GPS for navigation.

Where are VOR airborne checkpoints?

VOR Checkpoint: Many airports have VOR checkpoint signs that are located near a taxiway, ramp or runup area. These signs indicate the exact point on the airport where there is sufficient signal strength from a VOR to check the aircraft’s VOR receiver against the radial designated on the sign.

When using a vot to check the accuracy of a VOR?

To use the VOT, tune to the appropriate frequency and center the CDI. The omni-bearing selector should read 0° with a FROM indication, or 180° with a TO indication. The allowable error is ±4°. VOR receiver checkpoints are listed in the A/FD.

What is cone of confusion VOR?

A cone-shaped volume of airspace directly above a VOR station where no signal is received, causing the CDI to fluctuate.

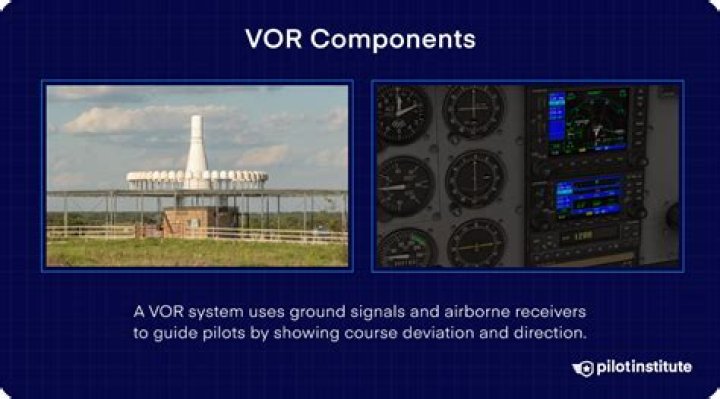

What are the components of a VOR?

A VOR system is made up of a ground component and an aircraft receiver component. Ground stations are located both on and off airports to provide guidance information to pilots both en route and during arrival and departure. Aircraft equipment includes a VOR antenna, a VOR frequency selector, and a cockpit instrument.

What is VOR declination?

The original variation when the VOR was installed or readjusted is called the declination. When airways are determined along with any approaches, departure procedures, or waypoints (intersections) are determined, the associated radials are based on the declination.

What is VOR stand for?

Definition. VHF Omnidirectional Radio Range (VOR) is defined as VHF Omnidirectional Radio Range, an aircraft navigation system operating in the VHF band.

What is VOR variation?

The VOR defines 360 radial magnetic tracks which radiate away from the VOR beacon. The VOR station is a permanent fixture at a specific geographical position on the earth. The direction of each radial is determined at the station, which uses the local (station) variation to convert the true direction to Magnetic.

How often is a VOR check required?

VOR Receivers are required to be checked every 30 days for IFR Flight Operations. However, it is also important for VFR Pilot’s to check their aircraft’s VOR Receivers. A VOT is coded to emit the 360 Radial in all directions around the facility.

Do you need a VOR check for an ILS?

For your second question, there is no required check for an ILS receiver. Therefore, yes, you could be >30 days since your last VOR check and perfectly legally fly an ILS – as long as you didn’t need VOR navigation to get there, or as part of that approach.

What records must be kept concerning VOR checks?

What records must be kept concerning VOR checks? Each person making a VOR check shall enter the date, place and bearing error, and sign the aircraft log or other reliable record. Where can a pilot find the location of airborne checkpoints, ground checkpoints, and VOT testing stations”? They are published in the AFD.

Can GPS replace VOR?

When a VOR is decommissioned, it is replaced with a GPS based intersection and GPS based airways. For most of us, the effect will be minimal. Only the rare GA aircraft that is still navigating solely by VORs will see an impact—and that is still years away.

Is ILS going away?

The FAA will likely cut 200-plus ILS approaches over the next five years. After more than 80 years of robust service, it’s the beginning of the end for ILS. Fred Simonds, CFII, has gone over to the dark side and now cherishes those newfangled LPVs.

Is ILS being phased out?

FAA does not anticipate phasing out any CAT II or III ILS systems. The NAS includes more than 1,300 NDBs. Fewer than 300 are owned by the Federal Government; the rest are non-Federal facilities owned predominately by state, municipal, and airport authorities.

How do you determine the time and distance from a VOR station?

Divide the time it took (in seconds) by the number of degrees of change, and you get the time to the VOR: 120 seconds (2 minutes) / 10 = 12 Minutes to the VOR station. This surely would be handy back in the day before the advent of the GPS.

How do you calculate DME distance?

Distance calculation The distance formula, distance = rate * time, is used by the DME receiver to calculate its distance from the DME ground station. The rate in the calculation is the velocity of the radio pulse, which is the speed of light (roughly 300,000,000 m/s or 186,000 mi/s).

What is IFR and VFR?

VFR stands for Visual Flight Rules, and IFR stands for Instrument Flight Rules. VFR and IFR are the two different sets of rules for piloting an aircraft. Pilots use these terms in all sorts of ways, from the type of airplane they’re operating to the weather at the airport.

What is the difference between bearing and radial?

The difference is that a bearing is a magnetic heading to the station. A radial is a heading broadcast from the station. An airplane flying a heading of 180 towards a VOR is on the 180 bearing but the 360 radial.

How do you read VOR radials?

Fly the direction of the desired radial. Set the radial’s direction into the OBS and turn the aircraft to fly that heading. Once established on the heading, note the position of the CDI. If it is to the right, your radial is to the right. Likewise, if it is left, the radial is left.

What is OBS VOR?

The OBS is a selector knob on a navigational radio. It stands for the “Omni-Bearing Selector,” and it enables a pilot to select which direction they wish to fly towards or away from a VOR navigational beacon or GPS waypoint.
